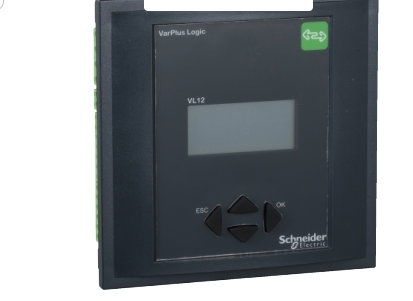

VARPLUS LOGIC N POWER

Description

Main - VPL06N range VarPlus product name VarPlus Logic device short name VPL6 product or component type Power factor controller Complementary number of step output contacts 6 [Us] rated supply voltage 90...550 V AC<= 999 kV AC with external VT measurement current 0…5 A measurement voltage 90…550 V AC 50/60 Hz operating mode Manual or automatic number of quadrant operation for generator application 4 device connection Communication protocol: Modbus interface: RS485 input function Switch: 1 x dry contact colour code Front: dark grey RAL 7016 display type Backlit LCD display size 56 x 25 mm function available Automatic detectionAdvanced programming (expert)Manual programmingAny step sequenceAutomatic initialisation metering type Power factor and displacement PF (signed, four quadrant)Total current harmonic distortion THD (I)Power factor average over lifetimeTemperature maximumPhase current I1, I2, I3 RMS on loadActive power P, P1, P2, P3 on loadReactive power Q, Q1, Q2, Q3 on loadApparent power S, S1, S2, S3 on loadVoltage U21, U32, U13, V1, V2, V3 on load type of measurement Ambient temperature inside the cubicleTan φIndividual voltage harmonicCos φOperating timePower factorCapacitor current overload Irms/I1 information displayed Number of switching cycles per stepRemaining step capacity in %Individual step size in kVAr type of alarms Step power loss (< 75 %) / Action: message and alarm contact + step blockedStep faulty / Action: message and alarm contact + step blockedHigh current (> 6 A CT) / Action: message and alarm contactHunting (unstable regulation) / Action: message and alarm contact + step blockedLow current (< 15 mA CT) / Action: message and alarm contactOvercompensation / Action: message and alarm contactCapacitor current overload (Irms/I1) (> 130 % I1) / Action: message and alarm contact + step switched offOvertemperature (50 °C) / Action: message and alarm contact + step switched offOvertemperature (30 °C) / Action: fan switchOvervoltage (+/- 10 %) / Action: message and alarm contact + control stoppedTotal harmonic distortion (> 7 %) / Action: message and alarm contact + step switched off data recording 5 alarms Operational Hours alarm 100000 h without maintenance Operational counter alarm 65000 cycles without maintenance input type Insensitive to phase rotation polarityInsensitive to CT polarityPhase to neutralCurrent input CT...X/5 A and X/1 APhase to phase output type Control relay: 0.2 A 110 V DCControl relay: 1 A 48 V DCControl relay: 2 A 400 V AC 50/60 HzControl relay: 1 A 24 V DCControl relay: 5 A 250 V AC 50/60 HzControl relay: 5 A 120 V AC 50/60 HzFan: 5 A 250 V AC 50/60 HzFan: 1 A 48 V DCAlarm relay: 5 A 250 V AC 50/60 HzAlarm relay: 1 A 48 V DC Maximum at the common terminal 10 A settings operating mode ManualAutomatic type of setting Choice of stepping programs: autoChoice of stepping programs: LIFOChoice of stepping programs: linearDelay between 2 successive switch on the same step: 5...1200 sStep configuration programming: autoStep configuration programming: offStep configuration programming: fixedTarget cos phi: 0.7 inductive...0.7 capacitiveTarget cos phi: dual cos φ measurement accuracy Voltage +/- 1 %Current +/- 1 %Frequency +/- 1 %Energy (P,Q,S) +/- 2 %Cos φ +/- 2 %Total voltage harmonic distortion THD (U) +/- 2 %Individual voltage harmonic +/- 3 %Temperature +/- 3 °C time delay range 1...6500 s (on reconnection)1...6500 s (on response) provided equipment User manual mounting mode Flush-mounted mounting support Panel - thickness: 1…3 mm mounting location In cabinet cut-out dimensions 138 x 138 mm height 144 mm width 144 mm depth 58 mm net weight 0.6 kg Main - VPL12N range VarPlus product name VarPlus Logic device short name VPL12 product or component type Power factor controller Complementary number of step output contacts 12 [Us] rated supply voltage 90...550 V AC<= 999 kV AC with external VT measurement current 0…5 A measurement voltage 90…550 V AC 50/60 Hz operating mode Manual or automatic number of quadrant operation for generator application 4 device connection Communication protocol: Modbus interface: RS485 input function Switch: 1 x dry contact colour code Front: dark grey RAL 7016 display type Backlit LCD display size 56 x 25 mm function available Manual programmingAutomatic initialisationAutomatic detectionAdvanced programming (expert)Any step sequence metering type Power factor and displacement PF (signed, four quadrant)Total current harmonic distortion THD (I)Power factor average over lifetimeTemperature maximumPhase current I1, I2, I3 RMS on loadActive power P, P1, P2, P3 on loadReactive power Q, Q1, Q2, Q3 on loadApparent power S, S1, S2, S3 on loadVoltage U21, U32, U13, V1, V2, V3 on load type of measurement Capacitor current overload Irms/I1Individual voltage harmonicPower factorOperating timeCos φAmbient temperature inside the cubicleTan φ information displayed Number of switching cycles per stepIndividual step size in kVArRemaining step capacity in % type of alarms Step power loss (< 75 %) / Action: message and alarm contact + step blockedStep faulty / Action: message and alarm contact + step blockedHigh current (> 6 A CT) / Action: message and alarm contactHunting (unstable regulation) / Action: message and alarm contact + step blockedLow current (< 15 mA CT) / Action: message and alarm contactOvercompensation / Action: message and alarm contactCapacitor current overload (Irms/I1) (> 130 % I1) / Action: message and alarm contact + step switched offOvertemperature (50 °C) / Action: message and alarm contact + step switched offOvertemperature (30 °C) / Action: fan switchOvervoltage (+/- 10 %) / Action: message and alarm contact + control stoppedTotal harmonic distortion (> 7 %) / Action: message and alarm contact + step switched off data recording 5 alarms Operational Hours alarm 100000 h without maintenance Operational counter alarm 65000 cycles without maintenance input type Phase to phasePhase to neutralInsensitive to CT polarityInsensitive to phase rotation polarityCurrent input CT...X/5 A and X/1 A output type Control relay: 0.2 A 110 V DCControl relay: 1 A 48 V DCControl relay: 2 A 400 V AC 50/60 HzControl relay: 1 A 24 V DCControl relay: 5 A 250 V AC 50/60 HzControl relay: 5 A 120 V AC 50/60 HzFan: 5 A 250 V AC 50/60 HzFan: 1 A 48 V DCAlarm relay: 5 A 250 V AC 50/60 HzAlarm relay: 1 A 48 V DC Maximum at the common terminal 10 A settings operating mode AutomaticManual type of setting Choice of stepping programs: autoChoice of stepping programs: LIFOChoice of stepping programs: linearDelay between 2 successive switch on the same step: 5...1200 sStep configuration programming: autoStep configuration programming: offStep configuration programming: fixedTarget cos phi: 0.7 inductive...0.7 capacitiveTarget cos phi: dual cos φ measurement accuracy Voltage +/- 1 %Current +/- 1 %Frequency +/- 1 %Energy (P,Q,S) +/- 2 %Cos φ +/- 2 %Total voltage harmonic distortion THD (U) +/- 2 %Individual voltage harmonic +/- 3 %Temperature +/- 3 °C time delay range 1...6500 s (on reconnection)1...6500 s (on response) provided equipment User manual mounting mode Flush-mounted mounting support Panel - thickness: 1…3 mm mounting location In cabinet cut-out dimensions 138 x 138 mm height 144 mm width 144 mm depth 58 mm net weight 0.6 kg
