VarPlus Can Capacitors

Description

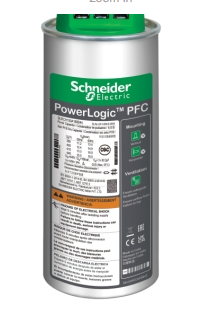

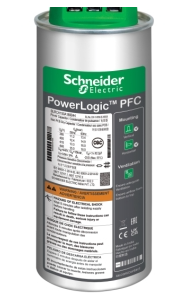

Main - BLRCH106A127B52 range of product VarPlus Can product or component type Heavy duty capacitor network frequency 50/60 Hz series name HDuty network harmonic content <= 20 % Electrical parameters 10.6 kvar 525 V 50 Hz12.7 kvar 525 V 60 Hz maximum permissible voltage 1.1 x Un (8 hours over 24 hours) continuous overcurrent capacity 1.8 x In rated voltage 525 V AC 50/60 Hz Complementary dielectric losses < 0.2 W/kvar power losses < 0.5 W/kVAr capacitance tolerance - 5 % to 10 % voltage test 2.15 x Un AC between terminals for 10 s<= 660 V - 3 kV AC between terminal and container for 10 s>= 660 V - 6 kV AC between terminal and container for 10 s inrush current 250 x In maximum switching operation per year 7000 service life in hours 130000 h dielectric material Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) impregnation material Non-PCB dry PUR resinBiodegradable type of installation Indoor installation connections - terminals ClampTite terminal mounting mode Upright/horizontal diameter 75 mm height 233 mm net weight 1.2 kg Main - BLRCH170A204B48 range of product VarPlus Can product or component type Heavy duty capacitor network frequency 50/60 Hz series name HDuty network harmonic content <= 20 % Electrical parameters 17 kvar 480 V 50 Hz20.4 kvar 480 V 60 Hz maximum permissible voltage 1.1 x Un (8 hours over 24 hours) continuous overcurrent capacity 1.8 x In rated voltage 480 V AC 50/60 Hz Complementary dielectric losses < 0.2 W/kvar power losses < 0.5 W/kVAr capacitance tolerance - 5 % to 10 % voltage test 2.15 x Un AC between terminals for 10 s<= 660 V - 3 kV AC between terminal and container for 10 s>= 660 V - 6 kV AC between terminal and container for 10 s inrush current 250 x In maximum switching operation per year 7000 service life in hours 130000 h dielectric material Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) impregnation material Non-PCB dry PUR resinBiodegradable type of installation Indoor installation connections - terminals ClampTite terminal mounting mode Upright/horizontal diameter 90 mm height 242 mm net weight 1.6 kg Main - BLRCH200A240B52 range of product VarPlus Can product or component type Heavy duty capacitor network frequency 50/60 Hz series name HDuty network harmonic content <= 20 % Electrical parameters 20 kvar 525 V 50 Hz24 kvar 525 V 60 Hz maximum permissible voltage 1.1 x Un (8 hours over 24 hours) continuous overcurrent capacity 1.8 x In rated voltage 525 V AC 50/60 Hz Complementary dielectric losses < 0.2 W/kvar power losses < 0.5 W/kVAr capacitance tolerance - 5 % to 10 % voltage test 2.15 x Un AC between terminals for 10 s<= 660 V - 3 kV AC between terminal and container for 10 s>= 660 V - 6 kV AC between terminal and container for 10 s inrush current 250 x In maximum switching operation per year 7000 service life in hours 130000 h dielectric material Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) impregnation material Non-PCB dry PUR resinBiodegradable type of installation Indoor installation connections - terminals ClampTite terminal mounting mode Upright/horizontal diameter 116 mm height 242 mm net weight 2.5 kg Main - BLRCH228A407B48 range of product VarPlus Can product or component type Heavy duty capacitor network frequency 50/60 Hz series name HDuty network harmonic content <= 20 % Electrical parameters 33.9 kvar 480 V 50 Hz40.7 kvar 480 V 60 Hz maximum permissible voltage 1.1 x Un (8 hours over 24 hours) continuous overcurrent capacity 1.8 x In rated voltage 480 V AC 50/60 Hz Complementary dielectric losses < 0.2 W/kvar power losses < 0.5 W/kVAr capacitance tolerance - 5 % to 10 % voltage test 2.15 x Un AC between terminals for 10 s<= 660 V - 3 kV AC between terminal and container for 10 s>= 660 V - 6 kV AC between terminal and container for 10 s inrush current 250 x In maximum switching operation per year 7000 service life in hours 130000 h dielectric material Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) impregnation material Non-PCB dry PUR resinBiodegradable type of installation Indoor installation connections - terminals Stud terminals mounting mode Upright/horizontal diameter 116 mm height 321 mm net weight 4.1 kg
