Units 415V Line Voltage
SKU: bc-653
$1,180.11
Currently out of stock — contact us for lead times
Description

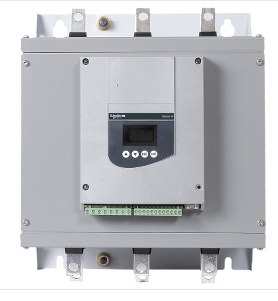

Main - ATS48D17Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 7.5 kW at 230 V connection to the motor delta terminals for standard applications7.5 kW at 400 V connection in the motor supply line for standard applications11 kW at 400 V connection to the motor delta terminals for severe applications15 kW at 400 V connection to the motor delta terminals for standard applications3 kW at 230 V connection in the motor supply line for severe applications4 kW at 230 V connection in the motor supply line for standard applications5.5 kW at 230 V connection to the motor delta terminals for severe applications5.5 kW at 400 V connection in the motor supply line for severe applications power dissipation in W 46 W for severe applications59 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 17 A for connection in the motor supply line for severe applications17 A for connection in the motor supply line for standard applications29 A for connection to the motor delta terminals for severe applications29 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 275 mm width 160 mm depth 190 mm net weight 4.9 kg Motor power range AC-3 7…11 kW at 200…240 V 3 phases7…11 kW at 380…440 V 3 phases15…25 kW at 380…440 V 3 phases2.2…3 kW at 200…240 V 3 phases4…6 kW at 200…240 V 3 phases4…6 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48D22Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 7.5 kW at 230 V connection to the motor delta terminals for severe applications7.5 kW at 400 V connection in the motor supply line for severe applications9 kW at 230 V connection to the motor delta terminals for standard applications11 kW at 400 V connection in the motor supply line for standard applications15 kW at 400 V connection to the motor delta terminals for severe applications18.5 kW at 400 V connection to the motor delta terminals for standard applications4 kW at 230 V connection in the motor supply line for severe applications5.5 kW at 230 V connection in the motor supply line for standard applications power dissipation in W 59 W for severe applications74 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 22 A for connection in the motor supply line for severe applications22 A for connection in the motor supply line for standard applications38 A for connection to the motor delta terminals for severe applications38 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 275 mm width 160 mm depth 190 mm net weight 4.9 kg Motor power range AC-3 7…11 kW at 200…240 V 3 phases7…11 kW at 380…440 V 3 phases15…25 kW at 380…440 V 3 phases4…6 kW at 200…240 V 3 phases motor starter type Soft starter Main - ATS48D32Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 7.5 kW at 230 V connection in the motor supply line for standard applications9 kW at 230 V connection to the motor delta terminals for severe applications11 kW at 400 V connection in the motor supply line for severe applications15 kW at 230 V connection to the motor delta terminals for standard applications15 kW at 400 V connection in the motor supply line for standard applications18.5 kW at 400 V connection to the motor delta terminals for severe applications22 kW at 400 V connection to the motor delta terminals for standard applications5.5 kW at 230 V connection in the motor supply line for severe applications power dissipation in W 104 W for standard applications74 W for severe applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 32 A for connection in the motor supply line for severe applications32 A for connection in the motor supply line for standard applications55 A for connection to the motor delta terminals for severe applications55 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection In the motor supply lineTo the motor delta terminals discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 275 mm width 160 mm depth 190 mm net weight 4.9 kg Motor power range AC-3 15…25 kW at 200…240 V 3 phases7…11 kW at 200…240 V 3 phases7…11 kW at 380…440 V 3 phases15…25 kW at 380…440 V 3 phases4…6 kW at 200…240 V 3 phases motor starter type Soft starter Main - ATS48D38Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 7.5 kW at 230 V connection in the motor supply line for severe applications9 kW at 230 V connection in the motor supply line for standard applications15 kW at 230 V connection to the motor delta terminals for severe applications15 kW at 400 V connection in the motor supply line for severe applications18.5 kW at 230 V connection to the motor delta terminals for standard applications18.5 kW at 400 V connection in the motor supply line for standard applications22 kW at 400 V connection to the motor delta terminals for severe applications30 kW at 400 V connection to the motor delta terminals for standard applications power dissipation in W 116 W for standard applications99 W for severe applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 38 A for connection in the motor supply line for severe applications38 A for connection in the motor supply line for standard applications66 A for connection to the motor delta terminals for severe applications66 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 275 mm width 160 mm depth 190 mm net weight 4.9 kg Motor power range AC-3 15…25 kW at 200…240 V 3 phases30…50 kW at 380…440 V 3 phases7…11 kW at 200…240 V 3 phases15…25 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48D47Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 9 kW at 230 V connection in the motor supply line for severe applications11 kW at 230 V connection in the motor supply line for standard applications18.5 kW at 230 V connection to the motor delta terminals for severe applications18.5 kW at 400 V connection in the motor supply line for severe applications22 kW at 230 V connection to the motor delta terminals for standard applications22 kW at 400 V connection in the motor supply line for standard applications30 kW at 400 V connection to the motor delta terminals for severe applications45 kW at 400 V connection to the motor delta terminals for standard applications power dissipation in W 116 W for severe applications142 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 47 A for connection in the motor supply line for severe applications47 A for connection in the motor supply line for standard applications81 A for connection to the motor delta terminals for severe applications81 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 275 mm width 160 mm depth 190 mm net weight 4.9 kg Motor power range AC-3 15…25 kW at 200…240 V 3 phases30…50 kW at 380…440 V 3 phases7…11 kW at 200…240 V 3 phases15…25 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48D62Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 55 kW at 400 V connection to the motor delta terminals for standard applications11 kW at 230 V connection in the motor supply line for severe applications15 kW at 230 V connection in the motor supply line for standard applications22 kW at 230 V connection to the motor delta terminals for severe applications22 kW at 400 V connection in the motor supply line for severe applications30 kW at 230 V connection to the motor delta terminals for standard applications30 kW at 400 V connection in the motor supply line for standard applications45 kW at 400 V connection to the motor delta terminals for severe applications power dissipation in W 153 W for severe applications201 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 62 A for connection in the motor supply line for standard applications62 A for connection in the motor supply line for severe applications107 A for connection to the motor delta terminals for standard applications107 A for connection to the motor delta terminals for severe applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 290 mm width 190 mm depth 235 mm net weight 8.3 kg Motor power range AC-3 15…25 kW at 200…240 V 3 phases30…50 kW at 200…240 V 3 phases30…50 kW at 380…440 V 3 phases55…100 kW at 380…440 V 3 phases7…11 kW at 200…240 V 3 phases15…25 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48D75Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 55 kW at 400 V connection to the motor delta terminals for standard applications55 kW at 400 V connection to the motor delta terminals for severe applications15 kW at 230 V connection in the motor supply line for severe applications18.5 kW at 230 V connection in the motor supply line for standard applications30 kW at 230 V connection to the motor delta terminals for severe applications30 kW at 400 V connection in the motor supply line for severe applications37 kW at 230 V connection to the motor delta terminals for standard applications37 kW at 400 V connection in the motor supply line for standard applications power dissipation in W 201 W for severe applications245 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 75 A for connection in the motor supply line for severe applications75 A for connection in the motor supply line for standard applications130 A for connection to the motor delta terminals for severe applications130 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 290 mm width 190 mm depth 235 mm net weight 8.3 kg Motor power range AC-3 15…25 kW at 200…240 V 3 phases30…50 kW at 200…240 V 3 phases30…50 kW at 380…440 V 3 phases55…100 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48D88Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 55 kW at 400 V connection to the motor delta terminals for severe applications75 kW at 400 V connection to the motor delta terminals for standard applications18.5 kW at 230 V connection in the motor supply line for severe applications22 kW at 230 V connection in the motor supply line for standard applications37 kW at 230 V connection to the motor delta terminals for severe applications37 kW at 400 V connection in the motor supply line for severe applications45 kW at 230 V connection to the motor delta terminals for standard applications45 kW at 400 V connection in the motor supply line for standard applications power dissipation in W 245 W for severe applications290 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 88 A for connection in the motor supply line for severe applications88 A for connection in the motor supply line for standard applications152 A for connection to the motor delta terminals for severe applications152 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 290 mm width 190 mm depth 235 mm net weight 8.3 kg Motor power range AC-3 15…25 kW at 200…240 V 3 phases30…50 kW at 200…240 V 3 phases30…50 kW at 380…440 V 3 phases55…100 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48C11Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 55 kW at 230 V connection to the motor delta terminals for standard applications55 kW at 400 V connection in the motor supply line for standard applications75 kW at 400 V connection to the motor delta terminals for severe applications90 kW at 400 V connection to the motor delta terminals for standard applications22 kW at 230 V connection in the motor supply line for severe applications30 kW at 230 V connection in the motor supply line for standard applications45 kW at 230 V connection to the motor delta terminals for severe applications45 kW at 400 V connection in the motor supply line for severe applications power dissipation in W 252 W for severe applications322 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 110 A for connection in the motor supply line for standard applications110 A for connection in the motor supply line for severe applications191 A for connection to the motor delta terminals for standard applications191 A for connection to the motor delta terminals for severe applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 290 mm width 190 mm depth 235 mm net weight 8.3 kg Motor power range AC-3 15…25 kW at 200…240 V 3 phases30…50 kW at 200…240 V 3 phases30…50 kW at 380…440 V 3 phases55…100 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48C14Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 55 kW at 230 V connection to the motor delta terminals for severe applications55 kW at 400 V connection in the motor supply line for severe applications75 kW at 230 V connection to the motor delta terminals for standard applications75 kW at 400 V connection in the motor supply line for standard applications90 kW at 400 V connection to the motor delta terminals for severe applications110 kW at 400 V connection to the motor delta terminals for standard applications30 kW at 230 V connection in the motor supply line for severe applications37 kW at 230 V connection in the motor supply line for standard applications power dissipation in W 306 W for severe applications391 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 140 A for connection in the motor supply line for severe applications140 A for connection in the motor supply line for standard applications242 A for connection to the motor delta terminals for severe applications242 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 340 mm width 200 mm depth 265 mm net weight 12.4 kg Motor power range AC-3 30…50 kW at 200…240 V 3 phases55…100 kW at 380…440 V 3 phases55…100 kW at 200…240 V 3 phases110…220 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48C17Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 75 kW at 230 V connection to the motor delta terminals for severe applications75 kW at 400 V connection in the motor supply line for severe applications90 kW at 230 V connection to the motor delta terminals for standard applications90 kW at 400 V connection in the motor supply line for standard applications110 kW at 400 V connection to the motor delta terminals for severe applications132 kW at 400 V connection to the motor delta terminals for standard applications37 kW at 230 V connection in the motor supply line for severe applications45 kW at 230 V connection in the motor supply line for standard applications power dissipation in W 391 W for severe applications479 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 170 A for connection in the motor supply line for severe applications170 A for connection in the motor supply line for standard applications294 A for connection to the motor delta terminals for severe applications294 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 340 mm width 200 mm depth 265 mm net weight 12.4 kg Motor power range AC-3 30…50 kW at 200…240 V 3 phases55…100 kW at 380…440 V 3 phases55…100 kW at 200…240 V 3 phases110…220 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48C21Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 55 kW at 230 V connection in the motor supply line for standard applications90 kW at 230 V connection to the motor delta terminals for severe applications90 kW at 400 V connection in the motor supply line for severe applications110 kW at 230 V connection to the motor delta terminals for standard applications110 kW at 400 V connection in the motor supply line for standard applications132 kW at 400 V connection to the motor delta terminals for severe applications160 kW at 400 V connection to the motor delta terminals for standard applications45 kW at 230 V connection in the motor supply line for severe applications power dissipation in W 468 W for severe applications580 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 210 A for connection in the motor supply line for severe applications210 A for connection in the motor supply line for standard applications364 A for connection to the motor delta terminals for severe applications364 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 380 mm width 320 mm depth 265 mm net weight 18.2 kg Motor power range AC-3 30…50 kW at 200…240 V 3 phases55…100 kW at 380…440 V 3 phases55…100 kW at 200…240 V 3 phases110…220 kW at 380…440 V 3 phases110…220 kW at 200…240 V 3 phases motor starter type Soft starter Main - ATS48C25Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 55 kW at 230 V connection in the motor supply line for severe applications75 kW at 230 V connection in the motor supply line for standard applications110 kW at 230 V connection to the motor delta terminals for severe applications110 kW at 400 V connection in the motor supply line for severe applications132 kW at 230 V connection to the motor delta terminals for standard applications132 kW at 400 V connection in the motor supply line for standard applications160 kW at 400 V connection to the motor delta terminals for severe applications220 kW at 400 V connection to the motor delta terminals for standard applications power dissipation in W 580 W for severe applications695 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 250 A for connection in the motor supply line for severe applications250 A for connection in the motor supply line for standard applications433 A for connection to the motor delta terminals for severe applications433 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 380 mm width 320 mm depth 265 mm net weight 18.2 kg Motor power range AC-3 55…100 kW at 200…240 V 3 phases110…220 kW at 380…440 V 3 phases110…220 kW at 200…240 V 3 phases motor starter type Soft starter Main - ATS48C32Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 75 kW at 230 V connection in the motor supply line for severe applications90 kW at 230 V connection in the motor supply line for standard applications132 kW at 230 V connection to the motor delta terminals for severe applications132 kW at 400 V connection in the motor supply line for severe applications160 kW at 230 V connection to the motor delta terminals for standard applications160 kW at 400 V connection in the motor supply line for standard applications220 kW at 400 V connection to the motor delta terminals for severe applications250 kW at 400 V connection to the motor delta terminals for standard applications power dissipation in W 695 W for severe applications902 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 320 A for connection in the motor supply line for severe applications320 A for connection in the motor supply line for standard applications554 A for connection to the motor delta terminals for severe applications554 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection In the motor supply lineTo the motor delta terminals discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 380 mm width 320 mm depth 265 mm net weight 18.2 kg Motor power range AC-3 55…100 kW at 200…240 V 3 phases110…220 kW at 380…440 V 3 phases110…220 kW at 200…240 V 3 phases250…500 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS4841Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 90 kW at 230 V connection in the motor supply line for severe applications110 kW at 230 V connection in the motor supply line for standard applications160 kW at 230 V connection to the motor delta terminals for severe applications160 kW at 400 V connection in the motor supply line for severe applications220 kW at 230 V connection to the motor delta terminals for standard applications220 kW at 400 V connection in the motor supply line for standard applications250 kW at 400 V connection to the motor delta terminals for severe applications315 kW at 400 V connection to the motor delta terminals for standard applications power dissipation in W 1017 W for severe applications1339 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 410 A for connection in the motor supply line for severe applications410 A for connection in the motor supply line for standard applications710 A for connection to the motor delta terminals for severe applications710 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection In the motor supply lineTo the motor delta terminals discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 670 mm width 400 mm depth 300 mm net weight 51.4 kg Motor power range AC-3 55…100 kW at 200…240 V 3 phases110…220 kW at 380…440 V 3 phases110…220 kW at 200…240 V 3 phases250…500 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48C48Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 110 kW at 230 V connection in the motor supply line for severe applications132 kW at 230 V connection in the motor supply line for standard applications220 kW at 230 V connection to the motor delta terminals for severe applications220 kW at 400 V connection in the motor supply line for severe applications250 kW at 230 V connection to the motor delta terminals for standard applications250 kW at 400 V connection in the motor supply line for standard applications315 kW at 400 V connection to the motor delta terminals for severe applications355 kW at 400 V connection to the motor delta terminals for standard applications power dissipation in W 1172 W for severe applications1386 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 480 A for connection in the motor supply line for severe applications480 A for connection in the motor supply line for standard applications831 A for connection to the motor delta terminals for severe applications831 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 670 mm width 400 mm depth 300 mm net weight 51.4 kg Motor power range AC-3 110…220 kW at 380…440 V 3 phases110…220 kW at 200…240 V 3 phases250…500 kW at 380…440 V 3 phases250…500 kW at 200…240 V 3 phases motor starter type Soft starter Main - ATS48C59Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 132 kW at 230 V connection in the motor supply line for severe applications160 kW at 230 V connection in the motor supply line for standard applications250 kW at 230 V connection to the motor delta terminals for severe applications250 kW at 400 V connection in the motor supply line for severe applications315 kW at 400 V connection in the motor supply line for standard applications355 kW at 400 V connection to the motor delta terminals for severe applications400 kW at 400 V connection to the motor delta terminals for standard applications power dissipation in W 1386 W for severe applications1731 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 590 A for connection in the motor supply line for standard applications590 A for connection in the motor supply line for severe applications1022 A for connection to the motor delta terminals for standard applications1022 A for connection to the motor delta terminals for severe applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 670 mm width 400 mm depth 300 mm net weight 51.4 kg Motor power range AC-3 110…220 kW at 200…240 V 3 phases250…500 kW at 380…440 V 3 phases250…500 kW at 200…240 V 3 phases motor starter type Soft starter Main - ATS48C66Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 160 kW at 230 V connection in the motor supply line for severe applications315 kW at 230 V connection to the motor delta terminals for standard applications315 kW at 400 V connection in the motor supply line for severe applications355 kW at 400 V connection in the motor supply line for standard applications400 kW at 400 V connection to the motor delta terminals for severe applications500 kW at 400 V connection to the motor delta terminals for standard applications power dissipation in W 1731 W for standard applications1958 W for severe applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 660 A for connection in the motor supply line for severe applications660 A for connection in the motor supply line for standard applications1143 A for connection to the motor delta terminals for standard applications1143 A for connection to the motor delta terminals for severe applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 670 mm width 400 mm depth 300 mm net weight 51.4 kg Motor power range AC-3 110…220 kW at 200…240 V 3 phases250…500 kW at 380…440 V 3 phases250…500 kW at 200…240 V 3 phases motor starter type Soft starter Main - ATS48C79Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 630 kW at 400 V connection to the motor delta terminals for standard applications220 kW at 230 V connection in the motor supply line for standard applications315 kW at 230 V connection to the motor delta terminals for severe applications355 kW at 230 V connection to the motor delta terminals for standard applications355 kW at 400 V connection in the motor supply line for severe applications400 kW at 400 V connection in the motor supply line for standard applications500 kW at 400 V connection to the motor delta terminals for severe applications power dissipation in W 2073 W for standard applications2537 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 790 A for connection in the motor supply line for standard applications790 A for connection in the motor supply line for severe applications1368 A for connection to the motor delta terminals for standard applications1368 A for connection to the motor delta terminals for severe applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection In the motor supply lineTo the motor delta terminals discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 890 mm width 770 mm depth 315 mm net weight 115 kg Motor power range AC-3 110…220 kW at 200…240 V 3 phases250…500 kW at 380…440 V 3 phases250…500 kW at 200…240 V 3 phases560…900 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48M10Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 630 kW at 400 V connection to the motor delta terminals for severe applications710 kW at 400 V connection to the motor delta terminals for standard applications220 kW at 230 V connection in the motor supply line for severe applications250 kW at 230 V connection in the motor supply line for standard applications355 kW at 230 V connection to the motor delta terminals for severe applications400 kW at 400 V connection in the motor supply line for severe applications500 kW at 400 V connection in the motor supply line for standard applications power dissipation in W 2225 W for severe applications2865 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 1000 A for connection in the motor supply line for standard applications1000 A for connection in the motor supply line for severe applications1732 A for connection to the motor delta terminals for standard applications1732 A for connection to the motor delta terminals for severe applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection To the motor delta terminalsIn the motor supply line discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 890 mm width 770 mm depth 315 mm net weight 115 kg Motor power range AC-3 110…220 kW at 200…240 V 3 phases250…500 kW at 380…440 V 3 phases250…500 kW at 200…240 V 3 phases560…900 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS48M12Q range of product Altistart 48 product or component type Soft starter product destination Asynchronous motors product specific application Heavy duty industry and pumps device short name ATS48 power supply voltage 230...415 V - 15...10 % motor power kW 630 kW at 400 V connection in the motor supply line for standard applications710 kW at 400 V connection to the motor delta terminals for severe applications250 kW at 230 V connection in the motor supply line for severe applications355 kW at 230 V connection in the motor supply line for standard applications500 kW at 230 V connection to the motor delta terminals for standard applications500 kW at 400 V connection in the motor supply line for severe applications power dissipation in W 2865 W for severe applications3497 W for standard applications utilisation category AC-53A type of start Start with torque control (current limited to 5 In) Icl nominal current 1200 A for connection in the motor supply line for severe applications1200 A for connection in the motor supply line for standard applications2078 A for connection to the motor delta terminals for severe applications2078 A for connection to the motor delta terminals for standard applications Complementary assembly style With heat sink function available External bypass (optional) power supply frequency 50...60 Hz - 5...5 % power supply frequency limits 47.5...63 Hz device connection In the motor supply lineTo the motor delta terminals discrete output number 2 discrete output type (LO1) logic output 0 V common configurable(LO2) logic output 0 V common configurable(R1) relay outputs fault relay NO(R2) relay outputs end of starting relay NO(R3) relay outputs motor powered NO output absolute accuracy precision +/- 5 % minimum switching current 10 mA at 6 V DC for relay outputs maximum switching current Logic output 0.2 A at 30 V DCRelay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 msRelay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms discrete input number 5 discrete input type PTC, 750 Ohm at 25 °C(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm discrete input voltage 24 V <= 30 V discrete input logic Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA starting current 0.4...1.3 Icl adjustable analogue output type Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm communication port protocol Modbus connector type 1 RJ45 communication data link Serial physical interface RS485 multidrop transmission rate 4800, 9600 or 19200 bps max nodes number 31 protection type Phase failure: lineThermal protection: motorThermal protection: starter marking CE operating position Vertical +/- 10 degree height 890 mm width 770 mm depth 315 mm net weight 115 kg Motor power range AC-3 250…500 kW at 200…240 V 3 phases560…900 kW at 380…440 V 3 phases motor starter type Soft starter
