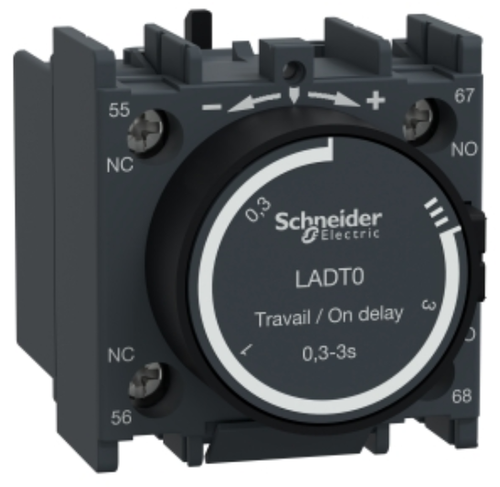

Time Delay Auxiliary Contact Block

Description

Main - LADTO range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Time delay auxiliary contact block range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 1 NO + 1 NC Contacts operation Time delay timer type On delay time delay range 0.3...3 s [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A at <= 690 V AC conforming to IEC 60947-5-1250 A at <= 690 V DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 5 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigidScrew clamp terminals tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 61 mm Environment environmental characteristic Normal environment IP degree of protection IP20 conforming to IEC 60529 protective treatment TH conforming to IEC 60068 ambient air temperature for storage -60…80 °C ambient air temperature for operation -40…70 °C operating altitude 3000 m Main - LADT2 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Time delay auxiliary contact block range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 1 NO + 1 NC Contacts operation Time delay timer type On delay time delay range 1...30 s [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A at <= 690 V AC conforming to IEC 60947-5-1250 A at <= 690 V DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 5 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigidScrew clamp terminals tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 61 mm Main - LADT4 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Time delay auxiliary contact block range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 1 NO + 1 NC Contacts operation Time delay timer type On delay time delay range 10...180 s [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A at <= 690 V AC conforming to IEC 60947-5-1250 A at <= 690 V DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 5 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigidScrew clamp terminals tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 61 mm Main - LADR0 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Time delay auxiliary contact block range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 1 NO + 1 NC Contacts operation Time delay timer type Off delay time delay range 0.3...3 s [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 5 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigidScrew clamp terminals tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 61 mm Main - LADR2 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Time delay auxiliary contact block range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 1 NO + 1 NC Contacts operation Time delay timer type Off delay time delay range 1...30 s [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A at <= 690 V AC conforming to IEC 60947-5-1250 A at <= 690 V DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 5 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigidScrew clamp terminals tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 61 mm Main - LADR4 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Time delay auxiliary contact block range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 1 NO + 1 NC Contacts operation Time delay timer type Off delay time delay range 10...180 s [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A at <= 690 V AC conforming to IEC 60947-5-1250 A at <= 690 V DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 5 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²rigidScrew clamp terminals tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 61 mm Main - LADS2 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Time delay auxiliary contact block range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D device application Star delta starter mounting location Front pole contact composition 1 NO + 1 NC Contacts operation Time delay timer type On delay time delay range 1...30 s [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A at <= 690 V AC conforming to IEC 60947-5-1250 A at <= 690 V DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 5 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigidScrew clamp terminals tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 61 mm
