TeSys SK - Add-on Auxiliary Contacts

Description

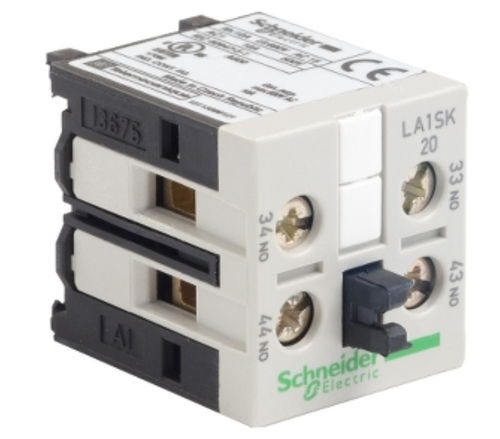

Main - LA1SK20 range TeSys device short name LA1SK product or component type Auxiliary contact block product compatibility LC1SK auxiliary contacts operation Instantaneous pole contact composition 2 NO connections - terminals Screw clamp terminals 1 cable(s) 1.5…6 mm²solidScrew clamp terminals 2 cable(s) 1.5…4 mm²solidScrew clamp terminals 1 cable(s) 0.5…6 mm²flexible with cable endScrew clamp terminals 2 cable(s) 0.35…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 0.35…6 mm²flexible without cable endScrew clamp terminals 2 cable(s) 0.35…1.5 mm²flexible without cable end Complementary mounting location Front side [Ui] rated insulation voltage 690 V conforming to IEC 60947690 V conforming to BS 5424690 V conforming to VDE 0110 group C690 V conforming to CSA C22.2 No 14 [Ue] rated operational voltage 690 V AC <= 400 Hz [Ith] conventional free air thermal current 10 A (at 55 °C) associated fuse rating 10 A gL conforming to IEC 6094710 A gL conforming to VDE 0660 tightening torque 0.8 N.m - on screw clamp terminals width 27 mm net weight 0.022 kg Main - LA1SK02 range TeSys device short name LA1SK product or component type Auxiliary contact block product compatibility LC1SK auxiliary contacts operation Instantaneous pole contact composition 2 NC connections - terminals Screw clamp terminals 1 cable(s) 1.5…6 mm²solidScrew clamp terminals 2 cable(s) 1.5…4 mm²solidScrew clamp terminals 1 cable(s) 0.5…6 mm²flexible with cable endScrew clamp terminals 2 cable(s) 0.35…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 0.35…6 mm²flexible without cable endScrew clamp terminals 2 cable(s) 0.35…1.5 mm²flexible without cable end Complementary mounting location Front side [Ui] rated insulation voltage 690 V conforming to IEC 60947690 V conforming to BS 5424690 V conforming to VDE 0110 group C690 V conforming to CSA C22.2 No 14 [Ue] rated operational voltage 690 V AC <= 400 Hz [Ith] conventional free air thermal current 10 A (at 55 °C) associated fuse rating 10 A gL conforming to IEC 6094710 A gL conforming to VDE 0660 tightening torque 0.8 N.m - on screw clamp terminals width 27 mm net weight 0.022 kg Main - LA1SK11 range TeSys device short name LA1SK product or component type Auxiliary contact block product compatibility LC1SK auxiliary contacts operation Instantaneous pole contact composition 1 NO + 1 NC connections - terminals Screw clamp terminals 1 cable(s) 1.5…6 mm²solidScrew clamp terminals 2 cable(s) 1.5…4 mm²solidScrew clamp terminals 1 cable(s) 0.5…6 mm²flexible with cable endScrew clamp terminals 2 cable(s) 0.35…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 0.35…6 mm²flexible without cable endScrew clamp terminals 2 cable(s) 0.35…1.5 mm²flexible without cable end Complementary mounting location Front side [Ui] rated insulation voltage 690 V conforming to IEC 60947690 V conforming to BS 5424690 V conforming to VDE 0110 group C690 V conforming to CSA C22.2 No 14 [Ue] rated operational voltage 690 V AC <= 400 Hz [Ith] conventional free air thermal current 10 A (at 55 °C) associated fuse rating 10 A gL conforming to IEC 6094710 A gL conforming to VDE 0660 tightening torque 0.8 N.m - on screw clamp terminals width 27 mm net weight 0.022 kg
