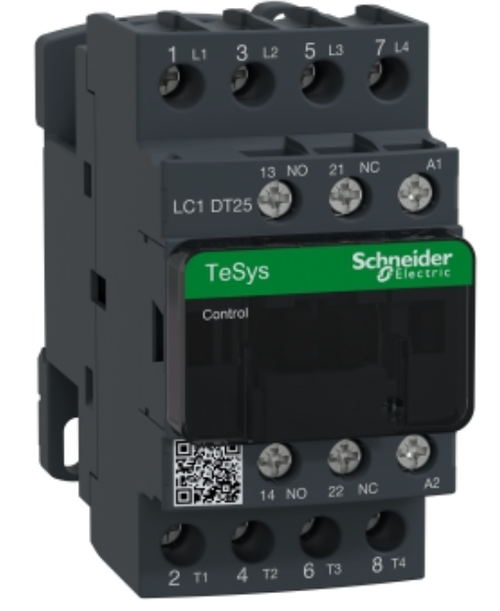

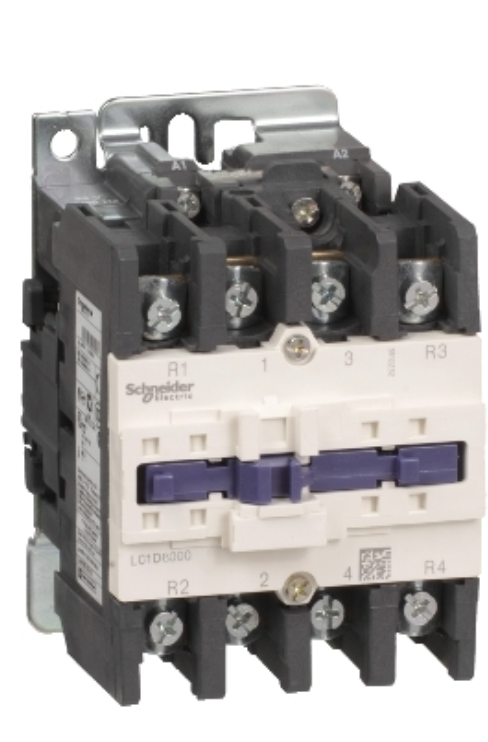

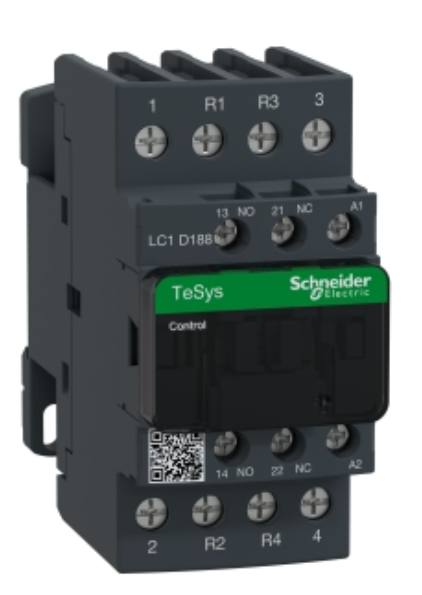

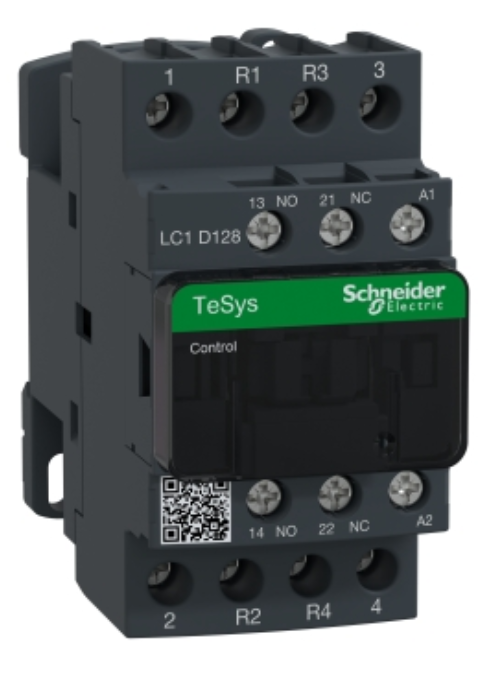

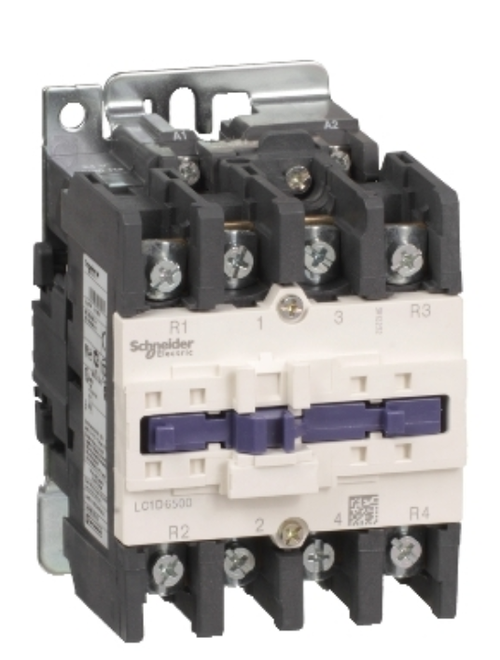

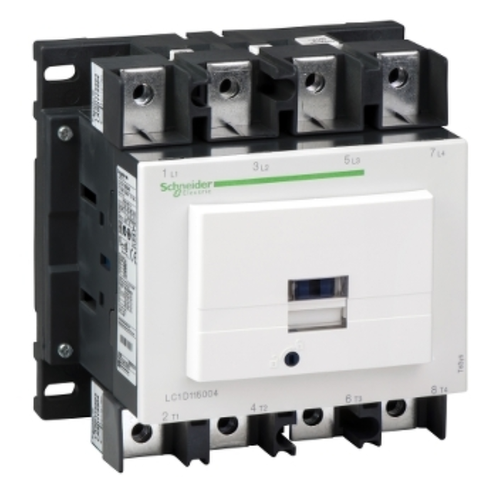

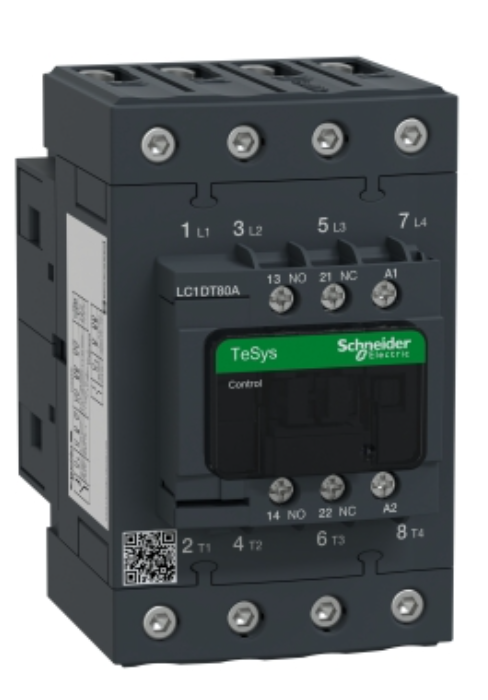

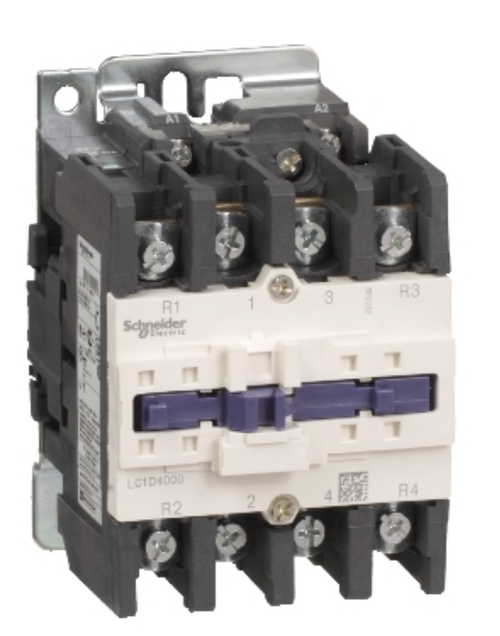

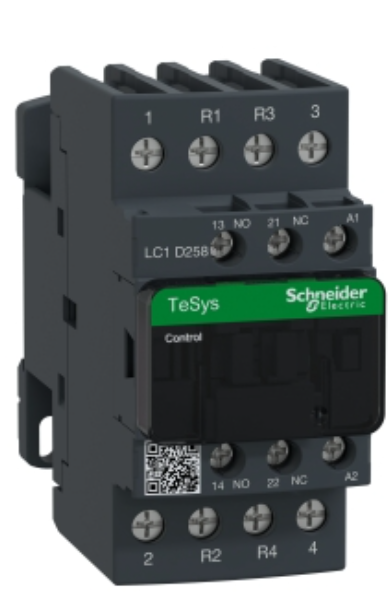

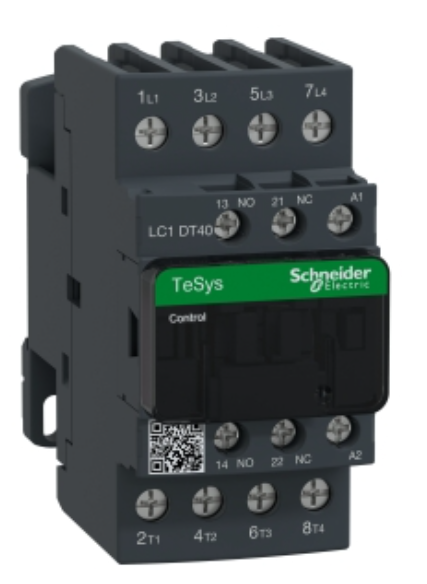

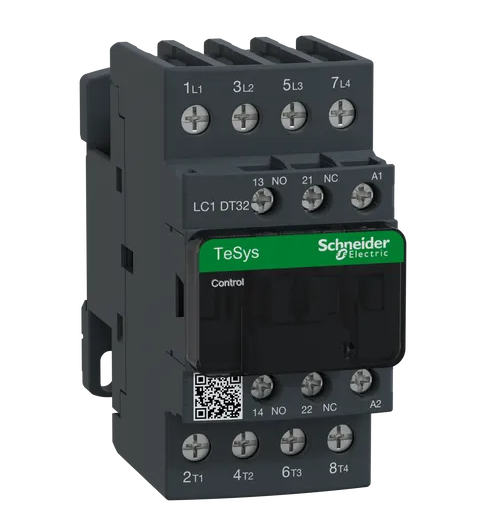

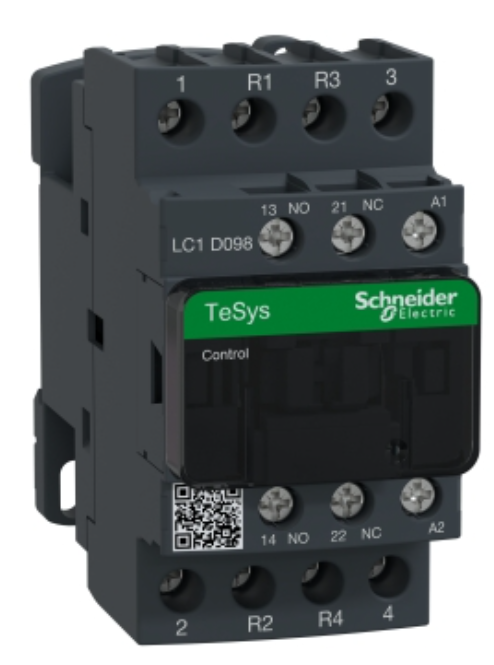

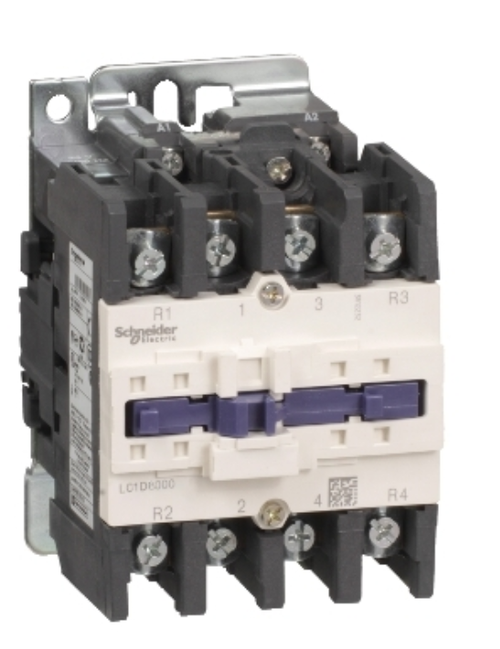

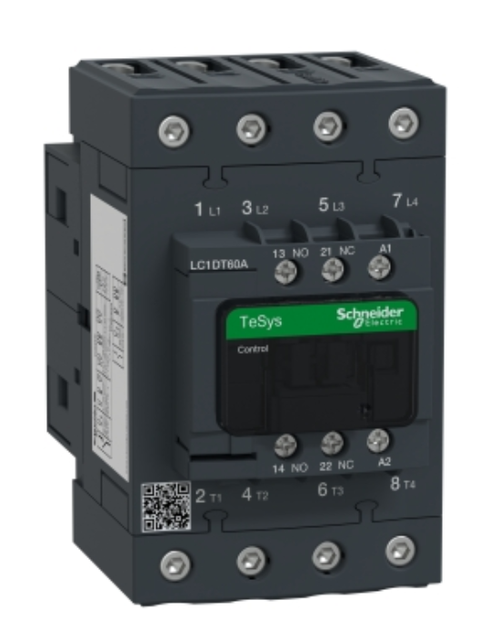

TeSys - 4-Pole Contactors , Screw Terminals

Description

Main - LC1DT20U7 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 4 NO [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 20 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz auxiliary contact composition 1 NO + 1 NC [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit20 A (at 60 °C) for power circuit Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1250 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit105 A 40 °C - 10 s for power circuit210 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-125 A gG at <= 690 V coordination type 1 for power circuit20 A gG at <= 690 V coordination type 2 for power circuit average impedance 2.5 mOhm - Ith 20 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certifiedPower circuit: 690 V conforming to IEC 60947-4-1 power dissipation per pole 1.56 W AC-1 Front cover With mounting support PlateRail standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 product certifications ULDNVRINABVLROS (Lloyds register of shipping)GOSTGLCCCCSA connections - terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endPower circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmPower circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 4...19 ms opening12...22 ms closing safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 15 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 2…3 W at 50/60 Hz auxiliary contacts type Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 signalling circuit frequency 25...400 Hz minimum switching current 5 mA for signalling circuit minimum switching voltage 17 V for signalling circuit non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact insulation resistance > 10 MOhm for signalling circuit Main - LC1DT25U7 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 4 NO [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz auxiliary contact composition 1 NO + 1 NC [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit25 A (at 60 °C) for power circuit Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1250 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit105 A 40 °C - 10 s for power circuit210 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-140 A gG at <= 690 V coordination type 1 for power circuit25 A gG at <= 690 V coordination type 2 for power circuit average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certifiedPower circuit: 690 V conforming to IEC 60947-4-1 electrical durability 0.8 Mcycles 25 A AC-1 at Ue <= 440 V power dissipation per pole 1.56 W AC-1 Front cover With mounting support PlateRail standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 product certifications GLDNVGOSTCSARINALROS (Lloyds register of shipping)BVCCCUL connections - terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endPower circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmPower circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 4...19 ms opening12...22 ms closing safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 15 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 2…3 W at 50/60 Hz auxiliary contacts type Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 signalling circuit frequency 25...400 Hz minimum switching current 5 mA for signalling circuit minimum switching voltage 17 V for signalling circuit non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact insulation resistance > 10 MOhm for signalling circuit Main - LC1DT32U7 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 4 NO [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz auxiliary contact composition 1 NO + 1 NC [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit32 A (at 60 °C) for power circuit Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1300 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 300 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 40 A 40 °C - 10 min for power circuit84 A 40 °C - 1 min for power circuit145 A 40 °C - 10 s for power circuit240 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-150 A gG at <= 690 V coordination type 1 for power circuit35 A gG at <= 690 V coordination type 2 for power circuit average impedance 2.5 mOhm - Ith 32 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certifiedPower circuit: 690 V conforming to IEC 60947-4-1 electrical durability 1 Mcycles 32 A AC-1 at Ue <= 440 V power dissipation per pole 2.5 W AC-1 Front cover With mounting support RailPlate standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 product certifications CSACCCDNVRINALROS (Lloyds register of shipping)GOSTULGLBV connections - terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: connector 1 cable(s) 2.5…10 mm²flexible without cable endPower circuit: connector 2 cable(s) 2.5…10 mm²flexible without cable endPower circuit: connector 1 cable(s) 2.5…10 mm²flexible with cable endPower circuit: connector 2 cable(s) 2.5…10 mm²flexible with cable endPower circuit: connector 1 cable(s) 2.5…16 mm²solid without cable endPower circuit: connector 2 cable(s) 2.5…16 mm²solid without cable end tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 1.7 N.m - on connector - with screwdriver flat Ø 6 mmPower circuit: 1.7 N.m - on connector - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 4...19 ms opening12...22 ms closing safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 15 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 2…3 W at 50/60 Hz auxiliary contacts type Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 signalling circuit frequency 25...400 Hz minimum switching current 5 mA for signalling circuit minimum switching voltage 17 V for signalling circuit non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact insulation resistance > 10 MOhm for signalling circuit Main - LC1DT40U7 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 4 NO [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz auxiliary contact composition 1 NO + 1 NC [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit40 A (at 60 °C) for power circuit Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1450 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 450 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 50 A 40 °C - 10 min for power circuit120 A 40 °C - 1 min for power circuit240 A 40 °C - 10 s for power circuit380 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-163 A gG at <= 690 V coordination type 1 for power circuit40 A gG at <= 690 V coordination type 2 for power circuit average impedance 2 mOhm - Ith 40 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certifiedPower circuit: 690 V conforming to IEC 60947-4-1 electrical durability 1.4 Mcycles 40 A AC-1 at Ue <= 440 V power dissipation per pole 3.2 W AC-1 Front cover With mounting support RailPlate standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 product certifications GLCCCLROS (Lloyds register of shipping)BVULRINACSAGOSTDNV connections - terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: connector 1 cable(s) 2.5…10 mm²flexible without cable endPower circuit: connector 2 cable(s) 2.5…10 mm²flexible without cable endPower circuit: connector 1 cable(s) 2.5…10 mm²flexible with cable endPower circuit: connector 2 cable(s) 2.5…10 mm²flexible with cable endPower circuit: connector 1 cable(s) 2.5…16 mm²solid without cable endPower circuit: connector 2 cable(s) 2.5…16 mm²solid without cable end tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 1.7 N.m - on connector - with screwdriver flat Ø 6 mmPower circuit: 1.7 N.m - on connector - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 4...19 ms opening12...22 ms closing safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 15 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 2…3 W at 50/60 Hz auxiliary contacts type Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 signalling circuit frequency 25...400 Hz minimum switching current 5 mA for signalling circuit minimum switching voltage 17 V for signalling circuit non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact insulation resistance > 10 MOhm for signalling circuit Main - LC1DT60AU7 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 4 NO [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz auxiliary contact composition 1 NO + 1 NC [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit60 A (at 60 °C) for power circuit Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1800 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 800 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 320 A 40 °C - 10 s for power circuit720 A 40 °C - 1 s for power circuit72 A 40 °C - 10 min for power circuit165 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-180 A gG at <= 690 V coordination type 1 for power circuit80 A gG at <= 690 V coordination type 2 for power circuit average impedance 1.6 mOhm - Ith 60 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certifiedPower circuit: 690 V conforming to IEC 60947-4-1 electrical durability 1.4 Mcycles 60 A AC-1 at Ue <= 440 V power dissipation per pole 5.8 W AC-1 Front cover With mounting support RailPlate standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 product certifications DNVRINAULBVLROS (Lloyds register of shipping)CCCCSAGOSTGL connections - terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: screw clamp terminal 1 cable(s) 1…35 mm²flexible without cable endPower circuit: screw clamp terminal 2 cable(s) 1…25 mm²flexible without cable endPower circuit: screw clamp terminal 1 cable(s) 1…35 mm²flexible with cable endPower circuit: screw clamp terminal 2 cable(s) 1…25 mm²flexible with cable endPower circuit: screw clamp terminal 1 cable(s) 1…35 mm²solid without cable endPower circuit: screw clamp terminal 2 cable(s) 1…25 mm²solid without cable end tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 8 N.m - on screw clamp terminals - cable 25…35 mm² hexagonal screw head 4 mmPower circuit: 5 N.m - on screw clamp terminals - cable 1…25 mm² hexagonal screw head 4 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 4...19 ms opening12...26 ms closing safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 6 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 140 VA 60 Hz cos phi 0.75 (at 20 °C)160 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 13 VA 60 Hz cos phi 0.3 (at 20 °C)15 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 4…5 W at 50/60 Hz auxiliary contacts type Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 signalling circuit frequency 25...400 Hz minimum switching current 5 mA for signalling circuit minimum switching voltage 17 V for signalling circuit non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact insulation resistance > 10 MOhm for signalling circuit Main - LC1DT80AU7 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 4 NO [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz auxiliary contact composition 1 NO + 1 NC [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit80 A (at 60 °C) for power circuit Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-11000 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 1000 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 520 A 40 °C - 10 s for power circuit900 A 40 °C - 1 s for power circuit110 A 40 °C - 10 min for power circuit260 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1125 A gG at <= 690 V coordination type 1 for power circuit125 A gG at <= 690 V coordination type 2 for power circuit average impedance 1.6 mOhm - Ith 80 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certifiedPower circuit: 690 V conforming to IEC 60947-4-1 electrical durability 1.4 Mcycles 80 A AC-1 at Ue <= 440 V power dissipation per pole 10.2 W AC-1 Front cover With mounting support PlateRail standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 product certifications ULCSAGLGOSTDNVLROS (Lloyds register of shipping)RINABVCCC connections - terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: screw connection 1 cable(s) 1…35 mm²flexible without cable endPower circuit: screw connection 2 cable(s) 1…25 mm²flexible without cable endPower circuit: screw connection 1 cable(s) 1…35 mm²flexible with cable endPower circuit: screw connection 2 cable(s) 1…25 mm²flexible with cable endPower circuit: screw connection 1 cable(s) 1…35 mm²solid without cable endPower circuit: screw connection 2 cable(s) 1…25 mm²solid without cable end tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 8 N.m - on screw clamp terminals - cable 25…35 mm² hexagonal screw head 4 mmPower circuit: 5 N.m - on screw clamp terminals - cable 1…25 mm² hexagonal screw head 4 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 4...19 ms opening12...26 ms closing safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 6 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 140 VA 60 Hz cos phi 0.75 (at 20 °C)160 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 13 VA 60 Hz cos phi 0.3 (at 20 °C)15 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 4…5 W at 50/60 Hz auxiliary contacts type Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 signalling circuit frequency 25...400 Hz minimum switching current 5 mA for signalling circuit minimum switching voltage 17 V for signalling circuit non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact insulation resistance > 10 MOhm for signalling circuit Main - LC1D098U7 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 2 NO + 2 NC [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 20 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz auxiliary contact composition 1 NO + 1 NC [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 25 A (at 60 °C) for power circuit10 A (at 60 °C) for signalling circuit Irms rated making capacity 250 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1 rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 105 A 40 °C - 10 s for power circuit210 A 40 °C - 1 s for power circuit30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-125 A gG at <= 690 V coordination type 1 for power circuit20 A gG at <= 690 V coordination type 2 for power circuit average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certified electrical durability 0.6 Mcycles 25 A AC-1 at Ue <= 440 V power dissipation per pole 1.56 W AC-1 Front cover With mounting support PlateRail standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 product certifications CSAGOSTDNVULRINAGLBVCCCLROS (Lloyds register of shipping)UKCA connections - terminals Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endPower circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end tightening torque Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmPower circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 12...22 ms closing4...19 ms opening safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 15 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 2…3 W at 50/60 Hz auxiliary contacts type Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 signalling circuit frequency 25...400 Hz minimum switching current 5 mA for signalling circuit minimum switching voltage 17 V for signalling circuit non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact insulation resistance > 10 MOhm for signalling circuit Main - LC1D128U7 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 2 NO + 2 NC [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz auxiliary contact composition 1 NO + 1 NC [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 25 A (at 60 °C) for power circuit10 A (at 60 °C) for signalling circuit Irms rated making capacity 250 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1 rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 105 A 40 °C - 10 s for power circuit210 A 40 °C - 1 s for power circuit30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-140 A gG at <= 690 V coordination type 1 for power circuit25 A gG at <= 690 V coordination type 2 for power circuit average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certified electrical durability 0.8 Mcycles 25 A AC-1 at Ue <= 440 V power dissipation per pole 1.56 W AC-1 Front cover With mounting support PlateRail standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 product certifications GOSTGLRINALROS (Lloyds register of shipping)CSABVCCCULDNVUKCA connections - terminals Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endPower circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end tightening torque Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmPower circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 12...22 ms closing4...19 ms opening safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 15 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 2…3 W at 50/60 Hz auxiliary contacts type Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 signalling circuit frequency 25...400 Hz minimum switching current 5 mA for signalling circuit minimum switching voltage 17 V for signalling circuit non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact insulation resistance > 10 MOhm for signalling circuit Main - LC1D188U7 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 2 NO + 2 NC [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz auxiliary contact composition 1 NO + 1 NC [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit32 A (at 60 °C) for power circuit Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1300 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 300 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 145 A 40 °C - 10 s for power circuit240 A 40 °C - 1 s for power circuit40 A 40 °C - 10 min for power circuit84 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-150 A gG at <= 690 V coordination type 1 for power circuit35 A gG at <= 690 V coordination type 2 for power circuit average impedance 2.5 mOhm - Ith 32 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certified electrical durability 1 Mcycles 32 A AC-1 at Ue <= 440 V power dissipation per pole 2.5 W AC-1 Front cover With mounting support PlateRail standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 product certifications DNVCSAULBVGOSTLROS (Lloyds register of shipping)GLRINACCCUKCA connections - terminals Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: connector 1 cable(s) 2.5…10 mm²flexible without cable endPower circuit: connector 2 cable(s) 2.5…10 mm²flexible without cable endPower circuit: connector 1 cable(s) 2.5…10 mm²flexible with cable endPower circuit: connector 2 cable(s) 2.5…10 mm²flexible with cable endPower circuit: connector 1 cable(s) 2.5…16 mm²solid without cable endPower circuit: connector 2 cable(s) 2.5…16 mm²solid without cable end tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 1.7 N.m - on connector - with screwdriver flat Ø 6 mmPower circuit: 1.7 N.m - on connector - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 12...22 ms closing4...19 ms opening safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 15 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 2…3 W at 50/60 Hz auxiliary contacts type Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 signalling circuit frequency 25...400 Hz minimum switching current 5 mA for signalling circuit minimum switching voltage 17 V for signalling circuit non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact insulation resistance > 10 MOhm for signalling circuit Main - LC1D258U7 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 2 NO + 2 NC [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz auxiliary contact composition 1 NO + 1 NC [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit40 A (at 60 °C) for power circuit Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1450 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 450 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 240 A 40 °C - 10 s for power circuit380 A 40 °C - 1 s for power circuit50 A 40 °C - 10 min for power circuit120 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-163 A gG at <= 690 V coordination type 1 for power circuit40 A gG at <= 690 V coordination type 2 for power circuit average impedance 2 mOhm - Ith 40 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedSignalling circuit: 690 V conforming to IEC 60947-1Signalling circuit: 600 V CSA certifiedSignalling circuit: 600 V UL certified electrical durability 1.4 Mcycles 40 A AC-1 at Ue <= 440 V power dissipation per pole 3.2 W AC-1 Front cover With mounting support PlateRail standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508IEC 60335-1 product certifications CCCCSAGOSTDNVRINABVGLULLROS (Lloyds register of shipping)UKCA connections - terminals Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: connector 1 cable(s) 2.5…10 mm²flexible without cable endPower circuit: connector 2 cable(s) 2.5…10 mm²flexible without cable endPower circuit: connector 1 cable(s) 2.5…10 mm²flexible with cable endPower circuit: connector 2 cable(s) 2.5…10 mm²flexible with cable endPower circuit: connector 1 cable(s) 2.5…16 mm²solid without cable endPower circuit: connector 2 cable(s) 2.5…16 mm²solid without cable end tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 1.8 N.m - on connector - with screwdriver flat Ø 6 mmPower circuit: 1.8 N.m - on connector - with screwdriver Philips No 2Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 12...22 ms closing4...19 ms opening safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 15 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)70 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 2…3 W at 50/60 Hz auxiliary contacts type Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1type mirror contact 1 NC conforming to IEC 60947-4-1 signalling circuit frequency 25...400 Hz minimum switching current 5 mA for signalling circuit minimum switching voltage 17 V for signalling circuit non-overlap time 1.5 ms on de-energisation between NC and NO contact1.5 ms on energisation between NC and NO contact insulation resistance > 10 MOhm for signalling circuit Main - LC1D40008U7 range TeSys product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 2 NO + 2 NC [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 60 A (at 60 °C) for power circuit Irms rated making capacity 800 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 800 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 320 A 40 °C - 10 s for power circuit720 A 40 °C - 1 s for power circuit72 A 40 °C - 10 min for power circuit165 A 40 °C - 1 min for power circuit associated fuse rating 80 A gG at <= 690 V coordination type 1 for power circuit80 A gG at <= 690 V coordination type 2 for power circuit average impedance 1.5 mOhm - Ith 60 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedPower circuit: 690 V conforming to IEC 60947-4-1 electrical durability 1.4 Mcycles 60 A AC-1 at Ue <= 440 V power dissipation per pole 5.4 W AC-1 Front cover Without mounting support RailPlate standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508 product certifications GLLROS (Lloyds register of shipping)DNVRINACSABVCCCGOSTUL connections - terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: screw clamp terminals 1 cable(s) 1…35 mm²flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 1…25 mm²flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 1…35 mm²flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 1…25 mm²flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 1…35 mm²solid without cable endPower circuit: screw clamp terminals 2 cable(s) 1…25 mm²solid without cable end tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 8 N.m - on screw clamp terminals - cable 25…35 mm² hexagonal screw head 4 mmPower circuit: 5 N.m - on screw clamp terminals - cable 1…25 mm² hexagonal screw head 4 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 4...19 ms opening12...26 ms closing safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 6 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 140 VA 60 Hz cos phi 0.75 (at 20 °C)160 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 13 VA 60 Hz cos phi 0.3 (at 20 °C)15 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 4…5 W at 50/60 Hz Main - LC1D65008U7 range TeSys product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 2 NO + 2 NC [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 HzPower circuit: <= 300 V DC [Ie] rated operational current 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 80 A (at 60 °C) for power circuit Irms rated making capacity 1000 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 1000 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 520 A 40 °C - 10 s for power circuit900 A 40 °C - 1 s for power circuit110 A 40 °C - 10 min for power circuit260 A 40 °C - 1 min for power circuit associated fuse rating 125 A gG at <= 690 V coordination type 1 for power circuit125 A gG at <= 690 V coordination type 2 for power circuit average impedance 1.5 mOhm - Ith 80 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedPower circuit: 690 V conforming to IEC 60947-4-1 electrical durability 1.4 Mcycles 80 A AC-1 at Ue <= 440 V power dissipation per pole 9.6 W AC-1 Front cover Without mounting support RailPlate standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508 product certifications CCCGOSTRINADNVBVLROS (Lloyds register of shipping)CSAULGL connections - terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: screw clamp terminals 1 cable(s) 1…35 mm²flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 1…25 mm²flexible without cable endPower circuit: screw clamp terminals 1 cable(s) 1…35 mm²flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 1…25 mm²flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 1…35 mm²solid without cable endPower circuit: screw clamp terminals 2 cable(s) 1…25 mm²solid without cable end tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 8 N.m - on screw clamp terminals - cable 25…35 mm² hexagonal screw head 4 mmPower circuit: 5 N.m - on screw clamp terminals - cable 1…25 mm² hexagonal screw head 4 mm operating time 4...19 ms opening12...26 ms closing safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 6 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz1...1.1 Uc (60…70 °C):operational AC 50/60 Hz inrush power in VA 140 VA 60 Hz cos phi 0.75 (at 20 °C)160 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 13 VA 60 Hz cos phi 0.3 (at 20 °C)15 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 4…5 W at 50/60 Hz Main - LC1D80004U7 range TeSys product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 4 NO [Ue] rated operational voltage Power circuit: <= 300 V DC 25...400 HzPower circuit: <= 690 V AC [Ie] rated operational current 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 640 A 40 °C - 10 s for power circuit990 A 40 °C - 1 s for power circuit135 A 40 °C - 10 min for power circuit320 A 40 °C - 1 min for power circuit associated fuse rating 200 A gG at <= 690 V coordination type 1 for power circuit160 A gG at <= 690 V coordination type 2 for power circuit average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedPower circuit: 1000 V conforming to IEC 60947-4-1 electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V power dissipation per pole 12.5 W AC-1 Front cover Without mounting support RailPlate standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508 product certifications CSAGOSTRINAULBVCCCGLDNVLROS (Lloyds register of shipping) connections - terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: connector 1 cable(s) 4…50 mm²flexible without cable endPower circuit: connector 2 cable(s) 4…25 mm²flexible without cable endPower circuit: connector 1 cable(s) 4…50 mm²flexible with cable endPower circuit: connector 2 cable(s) 4…16 mm²flexible with cable endPower circuit: connector 1 cable(s) 4…50 mm²solid without cable endPower circuit: connector 2 cable(s) 4…25 mm²solid without cable end tightening torque Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mmPower circuit: 12 N.m - on connector hexagonal screw head 4 mmControl circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 20...35 ms closing6...20 ms opening safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 4 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.85...1.1 Uc (-40…55 °C):operational AC 60 Hz0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…55 °C):operational AC 50 Hz1...1.1 Uc (55…70 °C):operational AC 50/60 Hz inrush power in VA 245 VA 60 Hz cos phi 0.75 (at 20 °C)245 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 26 VA 60 Hz cos phi 0.3 (at 20 °C)26 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 6…10 W at 50/60 Hz Main - LC1D80008U7 range TeSys product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 2 NO + 2 NC [Ue] rated operational voltage Power circuit: <= 300 V DC 25...400 HzPower circuit: <= 690 V AC [Ie] rated operational current 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 640 A 40 °C - 10 s for power circuit990 A 40 °C - 1 s for power circuit135 A 40 °C - 10 min for power circuit320 A 40 °C - 1 min for power circuit associated fuse rating 200 A gG at <= 690 V coordination type 1 for power circuit160 A gG at <= 690 V coordination type 2 for power circuit average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedPower circuit: 1000 V conforming to IEC 60947-4-1 electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V power dissipation per pole 12.5 W AC-1 Front cover Without mounting support PlateRail standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508 product certifications DNVRINAGOSTGLULLROS (Lloyds register of shipping)CSACCCBV connections - terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable endControl circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endPower circuit: connector 1 cable(s) 4…50 mm²flexible without cable endPower circuit: connector 2 cable(s) 4…25 mm²flexible without cable endPower circuit: connector 1 cable(s) 4…50 mm²flexible with cable endPower circuit: connector 2 cable(s) 4…16 mm²flexible with cable endPower circuit: connector 1 cable(s) 4…50 mm²solid without cable endPower circuit: connector 2 cable(s) 4…25 mm²solid without cable end tightening torque Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mmPower circuit: 12 N.m - on connector hexagonal screw head 4 mmControl circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 operating time 20...35 ms closing6...20 ms opening safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 4 Mcycles maximum operating rate 3600 cyc/h 60 °C Complementary coil technology Without built-in suppressor module control circuit voltage limits 0.85...1.1 Uc (-40…55 °C):operational AC 60 Hz0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.1 Uc (-40…55 °C):operational AC 50 Hz1...1.1 Uc (55…70 °C):operational AC 50/60 Hz inrush power in VA 245 VA 60 Hz cos phi 0.75 (at 20 °C)245 VA 50 Hz cos phi 0.75 (at 20 °C) hold-in power consumption in VA 26 VA 60 Hz cos phi 0.3 (at 20 °C)26 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 6…10 W at 50/60 Hz Main - LC1D1150046U7 range TeSys product name TeSys DTeSys Deca product or component type Contactor device short name LC1D contactor application Resistive load utilisation category AC-1 poles description 4P power pole contact composition 4 NO [Ue] rated operational voltage Power circuit: <= 1000 V AC 25...400 HzPower circuit: <= 460 V DC [Ie] rated operational current 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit control circuit type AC at 50/60 Hz [Uc] control circuit voltage 240 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947 overvoltage category III [Ith] conventional free air thermal current 200 A (at 60 °C) for power circuit Irms rated making capacity 1260 A at 440 V for power circuit conforming to IEC 60947 rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 250 A 40 °C - 10 min for power circuit550 A 40 °C - 1 min for power circuit950 A 40 °C - 10 s for power circuit1100 A 40 °C - 1 s for power circuit associated fuse rating 250 A gG at <= 690 V coordination type 1 for power circuit200 A gG at <= 690 V coordination type 2 for power circuit average impedance 0.6 mOhm - Ith 200 A 50 Hz for power circuit [Ui] rated insulation voltage Power circuit: 600 V CSA certifiedPower circuit: 600 V UL certifiedPower circuit: 1000 V conforming to IEC 60947-4-1 electrical durability 0.8 Mcycles 200 A AC-1 at Ue <= 440 V power dissipation per pole 24 W AC-1 Front cover With mounting support RailPlate standards CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508 product certifications CCCDNVGLCSAGOSTBVULLROS (Lloyds register of shipping)RINAUKCA connections - terminals Control circuit: lugs-ring terminals (external diameter: 8 mm)Power circuit: lugs-ring terminals (external diameter: 25 mm)Power circuit: bars 1 cable(s) - busbar cross section: 5 x 25 mm tightening torque Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5Power circuit: 12 N.m - on lugs-ring terminals hexagonal screw head 13 mm M8Power circuit: 12 N.m - on bars hexagonal screw head 13 mm M8Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 operating time 6...20 ms opening20...50 ms closing safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 mechanical durability 8 Mcycles maximum operating rate 2400 cyc/h 60 °C Complementary coil technology Built-in bidirectional peak limiting diode suppressor control circuit voltage limits 0.3...0.5 Uc (-40…70 °C):drop-out AC 50/60 Hz0.8...1.15 Uc (-40…55 °C):operational AC 50/60 Hz1...1.15 Uc (55…70 °C):operational AC 50/60 Hz inrush power in VA 280…350 VA 60 Hz cos phi 0.8 (at 20 °C)280…350 VA 50 Hz cos phi 0.8 (at 20 °C) hold-in power consumption in VA 2…18 VA 60 Hz cos phi 0.3 (at 20 °C)2…18 VA 50 Hz cos phi 0.3 (at 20 °C) heat dissipation 3…8 W at 50/60 Hz
