Single/Three phase 200-240V
SKU: bc-646
$191.87
Currently out of stock — contact us for lead times
Description

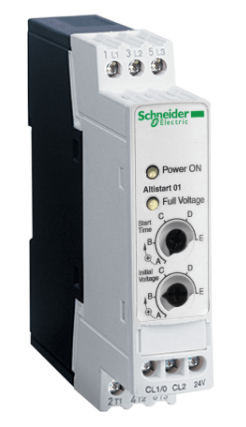

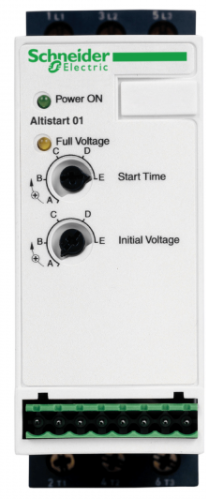

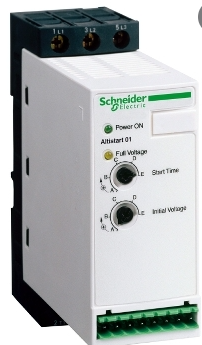

Main - ATS01N103FT range of product Altistart 01 product or component type Soft starter product destination Asynchronous motors product specific application Simple machine device short name ATS01 network number of phases 1 phase [Us] rated supply voltage 110...480 V - 10...10 % motor power kW 0.37 kW, 3 phases at 230 V0.55 kW, 3 phases at 230 V1.1 kW, 3 phases at 400 V0.37 kW, 1 phase at 230 V motor power hp 0.5 hp, 3 phases at 230 V0.5 hp, 3 phases at 460 V1.5 hp, 3 phases at 460 V IcL starter rating 3 A utilisation category AC-53B conforming to EN/IEC 60947-4-2 current consumption 15 A at nominal load type of start Start with voltage ramp power dissipation in W 19 W in transient state4 W at full load and at end of starting Complementary assembly style With heat sink function available Integrated bypass supply voltage limits 99…528 V supply frequency 50...60 Hz - 5...5 % network frequency 47.5...63 Hz output voltage <= power supply voltage [Uc] control circuit voltage 110 V AC +/- 10 % at 30 mA24 V AC/DC +/- 10 % at 25 mA240 V AC +/- 10 % at 65 mA starting time 1 s / 1005 s / 20Adjustable from 1 to 5 s starting torque 30...80 % of starting torque of motor connected directly on the line supply discrete output current 2 A DC-133 A AC-15 tightening torque 0.8 N.m electrical connection Cage type connector - rigid 1 2.5 mm² AWG 14 control circuitCage type connector - rigid 1 2.5 mm² AWG 14 power circuitCage type connector - rigid 2 1 mm² AWG 17 control circuitCage type connector - rigid 2 1 mm² AWG 17 power circuitCage type connector - flexible with cable end 1 2.5 mm² AWG 14 control circuitCage type connector - flexible with cable end 1 2.5 mm² AWG 14 power circuitCage type connector - flexible without cable end 1 2.5 mm² AWG 14 control circuitCage type connector - flexible without cable end 1 2.5 mm² AWG 14 power circuitCage type connector - flexible with cable end 2 0.75 mm² AWG 18 control circuitCage type connector - flexible with cable end 2 0.75 mm² AWG 18 power circuitCage type connector - flexible without cable end 2 1 mm² AWG 17 control circuitCage type connector - flexible without cable end 2 1 mm² AWG 17 power circuit marking CE operating position Vertical +/- 10 degree height 100 mm width 23 mm depth 100 mm net weight 0.16 kg compatibility code ATS01N1 Motor power range AC-3 0…0.5 kW at 200…240 V 1 phase0…0.5 kW at 200…240 V 3 phases0.55…1 kW at 200…240 V 3 phases1.1…2 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS01N106FT range of product Altistart 01 product or component type Soft starter product destination Asynchronous motors product specific application Simple machine device short name ATS01 network number of phases 1 phase [Us] rated supply voltage 110...480 V - 10...10 % motor power kW 3 kW, 3 phases at 400 V0.75 kW, 3 phases at 230 V1.1 kW, 3 phases at 230 V2.2 kW, 3 phases at 400 V0.75 kW, 1 phase at 230 V motor power hp 1 hp, 3 phases at 230 V2 hp, 3 phases at 460 V3 hp, 3 phases at 460 V0.5 hp, 3 phases at 210 V1.5 hp, 3 phases at 230 V IcL starter rating 6 A utilisation category AC-53B conforming to EN/IEC 60947-4-2 current consumption 30 A at nominal load type of start Start with voltage ramp power dissipation in W 1 W at full load and at end of starting31 W in transient state Complementary assembly style With heat sink function available Integrated bypass supply voltage limits 99…528 V supply frequency 50...60 Hz - 5...5 % network frequency 47.5...63 Hz output voltage <= power supply voltage [Uc] control circuit voltage 110 V AC +/- 10 % at 30 mA24 V AC/DC +/- 10 % at 25 mA240 V AC +/- 10 % at 65 mA starting time 1 s / 1005 s / 20Adjustable from 1 to 5 s starting torque 30...80 % of starting torque of motor connected directly on the line supply discrete output current 2 A DC-133 A AC-15 tightening torque 0.8 N.m electrical connection Cage type connector - rigid 1 2.5 mm² AWG 14 control circuitCage type connector - rigid 1 2.5 mm² AWG 14 power circuitCage type connector - rigid 2 1 mm² AWG 17 control circuitCage type connector - rigid 2 1 mm² AWG 17 power circuitCage type connector - flexible with cable end 1 2.5 mm² AWG 14 control circuitCage type connector - flexible with cable end 1 2.5 mm² AWG 14 power circuitCage type connector - flexible without cable end 1 2.5 mm² AWG 14 control circuitCage type connector - flexible without cable end 1 2.5 mm² AWG 14 power circuitCage type connector - flexible with cable end 2 0.75 mm² AWG 18 control circuitCage type connector - flexible with cable end 2 0.75 mm² AWG 18 power circuitCage type connector - flexible without cable end 2 1 mm² AWG 17 control circuitCage type connector - flexible without cable end 2 1 mm² AWG 17 power circuit marking CE operating position Vertical +/- 10 degree height 100 mm width 23 mm depth 100 mm net weight 0.16 kg compatibility code ATS01N1 Motor power range AC-3 0.55…1 kW at 200…240 V 3 phases1.1…2 kW at 380…440 V 3 phases0.55…1 kW at 200…240 V 1 phase1.1…2 kW at 200…240 V 3 phases2.2…3 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS01N109FT range of product Altistart 01 product or component type Soft starter product destination Asynchronous motors product specific application Simple machine device short name ATS01 network number of phases 1 phase [Us] rated supply voltage 110...480 V - 10...10 % motor power kW 4 kW, 3 phases at 400 V1.5 kW, 3 phases at 230 V1.1 kW, 1 phase at 230 V motor power hp 1 hp, 3 phases at 210 V2 hp, 3 phases at 230 V5 hp, 3 phases at 460 V IcL starter rating 9 A utilisation category AC-53B conforming to EN/IEC 60947-4-2 current consumption 45 A at nominal load type of start Start with voltage ramp power dissipation in W 1 W at full load and at end of starting46 W in transient state Complementary assembly style With heat sink function available Integrated bypass supply voltage limits 99…528 V supply frequency 50...60 Hz - 5...5 % network frequency 47.5...63 Hz output voltage <= power supply voltage [Uc] control circuit voltage 110 V AC +/- 10 % at 35 mA24 V AC/DC +/- 10 % at 30 mA240 V AC +/- 10 % at 80 mA starting time 1 s / 1005 s / 20Adjustable from 1 to 5 s starting torque 30...80 % of starting torque of motor connected directly on the line supply discrete output current 2 A DC-133 A AC-15 tightening torque 0.5 N.m1.9…2.5 N.m electrical connection 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuitScrew connector - rigid 1 0.5...2.5 mm² AWG 14 control circuit4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuitScrew connector - rigid 2 0.5...1 mm² AWG 17 control circuitScrew connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuitScrew connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuitScrew connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit marking CE operating position Vertical +/- 10 degree height 124 mm width 45 mm depth 131 mm net weight 0.28 kg compatibility code ATS01N1 Motor power range AC-3 1.1…2 kW at 200…240 V 1 phase2.2…3 kW at 200…240 V 3 phases4…6 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS01N112FT range of product Altistart 01 product or component type Soft starter product destination Asynchronous motors product specific application Simple machine device short name ATS01 network number of phases 1 phase [Us] rated supply voltage 110...480 V - 10...10 % motor power kW 2.2 kW, 3 phases at 230 V5.5 kW, 3 phases at 400 V1.5 kW, 1 phase at 230 V motor power hp 3 hp, 3 phases at 230 V1.5 hp, 3 phases at 210 V7.5 hp, 3 phases at 460 V IcL starter rating 12 A utilisation category AC-53B conforming to EN/IEC 60947-4-2 current consumption 60 A at nominal load type of start Start with voltage ramp power dissipation in W 1 W at full load and at end of starting61 W in transient state Complementary assembly style With heat sink function available Integrated bypass supply voltage limits 99…528 V supply frequency 50...60 Hz - 5...5 % network frequency 47.5...63 Hz output voltage <= power supply voltage [Uc] control circuit voltage 110 V AC +/- 10 % at 35 mA24 V AC/DC +/- 10 % at 30 mA240 V AC +/- 10 % at 80 mA starting time 1 s / 1005 s / 20Adjustable from 1 to 5 s starting torque 30...80 % of starting torque of motor connected directly on the line supply discrete output current 2 A DC-133 A AC-15 tightening torque 1.9…2.5 N.m0.5 N.m electrical connection 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuitScrew connector - rigid 1 0.5...2.5 mm² AWG 14 control circuit4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuitScrew connector - rigid 2 0.5...1 mm² AWG 17 control circuitScrew connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuitScrew connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuitScrew connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit marking CE operating position Vertical +/- 10 degree height 124 mm width 45 mm depth 131 mm net weight 0.28 kg compatibility code ATS01N1 Motor power range AC-3 1.1…2 kW at 200…240 V 1 phase2.2…3 kW at 200…240 V 3 phases4…6 kW at 380…440 V 3 phases motor starter type Soft starter Main - ATS01N125FT range of product Altistart 01 product or component type Soft starter product destination Asynchronous motors product specific application Simple machine device short name ATS01 network number of phases 1 phase [Us] rated supply voltage 110...480 V - 10...10 % motor power kW 11 kW, 3 phases at 400 V3 kW, 3 phases at 230 V4 kW, 3 phases at 230 V9 kW, 3 phases at 400 V7.5 kW, 3 phases at 400 V5.5 kW, 3 phases at 230 V2.2 kW, 1 phase at 230 V motor power hp 11 hp, 3 phases at 460 V2 hp, 3 phases at 210 V3 hp, 3 phases at 210 V5 hp, 3 phases at 230 V9 hp, 3 phases at 460 V7.5 hp, 3 phases at 230 V IcL starter rating 25 A utilisation category AC-53B conforming to EN/IEC 60947-4-2 current consumption 125 A at nominal load type of start Start with voltage ramp power dissipation in W 1 W at full load and at end of starting126 W in transient state Complementary assembly style With heat sink function available Integrated bypass supply voltage limits 99…528 V supply frequency 50...60 Hz - 5...5 % network frequency 47.5...63 Hz output voltage <= power supply voltage [Uc] control circuit voltage 110 V AC +/- 10 % at 35 mA24 V AC/DC +/- 10 % at 30 mA240 V AC +/- 10 % at 80 mA starting time 1 s / 1005 s / 20Adjustable from 1 to 5 s starting torque 30...80 % of starting torque of motor connected directly on the line supply discrete output current 2 A DC-133 A AC-15 tightening torque 0.5 N.m1.9…2.5 N.m electrical connection 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuitScrew connector - rigid 1 0.5...2.5 mm² AWG 14 control circuit4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuitScrew connector - rigid 2 0.5...1 mm² AWG 17 control circuitScrew connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuitScrew connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuitScrew connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit marking CE operating position Vertical +/- 10 degree height 124 mm width 45 mm depth 131 mm net weight 0.35 kg compatibility code ATS01N1 Motor power range AC-3 2.2…3 kW at 200…240 V 3 phases2.2…3 kW at 200…240 V 1 phase4…6 kW at 200…240 V 3 phases7…11 kW at 200…240 V 3 phases7…11 kW at 380…440 V 3 phases motor starter type Soft starter
