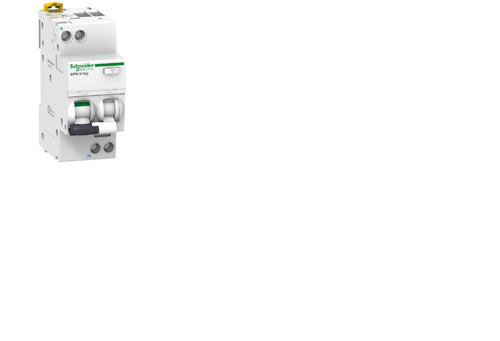

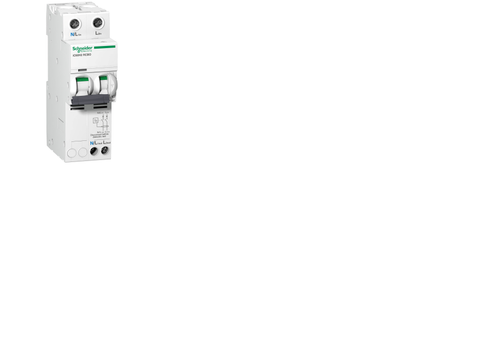

Residual current breaker with overcurrent protection (RCBO)
SKU: bc-589
$42.81
Currently out of stock — contact us for lead times
Description
Main - A9D32606 range Acti 9 product name Acti9 iDPN Vigi product or component type Residual current breaker with overcurrent protection (RCBO) device short name IDPN N Vigi device application Distribution poles description 1P + N number of protected poles 1 neutral position Left [In] rated current 6 A network type AC trip unit technology Thermal-magnetic curve code C earth-leakage sensitivity 30 mA earth-leakage protection time delay Instantaneous earth-leakage protection class Type A breaking capacity 6000 A Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1 suitability for isolation Yes conforming to EN/IEC 60947-2 Complementary FOR A9D32606 device location in system Outgoer network frequency 50 Hz [Ue] rated operational voltage 220...240 V AC 50 Hz magnetic tripping limit 5...10 x In residual current tripping technology Voltage independent [Ics] rated service breaking capacity 6000 A 100 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1 rated breaking and making capacity Idm 6000 A at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1 limitation class 3 conforming to EN/IEC 61009-2-1 [Ui] rated insulation voltage 400 V AC 50 Hz [Uimp] rated impulse withstand voltage 4 kV contact position indicator Yes control type Toggle local signalling ON, OFF, fault trip mounting mode Clip-on mounting support DIN rail comb busbar and distribution block compatibility Top or bottom: YES 9 mm pitches 4 height 85 mm width 36 mm depth 73 mm net weight 125 g colour White mechanical durability 20000 cycles electrical durability 20000 cycles locking options description Padlocking device connections - terminals Single terminal top or bottom 1…16 mm² rigidSingle terminal top or bottom 1…10 mm² flexibleSingle terminal top or bottom 1…10 mm² flexible with ferrule wire stripping length 15 mm for top or bottom connection tightening torque 2 N.m top or bottom earth-leakage protection Integrated Main - A9D61806 circuit breaker application Distribution range Acti 9 product name Acti9 iC60 RCBO product or component type Residual current breaker with overcurrent protection (RCBO) device short name IC60N RCBO poles description 1P + N [In] rated current 6 A at 50 °C earthing system TN curve code C earth-leakage sensitivity 30 mA breaking capacity 6000 A Icn at 240 V AC 50/60 Hz Complementary for A9D61806 neutral position Left number of protected poles 1 device location in system Outgoer network frequency 50/60 Hz network type AC trip unit technology Thermal-magnetic [Ue] rated operational voltage 240 V AC 50/60 Hz residual current tripping technology Voltage dependent earth-leakage protection time delay Instantaneous earth-leakage protection class Type A [Icw] rated short-time withstand current Icw: 250 A during 8/20 µs impulse withstand [Ics] rated service breaking capacity 6000 A at 240 V AC 50/60 Hz limitation class 3 [Ui] rated insulation voltage 400 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 4 kV surge current 250 A suitability for isolation Yes contact position indicator Yes control type Toggle local signalling ON/OFF indication mounting mode Clip-on mounting support DIN rail comb busbar and distribution block compatibility NO 9 mm pitches 2 height 110 mm width 18 mm depth 77.5 mm net weight 205 g colour White mechanical durability 20000 cycles electrical durability 5000 cycles provision for padlocking Padlockable with padlock Ø 4 mm locking options description ON/OFF locking facilities connections - terminals Screw clamp terminal (top) 1…25 mm² rigid without cable endScrew clamp terminal (top) 1…16 mm² flexibleScrew clamp terminal (bottom) 1…16 mm² rigid without cable endScrew clamp terminal (bottom) 1…10 mm² flexible wire stripping length Power circuit: 13 mm for bottom connectionPower circuit: 14 mm for top connection tightening torque Power circuit: 3.5 N.m topPower circuit: 2 N.m bottom earth-leakage protection Integrated Main - A9D33610 range Acti 9 product name Acti9 iDPN Vigi product or component type Residual current breaker with overcurrent protection (RCBO) device short name IDPN N Vigi device application Distribution poles description 1P + N number of protected poles 1 neutral position Left [In] rated current 10 A network type AC trip unit technology Thermal-magnetic curve code C earth-leakage sensitivity 30 mA earth-leakage protection time delay Instantaneous earth-leakage protection class Type A-SI (Super Immunised) breaking capacity 6000 A Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1 suitability for isolation Yes conforming to EN/IEC 60947-2 Complementary for A9D33610 device location in system Outgoer network frequency 50 Hz [Ue] rated operational voltage 220...240 V AC 50 Hz magnetic tripping limit 5...10 x In residual current tripping technology Voltage independent [Ics] rated service breaking capacity 6000 A 100 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1 rated breaking and making capacity Idm 6000 A at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1 limitation class 3 conforming to EN/IEC 61009-2-1 [Ui] rated insulation voltage 400 V AC 50 Hz [Uimp] rated impulse withstand voltage 4 kV contact position indicator Yes control type Toggle local signalling ON, OFF, fault trip mounting mode Clip-on mounting support DIN rail comb busbar and distribution block compatibility Top or bottom: YES 9 mm pitches 4 height 85 mm width 36 mm depth 73 mm net weight 125 g colour White mechanical durability 20000 cycles electrical durability 20000 cycles locking options description Padlocking device connections - terminals Single terminal top or bottom 1…16 mm² rigidSingle terminal top or bottom 1…10 mm² flexibleSingle terminal top or bottom 1…10 mm² flexible with ferrule wire stripping length 15 mm for top or bottom connection tightening torque 2 N.m top or bottom earth-leakage protection Integrated Main - A9D19810 circuit breaker application Distribution range Acti 9 product name Acti9 iC60 RCBO product or component type Residual current breaker with overcurrent protection (RCBO) device short name IC60H RCBO poles description 1P + N [In] rated current 10 A at 50 °C earthing system TN curve code C earth-leakage sensitivity 30 mA breaking capacity 10000 A Icn at 110 V AC 50/60 Hz Complementary for A9D19810 neutral position Left number of protected poles 1 device location in system Outgoer network frequency 50 Hz network type AC trip unit technology Thermal-magnetic [Ue] rated operational voltage 110 V AC 50/60 Hz residual current tripping technology Voltage dependent earth-leakage protection time delay Instantaneous earth-leakage protection class Type A [Icw] rated short-time withstand current Icw: 250 A during 8/20 µs impulse withstand [Ics] rated service breaking capacity 7500 A at 110 V AC 50/60 Hz limitation class 3 [Ui] rated insulation voltage 400 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 4 kV surge current 250 A suitability for isolation Yes contact position indicator Yes control type Toggle local signalling ON/OFF indication mounting mode Clip-on mounting support DIN rail comb busbar and distribution block compatibility NO 9 mm pitches 2 height 110 mm width 18 mm depth 77.5 mm net weight 205 g colour White mechanical durability 20000 cycles electrical durability 5000 cycles provision for padlocking Padlockable with padlock Ø 4 mm locking options description ON/OFF locking facilities connections - terminals Screw clamp terminal (top) 1…25 mm² rigid without cable endScrew clamp terminal (top) 1…16 mm² flexibleScrew clamp terminal (bottom) 1…16 mm² rigid without cable endScrew clamp terminal (bottom) 1…10 mm² flexible wire stripping length Power circuit: 13 mm for bottom connectionPower circuit: 14 mm for top connection tightening torque Power circuit: 3.5 N.m topPower circuit: 2 N.m bottom earth-leakage protection Integrated Main - A9D19210 circuit breaker application Distribution range Acti 9 product name Acti9 iC60 RCBO product or component type Residual current breaker with overcurrent protection (RCBO) device short name IC60H2 RCBO poles description 2P [In] rated current 10 A at 50 °C earthing system TNTTIT curve code C earth-leakage sensitivity 30 mA breaking capacity 10000 A Icn at 110 V AC 50/60 Hz Complementary for A9D19210 neutral position Left number of protected poles 1 device location in system Outgoer network frequency 50 Hz network type AC trip unit technology Thermal-magnetic [Ue] rated operational voltage 110 V AC 50/60 Hz residual current tripping technology Voltage dependent earth-leakage protection time delay Instantaneous earth-leakage protection class Type A [Icw] rated short-time withstand current Icw: 250 A during 8/20 µs impulse withstand [Ics] rated service breaking capacity 7500 A at 110 V AC 50/60 Hz limitation class 3 [Ui] rated insulation voltage 400 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 4 kV surge current 250 A suitability for isolation Yes contact position indicator Yes control type Toggle local signalling ON/OFF indication mounting mode Clip-on mounting support DIN rail comb busbar and distribution block compatibility NO 9 mm pitches 4 height 110 mm width 36 mm depth 75.5 mm net weight 332 g colour White mechanical durability 20000 cycles electrical durability 5000 cycles provision for padlocking Padlockable with padlock Ø 4 mm locking options description ON/OFF locking facilities connections - terminals Screw clamp terminal (top) 1…25 mm² rigid without cable endScrew clamp terminal (top) 1…16 mm² flexibleScrew clamp terminal (bottom) 1…16 mm² rigid without cable endScrew clamp terminal (bottom) 1…10 mm² flexible wire stripping length Power circuit: 13 mm for bottom connectionPower circuit: 14 mm for top connection tightening torque Power circuit: 3.5 N.m topPower circuit: 2 N.m bottom earth-leakage protection Integrated Main - A9D11806 circuit breaker application Distribution range Acti 9 product name Acti9 iC60 RCBO product or component type Residual current breaker with overcurrent protection (RCBO) device short name IC60H RCBO poles description 1P + N [In] rated current 6 A at 50 °C earthing system TN curve code C earth-leakage sensitivity 30 mA breaking capacity 10000 A Icn at 240 V AC 50/60 Hz Complementary for A9D11806 neutral position Left number of protected poles 1 device location in system Outgoer network frequency 50 Hz network type AC trip unit technology Thermal-magnetic [Ue] rated operational voltage 240 V AC 50/60 Hz residual current tripping technology Voltage dependent earth-leakage protection time delay Instantaneous earth-leakage protection class Type A [Icw] rated short-time withstand current Icw: 250 A during 8/20 µs impulse withstand [Ics] rated service breaking capacity 7500 A at 240 V AC 50/60 Hz limitation class 3 [Ui] rated insulation voltage 400 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 4 kV surge current 250 A suitability for isolation Yes contact position indicator Yes control type Toggle local signalling ON/OFF indication mounting mode Clip-on mounting support DIN rail comb busbar and distribution block compatibility NO 9 mm pitches 2 height 110 mm width 18 mm depth 77.5 mm net weight 205 g colour White mechanical durability 20000 cycles electrical durability 5000 cycles provision for padlocking Padlockable with padlock Ø 4 mm locking options description ON/OFF locking facilities connections - terminals Screw clamp terminal (top) 1…25 mm² rigid without cable endScrew clamp terminal (top) 1…16 mm² flexibleScrew clamp terminal (bottom) 1…16 mm² rigid without cable endScrew clamp terminal (bottom) 1…10 mm² flexible wire stripping length Power circuit: 13 mm for bottom connectionPower circuit: 14 mm for top connection tightening torque Power circuit: 3.5 N.m topPower circuit: 2 N.m bottom earth-leakage protection Integrated Main - A9D12806 circuit breaker application Distribution range Acti 9 product name Acti9 iC60 RCBO product or component type Residual current breaker with overcurrent protection (RCBO) device short name IC60H RCBO poles description 1P + N [In] rated current 6 A at 50 °C earthing system TN curve code C earth-leakage sensitivity 100 mA breaking capacity 10000 A Icn at 240 V AC 50/60 Hz Complementary for A9D12806 neutral position Left number of protected poles 1 device location in system Outgoer network frequency 50 Hz network type AC trip unit technology Thermal-magnetic [Ue] rated operational voltage 240 V AC 50/60 Hz residual current tripping technology Voltage dependent earth-leakage protection time delay Instantaneous earth-leakage protection class Type A [Icw] rated short-time withstand current Icw: 250 A during 8/20 µs impulse withstand [Ics] rated service breaking capacity 7500 A at 240 V AC 50/60 Hz limitation class 3 [Ui] rated insulation voltage 400 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 4 kV surge current 250 A suitability for isolation Yes contact position indicator Yes control type Toggle local signalling ON/OFF indication mounting mode Clip-on mounting support DIN rail comb busbar and distribution block compatibility NO 9 mm pitches 2 height 110 mm width 18 mm depth 77.5 mm net weight 205 g colour White mechanical durability 20000 cycles electrical durability 5000 cycles provision for padlocking Padlockable with padlock Ø 4 mm locking options description ON/OFF locking facilities connections - terminals Screw clamp terminal (top) 1…25 mm² rigid without cable endScrew clamp terminal (top) 1…16 mm² flexibleScrew clamp terminal (bottom) 1…16 mm² rigid without cable endScrew clamp terminal (bottom) 1…10 mm² flexible wire stripping length Power circuit: 13 mm for bottom connectionPower circuit: 14 mm for top connection tightening torque Power circuit: 3.5 N.m topPower circuit: 2 N.m bottom earth-leakage protection Integrated Main - A9D11210 circuit breaker application Distribution range Acti 9 product name Acti9 iC60 RCBO product or component type Residual current breaker with overcurrent protection (RCBO) device short name IC60H2 RCBO poles description 2P [In] rated current 10 A at 50 °C earthing system TNITTT curve code C earth-leakage sensitivity 30 mA breaking capacity 10000 A Icn at 240 V AC 50/60 Hz Complementary for A9D11210 neutral position Left number of protected poles 2 device location in system Outgoer network frequency 50 Hz network type AC trip unit technology Thermal-magnetic [Ue] rated operational voltage 240 V AC 50/60 Hz residual current tripping technology Voltage dependent earth-leakage protection time delay Instantaneous earth-leakage protection class Type A [Icw] rated short-time withstand current Icw: 250 A during 8/20 µs impulse withstand [Ics] rated service breaking capacity 7500 A at 240 V AC 50/60 Hz limitation class 3 [Ui] rated insulation voltage 400 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 4 kV surge current 250 A suitability for isolation Yes contact position indicator Yes control type Toggle local signalling ON/OFF indication mounting mode Clip-on mounting support DIN rail comb busbar and distribution block compatibility NO 9 mm pitches 4 height 110 mm width 36 mm depth 75.5 mm net weight 332 g colour White mechanical durability 20000 cycles electrical durability 5000 cycles provision for padlocking Padlockable with padlock Ø 4 mm locking options description ON/OFF locking facilities connections - terminals Screw clamp terminal (top) 1…25 mm² rigid without cable endScrew clamp terminal (top) 1…16 mm² flexibleScrew clamp terminal (bottom) 1…16 mm² rigid without cable endScrew clamp terminal (bottom) 1…10 mm² flexible wire stripping length Power circuit: 13 mm for bottom connectionPower circuit: 14 mm for top connection tightening torque Power circuit: 3.5 N.m topPower circuit: 2 N.m bottom earth-leakage protection Integrated
