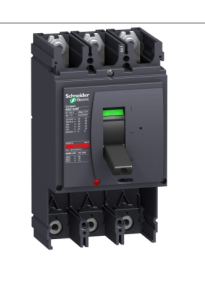

NSX400.630
SKU: bc-621
$576.07
Currently out of stock — contact us for lead times
Description
Main - LV432069 range ComPact range of product ComPact NSX400...630 product or component type Trip unit trip unit name Micrologic 1.3 M trip unit technology Electronic range compatibility ComPact NSX400ComPact NSX630 device application Motor Number of poles 3P protected poles description 3t trip unit protection functions I protection type I : for short-circuit protection (magnetic) Trip unit rated current 320 A at 65 °C [Ue] rated operational voltage 690 V AC 50/60 Hz network type AC network frequency 50/60 Hz Complementary Short-time protection pick-up adjustment type Isd Adjustable 9 settings [Isd] Short-time protection pick-up adjustment range 2880 A3520 A1600 A4160 A3840 A2240 A1920 A2560 A3200 A Short-time protection delay adjustment type tsd Fixed [tsd] Short-time protection delay adjustment range 0.01 s Instantaneous protection pick-up adjustment type Ii Fixed [Ii] instantaneous protection pick-up adjustment range 4800 A earth-leakage protection Without zone selective interlocking ZSI Without local signalling Flashing LED (green) for ready to operate Main - LV432082 range ComPact range of product ComPact NSX400...630 product or component type Trip unit trip unit name Micrologic 2.3 trip unit technology Electronic range compatibility ComPact NSX400ComPact NSX630 device application Distribution Number of poles 3P protected poles description 3t trip unit protection functions LSoI protection type L : for overload protection (long time)So : for short time short-circuit protection with fixed delayI : for instantaneous short-circuit protection Trip unit rated current 250 A at 40 °C [Ue] rated operational voltage 690 V AC 50/60 Hz network type AC network frequency 50/60 Hz Complementary Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings [Ir] long-time protection pick-up adjustment range 70...250 A Long-time protection delay adjustment type tr Fixed [tr] long-time protection delay adjustment range 11 s at 7.2 x Ir16 s at 6 x Ir400 s at 1.5 x Ir thermal memory 20 minutes before and after tripping Short-time protection pick-up adjustment type Isd Adjustable 9 settings [Isd] Short-time protection pick-up adjustment range 1.5...10 x Ir Short-time protection delay adjustment type tsd Fixed [tsd] Short-time protection delay adjustment range 0.02 s Instantaneous protection pick-up adjustment type Ii Fixed [Ii] instantaneous protection pick-up adjustment range 3000 A earth-leakage protection Without zone selective interlocking ZSI Without local signalling Flashing LED (green) for ready to operateLED 105 % Ir (red) for overloadLED 90 % Ir (orange) for overload Main - LV432413 range ComPact range of product ComPact NSX400...630 device short name NSX400F product or component type Basic frame device application Distribution circuit breaker name Compact NSX400F Number of poles 3P [In] rated current 400 A at 40 °C [Ue] rated operational voltage 690 V AC 50/60 Hz network type AC network frequency 50/60 Hz suitability for isolation Yes conforming to EN/IEC 60947-2 utilisation category Category A [Icu] rated ultimate short-circuit breaking capacity 85 kA at 240 V AC 50/60 Hz conforming to UL 50825 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-236 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-210 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-240 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-235 kA at 480 V AC 50/60 Hz conforming to UL 50820 kA at 600 V AC 50/60 Hz conforming to UL 50820 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-230 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 Performance level F 36 kA 415 V AC control type Toggle mounting mode Fixed Complementary [Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2 [Ics] rated service short-circuit breaking capacity 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-210 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-240 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-210 kA at 525 V AC 50/60 Hz conforming to IEC 60947-225 kA at 500 V AC 50/60 Hz conforming to IEC 60947-230 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 mechanical durability 15000 cycles conforming to IEC 60947-2 electrical durability 12000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-23000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-26000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-26000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2 mounting support Backplate upside connection Front downside connection Front connection pitch 45 mm protection type Without protection Width (W) 140 mm Height (H) 255 mm Depth (D) 110 mm Main - LV432813 range ComPact range of product ComPact NSX400...630 device short name NSX630F product or component type Basic frame device application Distribution circuit breaker name Compact NSX630F Number of poles 3P [In] rated current 630 A at 40 °C [Ue] rated operational voltage 690 V AC 50/60 Hz network type AC network frequency 50/60 Hz suitability for isolation Yes conforming to EN/IEC 60947-2 utilisation category Category A [Icu] rated ultimate short-circuit breaking capacity 85 kA at 240 V AC 50/60 Hz conforming to UL 50825 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-236 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-210 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-240 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-235 kA at 480 V AC 50/60 Hz conforming to UL 50820 kA at 600 V AC 50/60 Hz conforming to UL 50820 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-230 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 Performance level F 36 kA 415 V AC control type Toggle mounting mode Fixed Complementary [Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2 [Ics] rated service short-circuit breaking capacity 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-210 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-240 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-210 kA at 525 V AC 50/60 Hz conforming to IEC 60947-225 kA at 500 V AC 50/60 Hz conforming to IEC 60947-230 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 mechanical durability 15000 cycles conforming to IEC 60947-2 electrical durability 6000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-22000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-24000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-28000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2 mounting support Backplate upside connection Front downside connection Front connection pitch 45 mm protection type Without protection Width (W) 140 mm Height (H) 255 mm Depth (D) 110 mm
