Mechanical Latch Blocks

Description

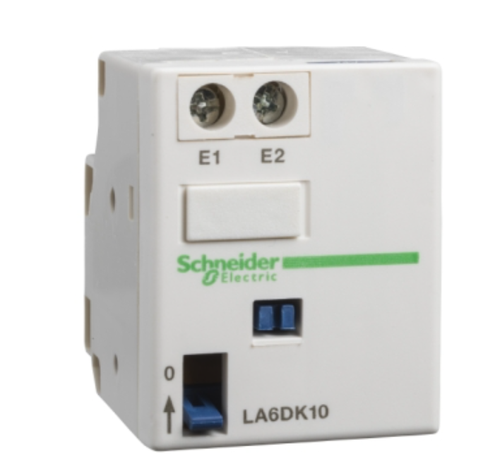

Main - LAD6K10M range TeSys product or component type Mechanical latch block product compatibility TeSys D control relaysLC1D40A...D65ALC1D09...D38LC1DT60A...DT80ALC1DT20...DT40 [Uc] control circuit voltage 220/240 V AC 50/60 Hz220/240 V DC Complementary mounting location Front side tripping control ElectricalManual [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1 power required in VA 25 for AC circuit power required in W 30 W for DC circuit mechanical durability 500000 cycles maximum operating rate 1200 cyc/h on-load factor 10 % net weight 0.07 kg Main - LA6DK20M range TeSys product or component type Mechanical latch block product compatibility LP1D80LC1D150LC1D115LC1D95LC1D80 [Uc] control circuit voltage 220/240 V AC 50/60 Hz220/240 V DC Complementary mounting location Front side tripping control ManualElectrical [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1 power required in VA 25 for AC circuit power required in W 30 W for DC circuit mechanical durability 500000 cycles maximum operating rate 1200 cyc/h on-load factor 10 % net weight 0.09 kg
