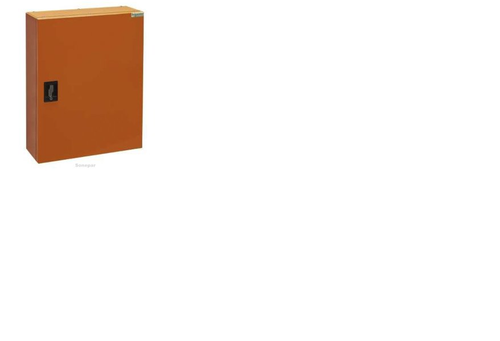

MB Standard Distribution Board with Isobar chassis - IP42

Description

Main - MB224CM1 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment  Pole filler Circuit schedule card Enclosure Removable gland plates  Keys  Chassis 2 earth/neutral terminal block - top and bottom 165 A   Colour Grey         Complementary  [Ie] Rated Operational Current 160 a   Breaking Capacity 25 kA   Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Enclosure material 18 ways (outgoer) - 1P with 18mm   Enclosure Material Metal   Height 600mm   width 580mm   Depth 235mm    Internal Depth  168.7mm        Main - MB236DM1 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment  Pole filler Circuit schedule card Enclosure Door Removable gland plates  Keys  Chassis 2 earth/neutral terminal block - top and bottom 165 A   Colour Grey    IP Degree of Protection IP42    Complementary  [Ie] Rated Operational Current 160 a   Breaking Capacity 25 kA   Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Enclosure material 36 ways (outgoer) - 1P with 18mm   Enclosure Material Metal   Height 1000mm   width 580mm   Depth 235mm    Internal Depth  168.7mm     IP Degree of Protection IP42  Main - MB248DM1 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment  Pole filler Circuit schedule card Enclosure Door DIN Rail Removable gland plates  Keys  Chassis 2 earth/neutral terminal block - top and bottom 165 A Mounting Plate   Colour Grey         IP Degree of ProtectionIP42 Main - MB254EM1 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment  Pole filler Circuit schedule card Enclosure Door Removable gland plates  Keys  Chassis 2 earth/neutral terminal block - top and bottom 165 A   Colour Grey    IP Degree of protection  IP42   Complementary  [Ie] Rated Operational Current 160 a   Breaking Capacity 25 kA   Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Enclosure material 54 ways (outgoer) - 1P with 18mm   Enclosure Material Metal   Height 1200mm   width 580mm   Depth 235mm    Internal Depth  168.7mm     IP Degree of Protection  IP42 Main - MB224CM1x15 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment Earth /Neutral Terminal Block - 165 A  Pole filler Circuit schedule card Removable gland plates - top and bottom 2 Keys  TNA Chassis Enlosure Door   Colour Orange         Complementary  [Ie] Rated Operational Current 160 a   Breaking Capacity 25 kA   Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Number of Ways 1 way (incomer) - 3P 24 ways (outgoer) - 1P    Outgoer Pole Capacity 24 18mm   Height 750mm   width 580mm   Depth 235mm          IP Degree of Protection  IP42 Main - MB236DM1x15 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment Earth /Neutral Terminal Block - 165 A  Pole filler Circuit schedule card Removable gland plates - top and bottom 2 Keys  TNA Chassis Enlosure Door   Colour Orange         Complementary  [Ie] Rated Operational Current 160 a   Breaking Capacity 25 kA   Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Number of Ways 36 ways (outgoer) - 1P with 18mm    Outgoer pole capacity 24 18mm   Height 750mm   width 580mm   Depth 235mm          IP Degree of Protection  IP42 Main - MB248DM1x15 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment Earth /Neutral Terminal Block - 165 A  Pole filler Circuit schedule card Removable gland plates - top and bottom 2 Keys  TNA Chassis Enlosure Door   Colour Orange         Complementary  [Ie] Rated Operational Current 160 a   Breaking Capacity 25 kA   Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Number of Ways 1 way (incomer) - 3P 48 ways (outgoer) - 1P    Outgoer Pole Capacity 48 18mm   Height 1000mm   width 580mm   Depth 235mm          IP Degree of Protection  IP42 Main - MB254EM1x15 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment Earth /Neutral Terminal Block - 165 A  Pole filler Circuit schedule card Removable gland plates - top and bottom 2 Keys  TNA Chassis Enlosure Door   Colour Orange         Complementary  [Ie] Rated Operational Current 160 a   Breaking Capacity 25 kA   Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Number of Ways 1 way (incomer) - 3P 54 ways (outgoer) - 1P    Outgoer Pole Capacity 54 18mm   Height 1200mm   width 580mm   Depth 235mm          IP Degree of Protection  IP42 Main - MB272EM1x15 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment Earth /Neutral Terminal Block - 165 A  Pole filler Circuit schedule card Removable gland plates - top and bottom 2 Keys  TNA Chassis Enlosure Door   Colour Orange         Complementary  [Ie] Rated Operational Current 160 a   Breaking Capacity 25 kA   Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Number of Ways 1 way (incomer) - 3P 72 ways (outgoer) - 1P    Outgoer Pole Capacity 72 18mm   Height 1200mm   width 580mm   Depth 235mm          IP Degree of Protection  IP42 Main - MB224CM2 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment  Pole filler Circuit schedule card Enclosure Door DIN Rail Removable gland plates  Keys  Chassis 2 earth/neutral terminal block - top and bottom 165 A Mounting plate   Colour Grey         Complementary  [Ie] Rated Operational Current 250 a         Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Steel   Enclosure material 24 ways (outgoer) - 1P with 18mm   Enclosure Material Steel   Height 750mm   width 580mm   Depth 235mm    Internal Depth  168.7mm     IP Degree of Protection IP42  Main - MB236DM2 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment  Pole filler Circuit schedule card Enclosure Door DIN Rail Removable gland plates  Keys  Chassis 2 earth/neutral terminal block - top and bottom 165 A Mounting plate   Colour Grey         Complementary  [Ie] Rated Operational Current 250 a         Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Steel   Enclosure material 36 ways (outgoer) - 1P with 18mm   Enclosure Material Steel   Height 1000mm   width 580mm   Depth 235mm    Internal Depth  168.7mm     IP Degree of Protection IP42  Main - MB248DM2 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment  Pole filler Circuit schedule card Enclosure Door DIN Rail Removable gland plates  Keys  Chassis 2 earth/neutral terminal block - top and bottom 165 A Mounting plate   Colour Grey         Complementary  [Ie] Rated Operational Current 250 a         Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Steel   Enclosure material 48 ways (outgoer) - 1P with 18mm   Enclosure Material Steel   Height 1000mm   width 580mm   Depth 235mm    Internal Depth  168.7mm     IP Degree of Protection IP42  Main - MB254EM2 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment  Pole filler Circuit schedule card Enclosure Door DIN Rail Removable gland plates  Keys  Chassis 2 earth/neutral terminal block - top and bottom 165 A Mounting plate   Colour Grey         Complementary  [Ie] Rated Operational Current 250 a         Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Steel   Enclosure material 54 ways (outgoer) - 1P with 18mm   Enclosure Material Steel   Height 1200mm   width 580mm   Depth 235mm    Internal Depth  168.7mm     IP Degree of Protection IP42    Main - MB272EM2 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment  Pole filler Circuit schedule card Enclosure Door DIN Rail Removable gland plates  Keys  Chassis 2 earth/neutral terminal block - top and bottom 165 A Mounting plate   Colour Grey         Complementary  [Ie] Rated Operational Current 250 a         Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Steel   Enclosure material 72 ways (outgoer) - 1P with 18mm   Enclosure Material Steel   Height 1200mm   width 580mm   Depth 235mm    Internal Depth  168.7mm     IP Degree of Protection IP42  Main - MB224CM2x15 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment Earth /Neutral Terminal Block - 165 A  Pole filler Circuit schedule card Removable gland plates - top and bottom 2 Keys  TNA Chassis Enlosure Door   Colour Orange         Complementary  [Ie] Rated Operational Current 250 a         Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Number of Ways 1 way (incomer) - 3P 24 ways (outgoer) - 1P    Outgoer Pole Capacity 24 18mm   Height 750mm   width 580mm   Depth 235mm          IP Degree of Protection  IP42 Main - MB236DM2x15 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment Earth /Neutral Terminal Block - 165 A  Pole filler Circuit schedule card Removable gland plates - top and bottom 2 Keys  TNA Chassis Enlosure Door   Colour Orange         Complementary  [Ie] Rated Operational Current 250 a         Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Number of Ways 1 way (incomer) - 3P 36 ways (outgoer) - 1P    Outgoer Pole Capacity 36 18mm   Height 1000mm   width 580mm   Depth 235mm          IP Degree of Protection  IP42 Main - MB248DM2x15 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment Earth /Neutral Terminal Block - 165 A  Pole filler Circuit schedule card Removable gland plates - top and bottom 2 Keys  TNA Chassis Enlosure Door   Colour Orange         Complementary  [Ie] Rated Operational Current 250 a         Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Number of Ways 1 way (incomer) - 3P 48 ways (outgoer) - 1P    Outgoer Pole Capacity 48 18mm   Height 1000mm   width 580mm   Depth 235mm          IP Degree of Protection  IP42 Main - MB254EM2x15 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment Earth /Neutral Terminal Block - 165 A  Pole filler Circuit schedule card Removable gland plates - top and bottom 2 Keys  TNA Chassis Enlosure Door   Colour Orange         Complementary  [Ie] Rated Operational Current 250 a         Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Number of Ways 1 way (incomer) - 3P 54 ways (outgoer) - 1P    Outgoer Pole Capacity 54 18mm   Height 1200mm   width 580mm   Depth 235mm          IP Degree of Protection  IP42 Main - MB272EM2x15 Range of Product Acti 9   Product Name Acti 9 Isobar DB   Device Short Name MD   Product or Component type Distribution Board   Device Application Distribution   Enclosure Type Standard   Door Type External Plain   Provided Equipment Earth /Neutral Terminal Block - 165 A  Pole filler Circuit schedule card Removable gland plates - top and bottom 2 Keys  TNA Chassis Enlosure Door   Colour Orange         Complementary  [Ie] Rated Operational Current 250 a         Enclosure Mounting Surface   Poles Description 3P + n   Enclosure Material Metal   Number of Ways 1 way (incomer) - 3P 72 ways (outgoer) - 1P    Outgoer Pole Capacity 72 18mm   Height 1200mm   width 580mm   Depth 235mm          IP Degree of Protection  IP42
