Interface Modules

Description

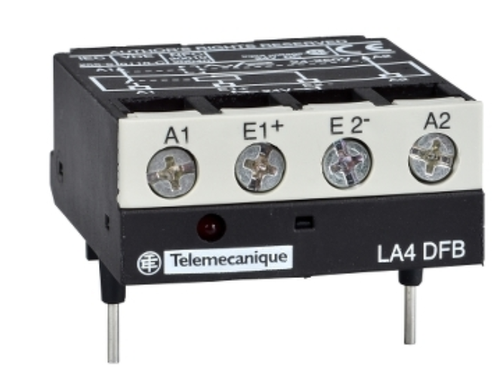

Main - LA4DFB range TeSys device short name LA4D poles description 3P product or component type Interface module product compatibility LC1D09...D150 Complementary mounting mode Top mounted technology type Electromechanical [Us] rated supply voltage 24 V DC control circuit voltage limits 17...30 V at 20 °C DC [Ui] rated insulation voltage 250 V - for control circuit conforming to IEC 60947-5-1 connections - terminals Control circuit: connector 1 cable(s) 1…2.5 mm²flexible with cable endControl circuit: connector 1 cable(s) 1…2.5 mm²flexible without cable endControl circuit: connector 1 cable(s) 1…2.5 mm²solid with cable endControl circuit: connector 1 cable(s) 1…2.5 mm²solid without cable endControl circuit: connector 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: connector 2 cable(s) 1…2.5 mm²flexible without cable endControl circuit: connector 2 cable(s) 1…2.5 mm²solid with cable endControl circuit: connector 2 cable(s) 1…2.5 mm²solid without cable end [Ue] rated operational voltage Control circuit: 24...250 V AC current consumption 25 mA 20 °C current state 0 guaranteed <= 2 mA voltage state 0 guaranteed < 2.4 V voltage state 1 guaranteed 17 V electrical durability 10 Mcycles at 240 V local signalling LED indicator height 12 mm net weight 0.05 kg Main - LA4DWB range TeSys device short name LA4D poles description 3P product or component type Interface module product compatibility LC1D09...D115 Complementary mounting mode Top mounted technology type Solid state [Us] rated supply voltage 24 V DC control circuit voltage limits 5...30 V at 20 °C DC [Ui] rated insulation voltage 250 V - for control circuit conforming to IEC 60947-5-1 connections - terminals Control circuit: connector 1 cable(s) 1…2.5 mm²flexible with cable endControl circuit: connector 1 cable(s) 1…2.5 mm²flexible without cable endControl circuit: connector 1 cable(s) 1…2.5 mm²solid with cable endControl circuit: connector 1 cable(s) 1…2.5 mm²solid without cable endControl circuit: connector 2 cable(s) 1…2.5 mm²flexible with cable endControl circuit: connector 2 cable(s) 1…2.5 mm²flexible without cable endControl circuit: connector 2 cable(s) 1…2.5 mm²solid with cable endControl circuit: connector 2 cable(s) 1…2.5 mm²solid without cable end [Ue] rated operational voltage Control circuit: 24...250 V ACControl circuit: 380...415 V AC current consumption 8.5...15 mA 20 °C current state 0 guaranteed <= 2 mA voltage state 0 guaranteed < 2.4 V voltage state 1 guaranteed 5 V electrical durability 20 Mcycles at 240 V local signalling LED indicator height 19 mm net weight 0.045 kg
