Intelligent Battery Charger Range

Description

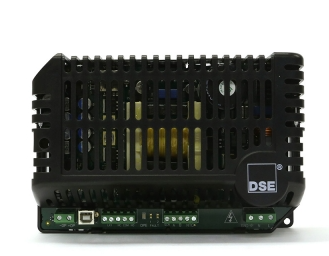

DSE9470 MKII 24 Volt 10 Amp Intelligent Battery Charger UL RECOGNISED (USA & Canada) - NFPA 20 (QWIR2) COMPLIANT The DSE9470 MKII is a UL recognised intelligent switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be DIN rail or chassis mounted and has three built-in LEDs to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.    OVERALL SIZE70 mm x 200 mm x 130 mm (2.7” x 7.9” x 5.1”)WEIGHT0.75kgPRODUCT VARIANTS9470-01 - 24 V 10 A Intelligent Battery Charger (USA - UL - 110 V - 250 V)9470-A4 - 24 V 10 A Intelligent Battery Charger (USA & Canada - UL - 110 V - 150 V) SPECIFICATION AC SUPPLY VOLTAGE RANGE90 V to 305 V (L-N) FREQUENCY RANGE48 Hz to 64 Hz (L-N) DC OUTPUT DSE9470 OUTPUT10 A DC at 24 V DC RIPPLE AND NOISE<1% EFFICIENCY>86% REGULATION LINE<0.5% LOAD2% TEMPERATURE SENSOR INPUT PT1000 PROTECTIONS Short CircuitDC Over VoltageDC Over CurrentReverse PolarityOver TemperatureAC Under & Over Voltage CHARGE FAILURE RELAY 3 A at 30 V DC volt free relay   DSE9473 24 volt, 15 amp Intelligent Battery Charger The DSE9473 is an intelligent 24 volt, 15 amp switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be Chassis or DIN Rail mounted and has three built-in LED's to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.    OVERALL SIZE80 mm x 205 mm x 135 mm (3.1" x 8.1" x 5.3")WEIGHT0.88 kgPRODUCT VARIANTS9473-01 - 9473 24 volt 15 amp Intelligent Battery Charger (90-305v 50/60Hz) SPECIFICATION AC SUPPLY VOLTAGE RANGE90 V to 305 V (L-N) FREQUENCY RANGE48 Hz to 64 Hz (L-N) DC OUTPUT DC OUTPUT15 A DC 24 V DC RIPPLE AND NOISE1% EFFICIENCY>90% REGULATION LINE<0.5% LOAD2% TEMPERATURE SENSOR INPUT PT1000 PROTECTIONS Short CircuitDC Over VoltageDC Over CurrentReverse PolarityOver TemperatureAC Under & Over Voltage CHARGE FAILURE RELAY 3 A 30 V DC volt free relay   DSE9476 24 Volt 20 Amp Intelligent Battery Charger The DSE9476 is an intelligent 24-volt, 20 amp switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life.    OVERALL SIZE183 mm x 233 mm x 76 mm (7.2” x 9.2” x 3.0”)WEIGHT1.8kgPRODUCT VARIANTS9476-01 - 24 V 20 A Intelligent Battery Charger SPECIFICATION AC SUPPLY VOLTAGE RANGE95 V to 305 V (L-N) FREQUENCY RANGE47 Hz to 63 Hz (L-N) DC OUTPUT DSE9476 OUTPUT20 A DC at 24 V DC RIPPLE AND NOISE<1% EFFICIENCY>92% REGULATION LINE<0.5% LOAD1% TEMPERATURE SENSOR INPUT PT1000 PROTECTIONS Short CircuitDC Under & Over VoltageDC Over CurrentReverse PolarityOver TemperatureAC Under & Over Voltage CHARGE FAILURE RELAY 3 A at 30 V DC volt free relay OPERATING TEMPERATURE RANGE -30 ˚C to +80 ˚C-22 ˚F to +176 ˚F STORAGE TEMPERATURE RANGE -40 ˚C to +85 ˚C-40 ˚F to +185 ˚F   DSE9474 24 Volt 30 Amp Intelligent Battery Charger The DSE9474 is an intelligent 24-volt, 30 amp CAN enabled switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be DIN rail or chassis mounted and has three built-in LEDs to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.    OVERALL SIZE240 mm x 263 mm x 89 mm (9.4” x 10.4” x 3.5”)WEIGHT2.5kgPRODUCT VARIANTS9474-01 - 24 volt 30 amp Intelligent Battery Charger (90-305v 50/60Hz) SPECIFICATION AC SUPPLY VOLTAGE RANGE90 V to 305 V (L-N) FREQUENCY RANGE48 Hz to 64 Hz (L-N) DC OUTPUT DSE9474 DC OUTPUT30 A DC 24 V DC RIPPLE AND NOISE1% EFFICIENCY>90% REGULATION LINE<0.5% LOAD1% TEMPERATURE SENSOR INPUT PT1000 PROTECTIONS Short CircuitDC Under & Over VoltageDC Over CurrentReverse PolarityOver TemperatureAC Under & Over Voltage CHARGE FAILURE RELAY 3 A 30 V DC volt free relay   BC2410Ei 12/24 Volt 10 Amp Enclosed Intelligent Battery Charger NFPA 110 (QWIR) COMPLIANT / UL LISTED The DSEBC2410Ei is an enclosed intelligent battery charger designed to work with multiple battery types across a wide range of applications. The advanced technology has been developed to automatically detect system settings and charging profiles including cell voltage and boost voltage to provide high-levels of charging support.    READ MORE OVERALL SIZE170 mm x 305 mm x 116 mm (6.7” x 12.0” x 4.6”)WEIGHT2.3kgPRODUCT VARIANTSBC2410Ei-01 - 12/24 Volt 10 Amp Enclosed Intelligent Battery Charger (Display)BC2410Ei-02 - 12/24 Volt 10 Amp Enclosed Intelligent Battery Charger (Display & Meters)BC2410Ei-03 - 12/24 Volt 10 Amp Enclosed Intelligent Battery Charger (Meters) SPECIFICATION AC SUPPLY VOLTAGE RANGE90 V to 305 V (L-N) FREQUENCY RANGE48 Hz to 64 Hz (L-N) DC OUTPUT RATING 10 A DC at 12 & 24 V DC RIPPLE AND NOISE<1% EFFICIENCY>86%REGULATION LINE<0.5% LOAD2% TEMPERATURE SENSOR INPUT PT1000 PROTECTIONS   Short CircuitDC Over VoltageDC Over CurrentReverse PolarityOver TemperatureAC Under & Over Voltage Battery Charger Failure CHARGE FAILURE RELAY 3 A at 30 V DC volt-free relay OPERATING TEMPERATURE RANGE -30° C to +55° C-22° F to +131° F OPERATING TEMPERATURE RANGE(DE-RATE TO OUTPUT) -30° C to +80° C-22° F to +176° F
