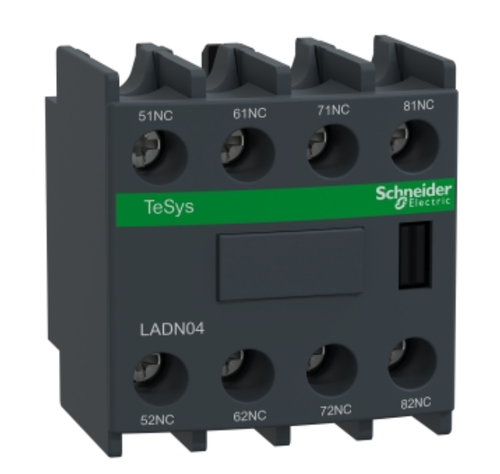

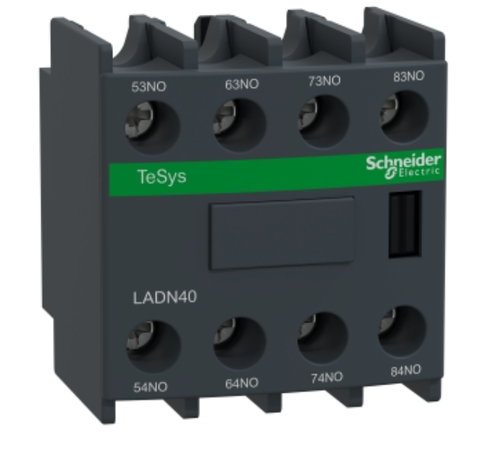

Instantaneous Auxiliary Contact Blocks

Description

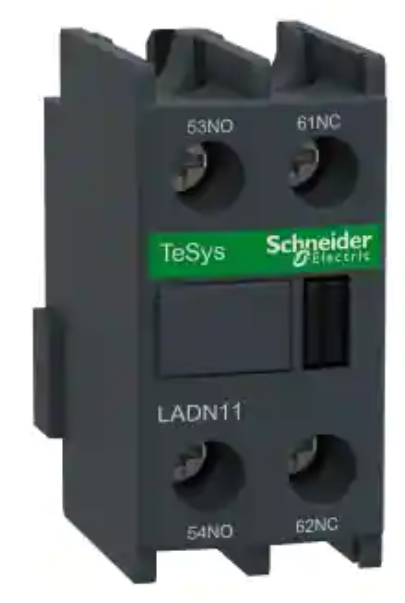

Main - LADN11 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Auxiliary contact block device short name LADN range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 1 NO + 1 NC Contacts operation Instantaneous [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 30 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 26 mm depth 42 mm Main - LADN20 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Auxiliary contact block device short name LADN range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 2 NO Contacts operation Instantaneous [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 30 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 26 mm depth 42 mm Main - LADN02 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Auxiliary contact block device short name LADN range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 2 NC Contacts operation Instantaneous [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 30 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 26 mm depth 42 mm Main - LADN22 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Auxiliary contact block device short name LADN range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 2 NO + 2 NC Contacts operation Instantaneous [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 30 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 42 mm net weight 0.05 kg Main - LADN13 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Auxiliary contact block device short name LADN range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 1 NO + 3 NC Contacts operation Instantaneous [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 30 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 42 mm net weight 0.05 kg Main - LADN40 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Auxiliary contact block device short name LADN range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 4 NO Contacts operation Instantaneous [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 30 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 42 mm net weight 0.05 kg Main - LADN04 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Auxiliary contact block device short name LADN range compatibility TeSys D LC1DTeSys D CADTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 4 NC Contacts operation Instantaneous [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 30 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 42 mm net weight 0.05 kg Main - LADN31 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Auxiliary contact block device short name LADN range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 3 NO + 1 NC Contacts operation Instantaneous [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 30 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 colour Dark grey height 48 mm width 44 mm depth 42 mm net weight 0.05 kg Main - LADC22 range TeSysTeSys Deca product name TeSys DTeSys Deca product or component type Auxiliary contact block range compatibility TeSys D CADTeSys D LC1DTeSys F LC1FTeSys F CR1FTeSys Deca CADTeSys Deca LC1D mounting location Front pole contact composition 2 NO + 2 NC Contacts operation Make before break 1 NO + 1 NCInstantaneous 1 NO + 1 NC [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1 product certifications IECEE CB Scheme (pending)ULCSAEAC Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 3 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact overlap time 1.5 ms insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 height 48 mm width 44 mm depth 42 mm net weight 0.05 kg Main - LAD8N11 range TeSys product name TeSys DTeSys Deca product or component type Auxiliary contact block range compatibility TeSys D LC1DTeSys D CADTeSys Deca CADTeSys Deca LC1D mounting location Side pole contact composition 1 NO + 1 NC Contacts operation Instantaneous [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 30 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 21.7 N.m - with screwdriver pozidriv No 2 height 76 mm width 12.5 mm depth 76 mm Main - LAD8N20 range TeSys product name TeSys DTeSys Deca product or component type Auxiliary contact block range compatibility TeSys D LC1DTeSys D CADTeSys Deca CADTeSys Deca LC1D mounting location Side pole contact composition 2 NO Contacts operation Instantaneous [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 30 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 21.7 N.m - with screwdriver pozidriv No 2 height 76 mm width 12.5 mm depth 76 mm Main - LAD8N02 range TeSys product name TeSys D product or component type Auxiliary contact block range compatibility TeSys D LC1DTeSys D CAD mounting location Side pole contact composition 2 NC Contacts operation Instantaneous [Ue] rated operational voltage 690 V AC 25...400 Hz [Ie] rated operational current 6 A at 120 V AC-151.04 A at 690 V AC-150.55 A at 125 V DC-130.1 A at 600 V DC-13 [Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1600 V conforming to UL 60947-5-1600 V conforming to CSA C22.2 No 60947-5-1 [Ith] conventional free air thermal current 10 A (at 60 °C) standards EN/IEC 60947-5-1UL 60947-5-1CSA C22.2 No 60947-5-1GB/T 14048.5 product certifications IECEE CB SchemeULCSACCCEACUKCA Complementary Irms rated making capacity 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1 permissible short-time rating 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms protection type GG fuse 10 A mechanical durability 30 Mcycles minimum switching current 5 mA minimum switching voltage 17 V non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact1.5 ms on energisation no overlap between NC and NO contact insulation resistance > 10 MOhm connections - terminals Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable endScrew clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable endScrew clamp terminals 1 cable(s) 1…2.5 mm²rigidScrew clamp terminals 2 cable(s) 1…2.5 mm²rigid tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 height 76 mm width 12.5 mm depth 76 mm
