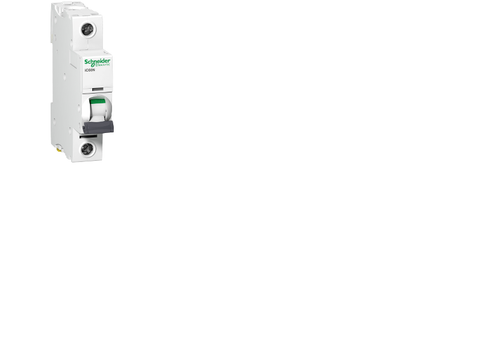

iC60H & iC60N - Miniature circuit breaker's
SKU: bc-588
$45.70
Currently out of stock — contact us for lead times
Description
Main - A9F55101 range Acti 9 product name Disbo iC60 product or component type Miniature circuit-breaker device short name IC60H poles description 1P number of protected poles 1 [In] rated current 1 A network type AC trip unit technology Thermal-magnetic curve code D breaking capacity 70 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-270 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-270 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-220 kA Icu at 12...48 V DC conforming to EN/IEC 60947-210 kA Icu at 72 V DC conforming to EN/IEC 60947-210000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1 utilisation category Category A conforming to EN/IEC 60947-2 Complementary for A9F55101 network frequency 50/60 Hz [Ue] rated operational voltage 240 V AC 50/60 Hz magnetic tripping limit 12 x In +/- 20 % [Ics] rated service breaking capacity 70 kA 100 % conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz70 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz70 kA 100 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz7500 A 75 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz20 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC10 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC limitation class 3 conforming to EN/IEC 60947-2 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 [Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2 contact position indicator Yes control type Toggle local signalling Trip indicator mounting mode Clip-on mounting support Rail 9 mm pitches 2 height 85 mm width 18 mm depth 78.5 mm net weight 0.125 kg colour White mechanical durability 20000 cycles electrical durability 10000 cycles provision for padlocking Padlockable connections - terminals Single terminal (top or bottom) 1…25 mm² rigidSingle terminal (top or bottom) 1…16 mm² flexible wire stripping length 14 mm for top or bottom connection tightening torque 2 N.m top or bottom earth-leakage protection Separate block Main - A9F55102 range Acti 9 product name Disbo iC60 product or component type Miniature circuit-breaker device short name IC60H poles description 1P number of protected poles 1 [In] rated current 2 A network type AC trip unit technology Thermal-magnetic curve code D breaking capacity 70 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-270 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-270 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-220 kA Icu at 12...48 V DC conforming to EN/IEC 60947-210 kA Icu at 72 V DC conforming to EN/IEC 60947-210000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1 utilisation category Category A conforming to EN/IEC 60947-2 Complementary for A9F55102 network frequency 50/60 Hz [Ue] rated operational voltage 240 V AC 50/60 Hz magnetic tripping limit 12 x In +/- 20 % [Ics] rated service breaking capacity 70 kA 100 % conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz70 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz70 kA 100 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz7500 A 75 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz20 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC10 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC limitation class 3 conforming to EN/IEC 60947-2 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 [Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2 contact position indicator Yes control type Toggle local signalling Trip indicator mounting mode Clip-on mounting support Rail 9 mm pitches 2 height 85 mm width 18 mm depth 78.5 mm net weight 0.125 kg colour White mechanical durability 20000 cycles electrical durability 10000 cycles provision for padlocking Padlockable connections - terminals Single terminal (top or bottom) 1…25 mm² rigidSingle terminal (top or bottom) 1…16 mm² flexible wire stripping length 14 mm for top or bottom connection tightening torque 2 N.m top or bottom earth-leakage protection Separate block Main - A9F55104 range Acti 9 product name Disbo iC60 product or component type Miniature circuit-breaker device short name IC60H poles description 1P number of protected poles 1 [In] rated current 4 A network type AC trip unit technology Thermal-magnetic curve code D breaking capacity 70 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-270 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-270 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-220 kA Icu at 12...48 V DC conforming to EN/IEC 60947-210 kA Icu at 72 V DC conforming to EN/IEC 60947-210000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1 utilisation category Category A conforming to EN/IEC 60947-2 Complementary for A9F55104 network frequency 50/60 Hz [Ue] rated operational voltage 240 V AC 50/60 Hz magnetic tripping limit 12 x In +/- 20 % [Ics] rated service breaking capacity 70 kA 100 % conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz70 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz70 kA 100 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz7500 A 75 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz20 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC10 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC limitation class 3 conforming to EN/IEC 60947-2 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 [Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2 contact position indicator Yes control type Toggle local signalling Trip indicator mounting mode Clip-on mounting support Rail 9 mm pitches 2 height 85 mm width 18 mm depth 78.5 mm net weight 0.125 kg colour White mechanical durability 20000 cycles electrical durability 10000 cycles provision for padlocking Padlockable connections - terminals Single terminal (top or bottom) 1…25 mm² rigidSingle terminal (top or bottom) 1…16 mm² flexible wire stripping length 14 mm for top or bottom connection tightening torque 2 N.m top or bottom earth-leakage protection Separate block Main - A9F44101 range Acti 9 product name Disbo iC60 product or component type Miniature circuit-breaker device short name IC60N poles description 1P number of protected poles 1 [In] rated current 1 A network type AC trip unit technology Thermal-magnetic curve code C breaking capacity 50 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-250 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-250 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-215 kA Icu at 12...48 V DC conforming to EN/IEC 60947-26 kA Icu at 72 V DC conforming to EN/IEC 60947-26000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1 utilisation category Category A conforming to EN/IEC 60947-2 Complementary for A9F44101 network frequency 50/60 Hz [Ue] rated operational voltage 240 V AC 50/60 Hz magnetic tripping limit 8 x In +/- 20 % [Ics] rated service breaking capacity 50 kA 100 % conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz50 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz50 kA 100 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz6000 A 100 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz15 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC6 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC limitation class 3 conforming to EN/IEC 60947-2 [Ui] rated insulation voltage 500 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2 contact position indicator Yes control type Toggle local signalling Trip indicator mounting mode Clip-on mounting support Rail 9 mm pitches 2 height 85 mm width 18 mm depth 78.5 mm net weight 0.125 kg colour White mechanical durability 20000 cycles electrical durability 10000 cycles provision for padlocking Padlockable connections - terminals Single terminal (top or bottom) 1…25 mm² rigidSingle terminal (top or bottom) 1…16 mm² flexible wire stripping length 14 mm for top or bottom connection tightening torque 2 N.m top or bottom earth-leakage protection Separate block Main - A9F44102 range Acti 9 product name Disbo iC60 product or component type Miniature circuit-breaker device short name IC60N poles description 1P number of protected poles 1 [In] rated current 2 A network type AC trip unit technology Thermal-magnetic curve code C breaking capacity 50 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-250 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-250 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-215 kA Icu at 12...48 V DC conforming to EN/IEC 60947-26 kA Icu at 72 V DC conforming to EN/IEC 60947-26000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1 utilisation category Category A conforming to EN/IEC 60947-2 Complementary for A9F44102 network frequency 50/60 Hz [Ue] rated operational voltage 240 V AC 50/60 Hz magnetic tripping limit 8 x In +/- 20 % [Ics] rated service breaking capacity 50 kA 100 % conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz50 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz50 kA 100 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz6000 A 100 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz15 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC6 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC limitation class 3 conforming to EN/IEC 60947-2 [Ui] rated insulation voltage 500 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2 contact position indicator Yes control type Toggle local signalling Trip indicator mounting mode Clip-on mounting support Rail 9 mm pitches 2 height 85 mm width 18 mm depth 78.5 mm net weight 0.125 kg colour White mechanical durability 20000 cycles electrical durability 10000 cycles provision for padlocking Padlockable connections - terminals Single terminal (top or bottom) 1…25 mm² rigidSingle terminal (top or bottom) 1…16 mm² flexible wire stripping length 14 mm for top or bottom connection tightening torque 2 N.m top or bottom earth-leakage protection Separate block Main - A9F44103 range Acti 9 product name Disbo iC60 product or component type Miniature circuit-breaker device short name IC60N poles description 1P number of protected poles 1 [In] rated current 3 A network type AC trip unit technology Thermal-magnetic curve code C breaking capacity 50 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-250 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-250 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-215 kA Icu at 12...48 V DC conforming to EN/IEC 60947-26 kA Icu at 72 V DC conforming to EN/IEC 60947-26000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1 utilisation category Category A conforming to EN/IEC 60947-2 Complementary for A9F44103 network frequency 50/60 Hz [Ue] rated operational voltage 240 V AC 50/60 Hz magnetic tripping limit 8 x In +/- 20 % [Ics] rated service breaking capacity 50 kA 100 % conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz50 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz50 kA 100 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz6000 A 100 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz15 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC6 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC limitation class 3 conforming to EN/IEC 60947-2 [Ui] rated insulation voltage 500 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2 contact position indicator Yes control type Toggle local signalling Trip indicator mounting mode Clip-on mounting support Rail 9 mm pitches 2 height 85 mm width 18 mm depth 78.5 mm net weight 0.125 kg colour White mechanical durability 20000 cycles electrical durability 10000 cycles provision for padlocking Padlockable connections - terminals Single terminal (top or bottom) 1…25 mm² rigidSingle terminal (top or bottom) 1…16 mm² flexible wire stripping length 14 mm for top or bottom connection tightening torque 2 N.m top or bottom earth-leakage protection Separate block
