Electronic Serial Timer Modules

Description

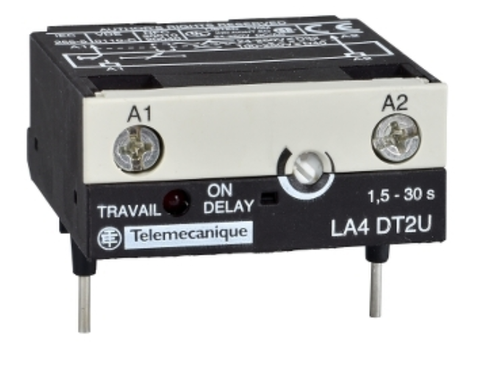

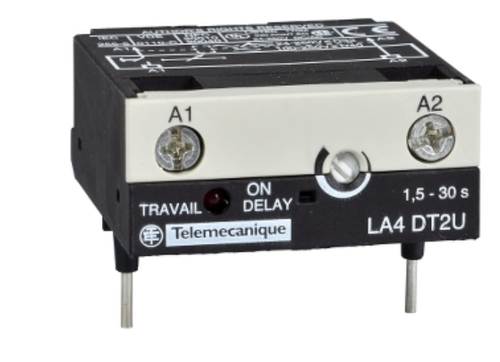

Main - LA4DTOU range TeSys product or component type Serial timer modules device short name LA4DT poles description 3P product compatibility LC1D09...D65ALC1D80...D150 Complementary mounting location Top [Uc] control circuit voltage 24...250 V AC 50/60 Hz24...250 V DC control circuit voltage limits By mechanical contact: 0.8...1.1 Uc [Ui] rated insulation voltage 250 V conforming to IEC 60947-1 connections - terminals Control circuit: connector 1 cable(s) 1 mm²flexible with cable endControl circuit: connector 1 cable(s) 1 mm²solid with cable endControl circuit: connector 2 cable(s) 2.5 mm²flexible without cable endControl circuit: connector 2 cable(s) 2.5 mm²solid without cable end electrical durability 30 Mcycles timer type On delay time delay range 0.1...2 s reset time 150 ms during time delay50 ms after time delay local signalling Illuminates during time delay by LED [Ures] residual voltage 3.3 V net weight 0.04 kg Main - LA4DT2U range TeSys product or component type Serial timer modules device short name LA4DT poles description 3P product compatibility 3 poles LC1D09...D384 poles LC1DT20...DT40 Complementary mounting location Top [Uc] control circuit voltage 24...250 V AC 50/60 Hz24...250 V DC control circuit voltage limits By mechanical contact: 0.8...1.1 Uc [Ui] rated insulation voltage 250 V conforming to IEC 60947-1 connections - terminals Control circuit: connector 1 cable(s) 1 mm²flexible with cable endControl circuit: connector 1 cable(s) 1 mm²solid with cable endControl circuit: connector 2 cable(s) 2.5 mm²flexible without cable endControl circuit: connector 2 cable(s) 2.5 mm²solid without cable end electrical durability 30 Mcycles timer type On delay time delay range 1.5...30 s reset time 150 ms during time delay50 ms after time delay local signalling Illuminates during time delay by LED [Ures] residual voltage 3.3 V net weight 0.04 kg Main - LA4DT4U range TeSys product or component type Serial timer modules device short name LA4DT poles description 3P product compatibility 4 poles LC1DT20...DT403 poles LC1D09...D38 Complementary mounting location Top [Uc] control circuit voltage 24...250 V AC 50/60 Hz24...250 V DC control circuit voltage limits By mechanical contact: 0.8...1.1 Uc [Ui] rated insulation voltage 250 V conforming to IEC 60947-1 connections - terminals Control circuit: connector 1 cable(s) 1 mm²flexible with cable endControl circuit: connector 1 cable(s) 1 mm²solid with cable endControl circuit: connector 2 cable(s) 2.5 mm²flexible without cable endControl circuit: connector 2 cable(s) 2.5 mm²solid without cable end electrical durability 30 Mcycles timer type On delay time delay range 25...500 s reset time 150 ms during time delay50 ms after time delay local signalling Illuminates during time delay by LED [Ures] residual voltage 3.3 V net weight 0.04 kg
