DSE 4000 Series

Description

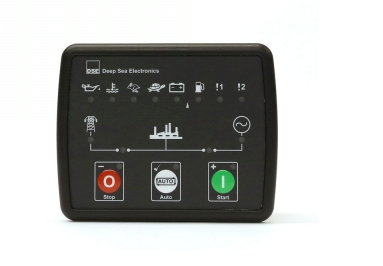

DSE4210 Auto Start Control Module The DSE4210 is an Auto Start Control Module that has been developed to provide an outstanding range of features within a compact module size.    OVERALL SIZE140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.7”) PANEL CUTOUT SIZE118 mm x 92 mm (4.6" x 3.6")MAXIMUM PANEL THICKNESS8.0 mm (0.3”)WEIGHT0.22kgPRODUCT VARIANTS4210-01 - 4210 Auto Start Control Module DSE4220 Auto Mains (Utility) Failure Control Modules The DSE4220 is an Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact module size.    OVERALL SIZE140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.7”) PANEL CUTOUT SIZE118 mm x 92 mm (4.6" x 3.6")MAXIMUM PANEL THICKNESS8.0 mm (0.3”)WEIGHT0.24kgPRODUCT VARIANTS4220-01 - 4220 Auto Mains (Utility) Failure Control Module DSE4510 MKII Auto Start Control Module The DSE4510 MKII is a compact Auto Start Control Module that has been developed to provide an outstanding range of features within a compact enclosure. New Features Added May 2020. Read Product Change Notification Document for details.    OVERALL SIZE140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”) PANEL CUTOUT SIZE118 mm x 92 mm (4.6" x 3.6")MAXIMUM PANEL THICKNESS8.0 mm (0.3”)WEIGHT0.26kgPRODUCT VARIANTS4510-05 - 4510 Auto Start Control Module (Ct, Rtc) DSE4510 MKII Auto Start Control Module The DSE4510 MKII is a compact Auto Start Control Module that has been developed to provide an outstanding range of features within a compact enclosure. New Features Added May 2020. Read Product Change Notification Document for details.    OVERALL SIZE140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”) PANEL CUTOUT SIZE118 mm x 92 mm (4.6" x 3.6")MAXIMUM PANEL THICKNESS8.0 mm (0.3”)WEIGHT0.26kgPRODUCT VARIANTS4510-05 - 4510 Auto Start Control Module (Ct, Rtc) DSE4520 MKII Auto Mains (Utility) Failure Control Module The DSE4520 MKII is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure. THE MODULE CAN BE CONFIGURED FOR USE AS AN AUTO START CONTROL MODULE.    OVERALL SIZE140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”) PANEL CUTOUT SIZE118 mm x 92 mm (4.6" x 3.6")MAXIMUM PANEL THICKNESS8.0 mm (0.3”)WEIGHT0.26kgPRODUCT VARIANTS4520-05 - 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc) DSE4610 Auto Start Control Module The DSE4610 is a compact Auto Start Control Module that has been developed to provide an outstanding range of features within a compact enclosure.    OVERALL SIZE140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”) PANEL CUTOUT SIZE118 mm x 92 mm (4.6" x 3.6")MAXIMUM PANEL THICKNESS8.0 mm (0.3”)WEIGHT0.28kgPRODUCT VARIANTS4610-03 - 4610 Auto Start Control Module (Mpu,Ct,Rtc) DSE4620 Auto Mains (Utility) Failure Control Modules The DSE4620 is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure.    OVERALL SIZE140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”) PANEL CUTOUT SIZE118 mm x 92 mm (4.6" x 3.6")MAXIMUM PANEL THICKNESS8.0 mm (0.3”)WEIGHT0.28kgPRODUCT VARIANTS4620-03 - 4620 Auto Mains (Utility) Failure Control Module (Mpu,Ct,Rtc)
