DSE 2000 Series

Description

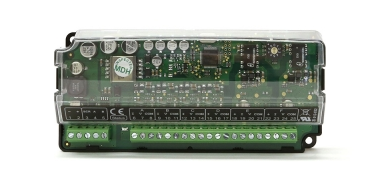

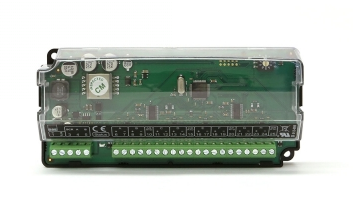

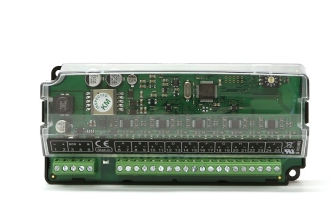

DSE2130 DSENet® Input (8) Expansion Module The DSE2130 is an input expansion module providing 8 additional inputs to the control module.  Four of these can be configured for use as analogue inputs.  Up to 4 x DSE2130 modules can be linked together to provide up to 32 additional inputs. OVERALL SIZE134 mm x 76 mm x 49 mm (5.3” x 3.0” x 1.9”) WEIGHT0.18kgPRODUCT VARIANTS2130-00 - 2130 Input Expansion Module DSE2131 DSENet® Ratiometric Input (10) Expansion Module The DSE2131 is a ratiometric input expansion module providing 10 additional inputs to the control module.  Up to 4 x DSE2131 modules can be linked together to provide up to 40 additional inputs. OVERALL SIZE 165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”) WEIGHT0.22kgPRODUCT VARIANTS2131-01 - 2131 Ratiometric Input Expansion Module DSE2133 DSENet® RTD/Thermocouple Input (8) Expansion Module The DSE2133 is an RTD/thermocouple input expansion module providing 8 additional inputs to the control module.  Up to 4 DSE2133 modules can be linked together to provide up to 32 additional inputs. OVERALL SIZE 165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”) WEIGHT0.22kgPRODUCT VARIANTS2133-01 - 2133 RTD/Thermocouple Input Expansion Module DSE2152 DSENet® Analogue Output (6) Expansion Module The DSE2152 is an analogue output expansion module providing 6 additional configurable outputs to the control system.  Up to 4 x DSE2152 modules can be linked together to provide up to 24 additional output options.  OVERALL SIZE 165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”) WEIGHT0.24kgPRODUCT VARIANTS2152-01 - 2152 Analogue Output Expansion Module DSE2157 DSENet® Output (8) Expansion Module The DSE2157 is an output relay expansion module providing 8 additional outputs to the control system. Up to 10 x DSE2157 modules can be linked to together to provide increased output options. OVERALL SIZE 165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”) WEIGHT0.28kgPRODUCT VARIANTS2157-01 - 2157 Output Expansion Module DSE2548 DSENet® LED Output (8) Expansion Module The DSE2548 is an output expansion module that can display a maximum of eight individual LED indications. Each indication is user configurable via the host module.  Up to 10 DSE2548 modules can be linked together to provide up to 80 additional LED outputs. OVERALL SIZE 180 mm x 116 mm x 43 mm (7.1” x 4.6” x 1.7”) PANEL CUTOUT SIZE154 mm x 98 mm (6.0” x 3.9”) MAXIMUM PANEL THICKNESS8.0mm (0.3”)WEIGHT0.36kgPRODUCT VARIANTS2548-01 - 2548 Output Expansion Module
