Detuned Reactors

Description

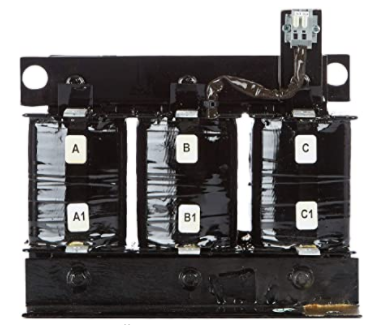

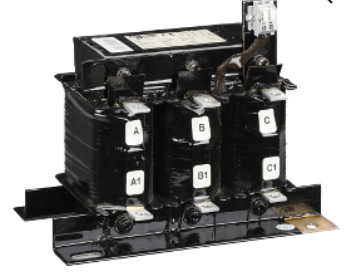

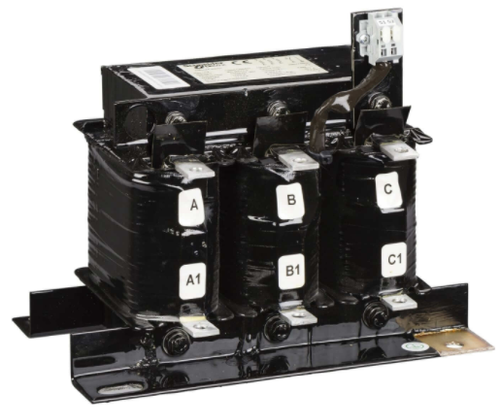

Main - LVR07065A40T range VarPlus device short name DR product or component type Detuned reactor network frequency 50 Hz reactive power rating 6.5 kvar for 400 V AC 50 Hz network rated voltage 400 V AC 50 Hz tuning order 3.8 - 190 Hz - 7 % - 50 Hz Complementary power losses (max) 100 W value of inductance 5.775 mH inductance tolerance - 5 % to 5 % per phase fundamental current rating 9.4 A RMS current rating 10.1 A electrical insulation class Class H [Ui] rated insulation voltage 1.1 kV dielectric test voltage 4 kV 50 Hz 1 minute [Imp] maximum permanent current 1.2 x I1 harmonic current spectrum 3.7 % x I338.2 % x I513.6 % x I74.9 % x I11 dynamic withstand current 2.2 x Isc [Ith] conventional free air thermal current 2 A at 250 V AC 50 Hz type of installation Indoor installation type of cooling Forced convection connections - terminals Pad terminal fixing center 200 x 125 mm height 220 mm width 240 mm depth 160 mm net weight 7.5 kg Main - LVR07125A40T range VarPlus device short name DR product or component type Detuned reactor network frequency 50 Hz reactive power rating 12.5 kvar for 400 V AC 50 Hz network rated voltage 400 V AC 50 Hz tuning order 3.8 - 190 Hz - 7 % - 50 Hz Complementary power losses (max) 150 W value of inductance 2.987 mH inductance tolerance - 5 % to 5 % per phase fundamental current rating 18 A RMS current rating 19.5 A electrical insulation class Class H [Ui] rated insulation voltage 1.1 kV dielectric test voltage 4 kV 50 Hz 1 minute [Imp] maximum permanent current 1.2 x I1 harmonic current spectrum 3.7 % x I338.2 % x I513.6 % x I74.9 % x I11 dynamic withstand current 2.2 x Isc [Ith] conventional free air thermal current 2 A at 250 V AC 50 Hz type of installation Indoor installation type of cooling Forced convection connections - terminals Pad terminal fixing center 200 x 125 mm height 220 mm width 240 mm depth 160 mm net weight 10 kg Main - LVR07250A40T range VarPlus device short name DR product or component type Detuned reactor network frequency 50 Hz reactive power rating 25 kvar for 400 V AC 50 Hz network rated voltage 400 V AC 50 Hz tuning order 3.8 - 190 Hz - 7 % - 50 Hz Complementary power losses (max) 200 W value of inductance 1.499 mH inductance tolerance - 5 % to 5 % per phase fundamental current rating 36.1 A RMS current rating 39 A electrical insulation class Class H [Ui] rated insulation voltage 1.1 kV dielectric test voltage 4 kV 50 Hz 1 minute [Imp] maximum permanent current 1.2 x I1 harmonic current spectrum 3.7 % x I338.2 % x I513.6 % x I74.9 % x I11 dynamic withstand current 2.2 x Isc [Ith] conventional free air thermal current 2 A at 250 V AC 50 Hz type of installation Indoor installation type of cooling Forced convection connections - terminals Pad terminal fixing center 200 x 125 mm height 220 mm width 240 mm depth 160 mm net weight 15 kg Main - LVR07500A40T range VarPlus device short name DR product or component type Detuned reactor network frequency 50 Hz reactive power rating 50 kvar for 400 V AC 50 Hz network rated voltage 400 V AC 50 Hz tuning order 3.8 - 190 Hz - 7 % - 50 Hz Complementary power losses (max) 320 W value of inductance 0.75 mH inductance tolerance - 5 % to 5 % per phase fundamental current rating 72.2 A RMS current rating 77.9 A electrical insulation class Class H [Ui] rated insulation voltage 1.1 kV dielectric test voltage 4 kV 50 Hz 1 minute [Imp] maximum permanent current 1.2 x I1 harmonic current spectrum 3.7 % x I338.2 % x I513.6 % x I74.9 % x I11 dynamic withstand current 2.2 x Isc [Ith] conventional free air thermal current 2 A at 250 V AC 50 Hz type of installation Indoor installation type of cooling Forced convection connections - terminals Pad terminal fixing center 200 x 125 mm height 270 mm width 260 mm depth 200 mm net weight 22 kg
