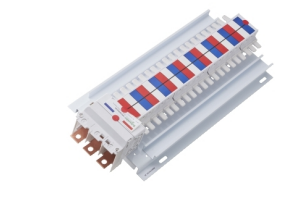

Chassis - 250A, 3 PH, 18mm for iC60 MCB & RCBOs

Description

Main – SAU25012183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  12 18mm  Location of Connection  Top  Length  110mm  Width  215mm  Bushbar Pitch  18mm  Main – SAU25018183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  18 18mm  Location of Connection  Top  Length  164mm  Width  215mm  Bushbar Pitch  18mm  Main – SAU25024183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  24 18mm  Location of Connection  Top  Length  218mm  Width  215mm  Bushbar Pitch  18mm  Main – SAU25030183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  30 18mm  Location of Connection  Top  Length  272mm  Width  215mm  Bushbar Pitch  18mm   Main – SAU25036183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  36 18mm  Location of Connection  Top  Length  326mm  Width  215mm  Bushbar Pitch  18mm   Main – SAU25042183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  42 18mm  Location of Connection  Top  Length  380mm  Width  215mm  Bushbar Pitch  18mm   Main – SAU25042183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  42 18mm  Location of Connection  Top  Length  380mm  Width  215mm  Bushbar Pitch  18mm   Main – SAU25048183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  48 18mm  Location of Connection  Top  Length  434mm  Width  215mm  Bushbar Pitch  18mm    Main – SAU25060183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  60 18mm  Location of Connection  Top  Length  542mm  Width  215mm  Bushbar Pitch  18mm    Main – SAU25072183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  72 18mm  Location of Connection  Top  Length  650mm  Width  215mm  Bushbar Pitch  18mm    Main – SAU25084183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  84 18mm  Location of Connection  Top  Length  758mm  Width  215mm  Bushbar Pitch  18mm    Main – SAU25096183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  96 18mm  Location of Connection  Top  Length  866mm  Width  215mm  Bushbar Pitch  18mm     Main – SAU250108183  Range of Product  Acti 9   Product or Component type  Chassis  Device Application  Distribution  Complementary  Range Compatibility  Distribution Board  Network Type  AC  [In] rated current  250 A  Short-Circuit Withstand  25 kA 0.1 s  Number of Ways  1 way (incomer) - 3P  Number of Poles  108 18mm  Location of Connection  Top  Length  674mm  Width  215mm  Bushbar Pitch  18mm
