Auxiliaries Compatible with iC60, iC60, ilD, iDPN Vigi
SKU: bc-594
$141.19
Currently out of stock — contact us for lead times
Description

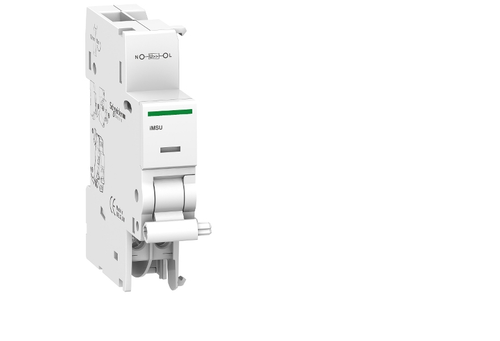

Main - A9A26500 range of product Acti 9 product or component type Overvoltage release device short name IMSU [Uc] control circuit voltage 230 V AC 50/60 Hz threshold tripping voltage 255 V275 V 3...15 s300 V 1...5 s350 V 0.25...0.75 s400 V 0.07...0.2 s 9 mm pitches 2 Complementary range compatibility Acti9 iC65Acti 9 ARAActi9 iDPN VigiActi9 iIDActi9 iSW-NAActi 9 RCAActi 9 iDPN (China version)Acti9 iC60 double terminals miniature circuit breakerActi 9 iC40 local signalling Action indicator mounting mode Clip-on mounting support DIN rail height 82.5 mm width 18 mm depth 68 mm colour White connections - terminals Clamp terminal - 1 cable(s) 0.5…4 mm² - flexibleClamp terminal1…6 mm² - rigid wire stripping length 10 mm tightening torque 1 N.m compatibility code IMSU Main - A9A26897 range of product Acti 9 product or component type OC and fault contact with PLC interface device short name IOF+SD 24 signal contacts composition 1 NO + 1 NC [In] rated current 2…100 mA: 24 V DC +/- 20 % 9 mm pitches 1 Complementary range compatibility Acti9 iSW-NAActi9 iC60Acti9 iC65Acti9 iC60 RCBOActi9 iIDActi 9 ARAActi 9 RCAActi 9 iDPN (China version)Acti9 iDPN Vigiconnectors Ti24Acti 9 iC40 [Ui] rated insulation voltage 500 V conforming to IEC 60664-1 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664-1 local signalling Mechanical indicator mounting mode Clip-on mounting support DIN rail height 88 mm width 9 mm depth 73.5 mm net weight 25 g colour White electrical durability 20000 cycles conforming to IEC 60947-5-4 connections - terminals Spring-loaded terminal Ti24 (top) 2 cable(s) 0.5…1.5 mm² - flexibleSpring-loaded terminal Ti24 (top) 2 cable(s) 0.5…1.5 mm² - rigid wire stripping length 10 mm Main - A9A26924 range of product Acti 9 product or component type OC contact device short name IOF signal contacts composition 1 C/O [In] rated current 6 A: 240 V AC - 50/60 Hz3 A: 415 V AC - 50/60 Hz2 A: 48 V DC1.5 A: 60 V DC1 A: 130 V DC6 A: 24 V DC 9 mm pitches 1 Complementary range compatibility Acti9 iSW-NAActi9 iC60Acti9 iC65Acti9 iC60 RCBOActi9 iIDActi 9 ARAActi 9 RCAActi 9 iDPN (China version)Acti9 iDPN VigiActi9 iSWActi 9 iC40 [Ui] rated insulation voltage 500 V [Uimp] rated impulse withstand voltage 4 kV mounting mode Clip-on mounting support DIN rail height 86 mm width 9 mm depth 73 mm net weight 32 g colour White connections - terminals Screw clamp terminal (bottom) 1 cable(s) 1…4 mm² - rigidScrew clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - flexibleScrew clamp terminal (bottom) 2 cable(s) 2.5 mm² - rigidScrew clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule wire stripping length 10 mm tightening torque 1 N.m Main - A9A26927 range of product Acti 9 product or component type Fault contact device short name ISD signal contacts composition 1 C/O [In] rated current 1 A: 130 V DC1.5 A: 60 V DC2 A: 48 V DC6 A: 24 V DC3 A: 415 V AC - 50/60 Hz6 A: 240 V AC - 50/60 Hz 9 mm pitches 1 Complementary range compatibility Acti9 iC60Acti9 iC65Acti9 iC60 RCBOActi9 iIDActi 9 ARAActi 9 RCAActi 9 iDPN (China version)Acti9 iDPN VigiActi 9 iC40Acti9 iSW-NA [Ui] rated insulation voltage 500 V [Uimp] rated impulse withstand voltage 4 kV local signalling Mechanical indicator mounting mode Clip-on mounting support DIN rail height 86 mm width 9 mm depth 73 mm net weight 33 g colour White connections - terminals Screw clamp terminal2 cable(s) 2.5 mm² - rigidScrew clamp terminal2 cable(s) 1.5 mm² - flexible with ferruleScrew clamp terminal1 cable(s) 0.5…2.5 mm² - flexibleScrew clamp terminal1 cable(s) 1…4 mm² - rigid wire stripping length 10 mm tightening torque 1 N.m Main - A9A26929 range of product Acti 9 product or component type Double OC or fault contact device short name IOF/SD+OF signal contacts composition 2 C/O [In] rated current 1 A: 130 V DC1.5 A: 60 V DC2 A: 48 V DC6 A: 24 V DC3 A: 415 V AC - 50/60 Hz6 A: 240 V AC - 50/60 Hz 9 mm pitches 1 Complementary range compatibility Acti9 iSW-NAActi9 iC60Acti9 iC65Acti9 iC60 RCBOActi9 iIDActi 9 ARAActi 9 RCAActi 9 iDPN (China version)Acti9 iDPN VigiActi 9 iC40 [Ui] rated insulation voltage 500 V [Uimp] rated impulse withstand voltage 4 kV local signalling Mechanical indicator mounting mode Fixed mounting support DIN rail height 90 mm width 9 mm depth 73 mm net weight 43 g colour White connections - terminals Screw clamp terminal2 cable(s) 2.5 mm² - rigidScrew clamp terminal2 cable(s) 1.5 mm² - flexible with ferruleScrew clamp terminal1 cable(s) 0.5…2.5 mm² - flexibleScrew clamp terminal1 cable(s) 1…4 mm² - rigid wire stripping length 10 mm tightening torque 1 N.m Main - A9A26946 range of product Acti 9 product or component type Shunt trip release with OC contact device short name IMX+OF signal contacts composition 1 C/O [Ie] rated operational current AC-12: 3 A at 415 V AC 50 HzAC-12: 6 A at 100 V AC 50 HzAC-12: 6 A at 230 V AC 50 HzDC-12: 1 A at 110 V DCDC-12: 1 A at 130 V DC [Uc] control circuit voltage 100...415 V AC 50/60 Hz110...130 V DC 9 mm pitches 2 Complementary range compatibility Acti9 iC65Acti 9 ARAActi9 iDPN VigiActi9 iIDActi9 iSW-NAActi 9 RCAActi 9 iDPN (China version)Acti9 iC60 double terminals miniature circuit breakerActi 9 iC40 local signalling Action indicator mounting mode Clip-on mounting support DIN rail width 18 mm colour White connections - terminals Clamp terminal - 2 cable(s) 2.5 mm² - flexible with cable endClamp terminal - 1 cable(s) 6 mm² - rigidClamp terminal - 2 cable(s) 2.5 mm² - rigidClamp terminal - 1 cable(s) 4 mm² - flexible tightening torque 1 N.m compatibility code IMX+OF Main - A9A26947 range of product Acti 9 product or component type Shunt trip release with OC contact device short name IMX+OF signal contacts composition 1 C/O [Ie] rated operational current AC-12: 2 A at 48 V AC 50 HzDC-12: 2 A at 48 V DC [Uc] control circuit voltage 48 V AC 50/60 Hz48 V DC 9 mm pitches 2 Complementary range compatibility Acti9 iC65Acti 9 ARAActi9 iDPN VigiActi9 iIDActi9 iSW-NAActi 9 RCAActi 9 iDPN (China version)Acti9 iC60 double terminals miniature circuit breakerActi 9 iC40 local signalling Action indicator mounting mode Clip-on mounting support DIN rail width 18 mm colour White connections - terminals Clamp terminal - 1 cable(s) 5 mm² - rigidClamp terminal - 2 cable(s) 2.4 mm² - rigidClamp terminal - 1 cable(s) 3 mm² - flexibleClamp terminal - 2 cable(s) 2.4 mm² - flexible with cable end tightening torque 1 N.m compatibility code IMX+OF Main - A9A26948 range of product Acti 9 product or component type Shunt trip release with OC contact device short name IMX+OF signal contacts composition 1 C/O [Ie] rated operational current AC-12: 6 A at 12 V AC 50 HzAC-12: 6 A at 24 V AC 50 HzDC-12: 6 A at 12 V DCDC-12: 6 A at 24 V DC [Uc] control circuit voltage 12...24 V AC 50/60 Hz12...24 V DC 9 mm pitches 2 Complementary range compatibility Acti9 iC65Acti 9 ARAActi9 iDPN VigiActi9 iIDActi9 iSW-NAActi 9 RCAActi 9 iDPN (China version)Acti9 iC60 double terminals miniature circuit breakerActi 9 iC40 local signalling Action indicator mounting mode Clip-on mounting support DIN rail width 18 mm colour White connections - terminals Clamp terminal - 2 cable(s) 2.5 mm² - flexible with cable endClamp terminal - 1 cable(s) 6 mm² - rigidClamp terminal - 2 cable(s) 2.5 mm² - rigidClamp terminal - 1 cable(s) 4 mm² - flexible tightening torque 1 N.m compatibility code IMX+OF Main - A9A26960 range of product Acti 9 product or component type Undervoltage release device short name IMN [Uc] control circuit voltage 220...240 V AC 50/60 Hz control type Standard 9 mm pitches 2 Complementary range compatibility Acti9 iC65Acti 9 ARAActi9 iDPN VigiActi9 iIDActi9 iSW-NAActi 9 RCAActi 9 iDPN (China version)Acti9 iC60 double terminals miniature circuit breakerActi 9 iC40 local signalling Action indicator mounting mode Clip-on mounting support DIN rail width 18 mm colour White connections - terminals Clamp terminal - 1 cable(s) 8 mm² - rigidClamp terminal - 2 cable(s) 2.7 mm² - rigidClamp terminal - 1 cable(s) 6 mm² - flexibleClamp terminal - 2 cable(s) 2.7 mm² - flexible with cable end tightening torque 1 N.m compatibility code IMN Main - A9A26961 range of product Acti 9 product or component type Undervoltage release device short name IMN [Uc] control circuit voltage 48 V AC 50/60 Hz48 V DC control type Standard 9 mm pitches 2 Complementary range compatibility Acti9 iC65Acti 9 ARAActi9 iDPN VigiActi9 iIDActi9 iSW-NAActi 9 RCAActi 9 iDPN (China version)Acti9 iC60 double terminals miniature circuit breakerActi 9 iC40 local signalling Action indicator mounting mode Clip-on mounting support DIN rail width 18 mm colour White connections - terminals Clamp terminal - 1 cable(s) 9 mm² - rigidClamp terminal - 2 cable(s) 2.8 mm² - rigidClamp terminal - 1 cable(s) 7 mm² - flexibleClamp terminal - 2 cable(s) 2.8 mm² - flexible with cable end tightening torque 1 N.m compatibility code IMN Main - A9A26963 range of product Acti 9 product or component type Undervoltage release device short name IMNs [Uc] control circuit voltage 220...240 V AC 50/60 Hz control type Delayed 9 mm pitches 2 Complementary range compatibility Acti9 iC65Acti 9 ARAActi9 iDPN VigiActi9 iIDActi9 iSW-NAActi 9 RCAActi 9 iDPN (China version)Acti9 iC60 double terminals miniature circuit breakerActi 9 iC40 local signalling Action indicator mounting mode Clip-on mounting support DIN rail width 18 mm colour White connections - terminals Clamp terminal - 1 cable(s) 10 mm² - rigidClamp terminal - 2 cable(s) 2.9 mm² - rigidClamp terminal - 1 cable(s) 8 mm² - flexibleClamp terminal - 2 cable(s) 2.9 mm² - flexible with cable end tightening torque 1 N.m compatibility code IMNs Main - A9A26969 range of product Acti 9 product or component type Undervoltage release device short name IMNx [Uc] control circuit voltage 220...240 V AC 50/60 Hz control type With external feeding 9 mm pitches 2 Complementary range compatibility Acti9 iC65Acti 9 ARAActi9 iDPN VigiActi9 iIDActi9 iSW-NAActi 9 RCAActi 9 iDPN (China version)Acti9 iC60 double terminals miniature circuit breakerActi 9 iC40 local signalling Action indicator mounting mode Clip-on mounting support DIN rail width 18 mm colour White connections - terminals Clamp terminal - 1 cable(s) 11 mm² - rigidClamp terminal - 2 cable(s) 2.1 mm² - rigidClamp terminal - 1 cable(s) 9 mm² - flexibleClamp terminal - 2 cable(s) 2.1 mm² - flexible with cable end tightening torque 1 N.m compatibility code IMNx Main - A9A26971 range of product Acti 9 product or component type Undervoltage release device short name IMNx [Uc] control circuit voltage 380...415 V AC 50/60 Hz control type With external feeding 9 mm pitches 2 Complementary range compatibility Acti9 iC65Acti 9 ARAActi9 iDPN VigiActi9 iIDActi9 iSW-NAActi 9 RCAActi 9 iDPN (China version)Acti9 iC60 double terminals miniature circuit breakerActi 9 iC40 local signalling Action indicator mounting mode Clip-on mounting support DIN rail width 18 mm colour White connections - terminals Clamp terminal - 1 cable(s) 12 mm² - rigidClamp terminal - 2 cable(s) 2.11 mm² - rigidClamp terminal - 1 cable(s) 10 mm² - flexibleClamp terminal - 2 cable(s) 2.11 mm² - flexible with cable end tightening torque 1 N.m compatibility code IMNx
