Acti9 STI - Fuse-disconnector

Description

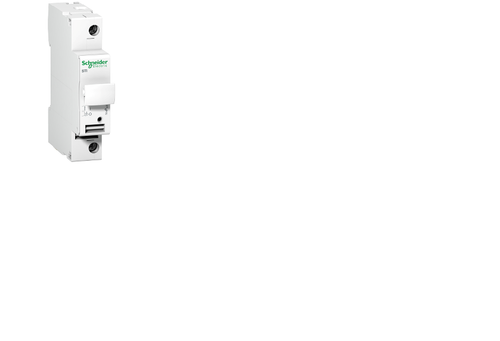

Main - A9N15636 range Acti 9   product name Acti9 STI   product or component type Fuse-disconnector   device short name STI   poles description 1P   Complementary for A9N15636 [In] rated current 2 A4 A6 A10 A16 A20 A25 A   fuse curve AMGG   fuse size 10.3 x 38 mm   [Ue] rated operational voltage 500 V AC   [Ui] rated insulation voltage 500 V AC 50/60 Hz   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 2   height 81 mm   width 18 mm   depth 75 mm   colour White   connections - terminals Screw clamp terminals1 cable(s) 0.75…10 mm² rigidScrew clamp terminals1 cable(s) 0.5…6 mm² flexibleScrew clamp terminals2 cable(s) 0.75…4 mm² rigidScrew clamp terminals2 cable(s) 0.5…6 mm² flexible   wire stripping length 12 mm   tightening torque 2 N.m   Main - A9N15646 range Acti 9   product name Acti9 STI   product or component type Fuse-disconnector   device short name STI   poles description 1P + N   Complementary for A9N15646 [In] rated current 2 A4 A6 A10 A16 A20 A25 A   fuse curve AMGG   fuse size 10.3 x 38 mm   [Ue] rated operational voltage 500 V AC   [Ui] rated insulation voltage 500 V AC 50/60 Hz   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 2   height 81 mm   width 18 mm   depth 75 mm   colour White   connections - terminals Screw clamp terminals1 cable(s) 0.75…10 mm² rigidScrew clamp terminals1 cable(s) 0.5…6 mm² flexibleScrew clamp terminals2 cable(s) 0.75…4 mm² rigidScrew clamp terminals2 cable(s) 0.5…6 mm² flexible   wire stripping length 12 mm   tightening torque 2 N.m   Main - A9N15651 range Acti 9   product name Acti9 STI   product or component type Fuse-disconnector   device short name STI   poles description 2P   Complementary for A9N15651 [In] rated current 2 A4 A6 A10 A16 A20 A25 A   fuse curve AMGG   fuse size 10.3 x 38 mm   [Ue] rated operational voltage 500 V AC   [Ui] rated insulation voltage 500 V AC 50/60 Hz   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 4   height 81 mm   width 36 mm   depth 75 mm   colour White   connections - terminals Screw clamp terminals1 cable(s) 0.75…10 mm² rigidScrew clamp terminals1 cable(s) 0.5…6 mm² flexibleScrew clamp terminals2 cable(s) 0.75…4 mm² rigidScrew clamp terminals2 cable(s) 0.5…6 mm² flexible   wire stripping length 12 mm   tightening torque 2 N.m   Main - A9N15656 range Acti 9   product name Acti9 STI   product or component type Fuse-disconnector   device short name STI   poles description 3P   Complementary for A9N15656 [In] rated current 2 A4 A6 A10 A16 A20 A25 A   fuse curve GGAM   fuse size 10.3 x 38 mm   [Ue] rated operational voltage 500 V AC   [Ui] rated insulation voltage 500 V AC 50/60 Hz   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 6   height 81 mm   width 54 mm   depth 75 mm   colour White   connections - terminals Screw clamp terminals1 cable(s) 0.75…10 mm² rigidScrew clamp terminals1 cable(s) 0.5…6 mm² flexibleScrew clamp terminals2 cable(s) 0.75…4 mm² rigidScrew clamp terminals2 cable(s) 0.5…6 mm² flexible   wire stripping length 12 mm   tightening torque 2 N.m Main - A9N15658 range Acti 9   product name Acti9 STI   product or component type Fuse-disconnector   device short name STI   poles description 3P + N   Complementary for A9N15658 [In] rated current 2 A4 A6 A10 A16 A20 A25 A   fuse curve AMGG   fuse size 10.3 x 38 mm   [Ue] rated operational voltage 500 V AC   [Ui] rated insulation voltage 500 V AC 50/60 Hz   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 6   height 81 mm   width 54 mm   depth 75 mm   colour White   connections - terminals Screw clamp terminals1 cable(s) 0.75…10 mm² rigidScrew clamp terminals1 cable(s) 0.5…6 mm² flexibleScrew clamp terminals2 cable(s) 0.75…4 mm² rigidScrew clamp terminals2 cable(s) 0.5…6 mm² flexible   wire stripping length 12 mm   tightening torque 2 N.m
