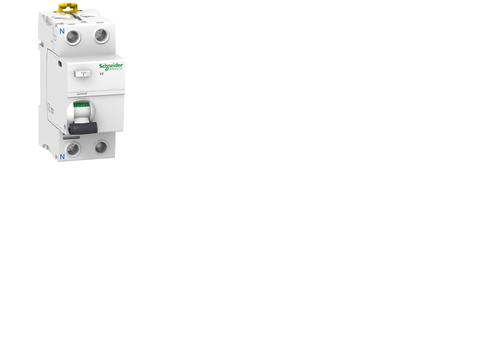

ACTI9 - Residual current circuit breaker (RCCB)

Description

Main - A9R21291 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 2P   neutral position Left   [In] rated current 100 A   network type AC   earth-leakage sensitivity 30 mA   earth-leakage protection time delay Instantaneous   earth-leakage protection class Type A   Complementary for A9R21291 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 220...240 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   surge current 250 A   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 4   height 91 mm   width 36 mm   depth 73.5 mm   net weight 0.21 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 10000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom Main - A9R21480 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 4P   neutral position Left   [In] rated current 80 A   network type AC   earth-leakage sensitivity 30 mA   earth-leakage protection time delay Instantaneous   earth-leakage protection class Type A   Complementary for A9R21480 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 380...415 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 8   height 91 mm   width 72 mm   depth 73.5 mm   net weight 0.37 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 10000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom   Main - A9R21491 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 4P   neutral position Left   [In] rated current 100 A   network type AC   earth-leakage sensitivity 30 mA   earth-leakage protection time delay Instantaneous   earth-leakage protection class Type A   Complementary for A9R21591 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 380...415 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   surge current 250 A   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 8   height 91 mm   width 72 mm   depth 73.5 mm   net weight 0.37 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 10000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom Main - A9R24480 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 4P   neutral position Left   [In] rated current 80 A   network type AC   earth-leakage sensitivity 300 mA   earth-leakage protection time delay Instantaneous   earth-leakage protection class Type A   Complementary for A9R24480 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 380...415 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 8   height 91 mm   width 72 mm   depth 73.5 mm   net weight 0.37 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 10000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom   Main - A9R25263 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 2P   neutral position Left   [In] rated current 63 A   network type AC   earth-leakage sensitivity 300 mA   earth-leakage protection time delay Selective   earth-leakage protection class Type A   Complementary for A9R25263 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 220...240 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 4   height 91 mm   width 36 mm   depth 73.5 mm   net weight 0.21 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 15000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom   Main - A9R25291 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 2P   neutral position Left   [In] rated current 100 A   network type AC   earth-leakage sensitivity 300 mA   earth-leakage protection time delay Selective   earth-leakage protection class Type A   Complementary for A9R25291 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 220...240 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 4   height 91 mm   width 36 mm   depth 73.5 mm   net weight 0.21 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 10000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom Main - A9R25463 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 4P   neutral position Left   [In] rated current 63 A   network type AC   earth-leakage sensitivity 300 mA   earth-leakage protection time delay Selective   earth-leakage protection class Type A   Complementary for A9R25463 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 380...415 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 8   height 91 mm   width 72 mm   depth 73.5 mm   net weight 0.37 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 15000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom Main - A9R25480 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 4P   neutral position Left   [In] rated current 80 A   network type AC   earth-leakage sensitivity 300 mA   earth-leakage protection time delay Selective   earth-leakage protection class Type A   Complementary for A9R25480 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 380...415 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 8   height 91 mm   width 72 mm   depth 73.5 mm   net weight 0.37 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 10000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom Main - A9R25491 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 4P   neutral position Left   [In] rated current 100 A   network type AC   earth-leakage sensitivity 300 mA   earth-leakage protection time delay Selective   earth-leakage protection class Type A   Complementary for A9R25491 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 380...415 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 8   height 91 mm   width 72 mm   depth 73.5 mm   net weight 0.37 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 10000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom   Main - A9R51263 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 2P   neutral position Left   [In] rated current 63 A   network type AC   earth-leakage sensitivity 30 mA   earth-leakage protection time delay Instantaneous   earth-leakage protection class Type A   Complementary for A9R51263 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 220...240 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   surge current 250 A   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 4   height 91 mm   width 36 mm   depth 73.5 mm   net weight 0.21 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 15000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom   Main - A9R51440 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 4P   neutral position Left   [In] rated current 40 A   network type AC   earth-leakage sensitivity 30 mA   earth-leakage protection time delay Instantaneous   earth-leakage protection class Type A   Complementary for A9R51440 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 380...415 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   surge current 250 A   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 8   height 91 mm   width 72 mm   depth 73.5 mm   net weight 0.37 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 15000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom Main - A9R51463 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 4P   neutral position Left   [In] rated current 63 A   network type AC   earth-leakage sensitivity 30 mA   earth-leakage protection time delay Instantaneous   earth-leakage protection class Type A   Complementary for A9R51463 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 380...415 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   surge current 250 A   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 8   height 91 mm   width 72 mm   depth 73.5 mm   net weight 0.37 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 15000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom Main - APR35263 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 2P   neutral position Left   [In] rated current 63 A   network type AC   earth-leakage sensitivity 300 mA   earth-leakage protection time delay Selective   earth-leakage protection class Type A-SI (Super Immunised)   Complementary for A9R35263 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 220...240 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 4   height 91 mm   width 36 mm   depth 73.5 mm   net weight 0.21 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 15000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom Main - A9R35463 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 4P   neutral position Left   [In] rated current 63 A   network type AC   earth-leakage sensitivity 300 mA   earth-leakage protection time delay Selective   earth-leakage protection class Type A-SI (Super Immunised)   Complementary for A9R35463 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 380...415 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 8   height 91 mm   width 72 mm   depth 73.5 mm   net weight 0.37 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 15000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom Main - A9R91263 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 2P   neutral position Left   [In] rated current 63 A   network type AC   earth-leakage sensitivity 30 mA   earth-leakage protection time delay Instantaneous   earth-leakage protection class Type A-SI (Super Immunised)   Complementary for A9R91263 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 220...240 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   surge current 3000 A   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 4   height 91 mm   width 36 mm   depth 73.5 mm   net weight 0.21 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 15000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom Main - A9R91463 range Acti 9   product name Acti9 iID   product or component type Residual current circuit breaker (RCCB)   device short name IID   poles description 4P   neutral position Left   [In] rated current 63 A   network type AC   earth-leakage sensitivity 30 mA   earth-leakage protection time delay Instantaneous   earth-leakage protection class Type A-SI (Super Immunised)   Complementary for A9R91463 device location in system Outgoer   network frequency 50/60 Hz   [Ue] rated operational voltage 380...415 V AC 50/60 Hz   residual current tripping technology Voltage independent   rated breaking and making capacity Idm 1500 AIm 1500 A   rated conditional short-circuit current 10 kA   [Ui] rated insulation voltage 500 V AC 50/60 Hz   [Uimp] rated impulse withstand voltage 6 kV   surge current 3000 A   contact position indicator Yes   control type Toggle   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 8   height 91 mm   width 72 mm   depth 73.5 mm   net weight 0.37 kg   colour White   mechanical durability 20000 cycles   electrical durability AC-1: 15000 cycles   locking options description Padlocking device   connections - terminals Single terminal top or bottom 1…35 mm² rigidSingle terminal top or bottom 1…25 mm² flexibleSingle terminal top or bottom 1…25 mm² flexible with ferrule   wire stripping length 14 mm for top or bottom connection   tightening torque 3.5 N.m top or bottom
