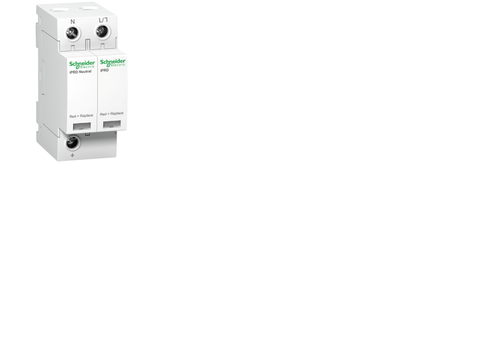

Acti9 iPRD - Surge arrester with pluggable cartridge

Description

Main - A9L65101 range of product Acti 9   product name Acti9 iPRD   product or component type Surge arrester with pluggable cartridge   device short name IPRD65r   device application Distribution   poles description 1P   remote signalling With   signal contacts composition 1 SD (1 C/O)   surge arrester type Electrical distribution network   earthing system IT 230TN-C   Complementary for A9L65101 surge arrester class type Type 2   surge arrester technology MOV   [Ue] rated operational voltage 230/400 V AC (+/- 10 %) at 50/60 Hz   [In] nominal discharge current Common mode: 20 kA (L/PE)Common mode: 20 kA (N/PE)   [Imax] maximum discharge current Common mode: 65 kA L/PE   [Uc] maximum continuous operating voltage Common mode: 350 V L/PECommon mode: 350 V N/PE   maximum [Up] voltage protection level Common mode <1.5 kV type 2 L/PE   [Ut] temporary overvoltage 337 V L/N 5 s withstand1200 V N/PE 200 ms safe failure mode   disconnector device type Associated circuit breaker IC60N 50 A curve C - Icu 10 kAAssociated circuit breaker iC60H 50 A curve C - Icu 15 kAAssociated circuit breaker NG125N 50 A curve C - Icu 25 kAAssociated circuit breaker NG125H 100 A curve C - Icu 36 kAAssociated circuit breaker NG125L 100 A curve C - Icu 50 kAAssociated fuse gG 80 A - Icu 50 kA   [Isccr] short-circuit current rating 50 kA   signalling circuit voltage 0.25 A/250 V AC 50/60 Hz   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 2   height 85 mm   width 18 mm   depth 69 mm   net weight 0.136 kg   colour White (RAL 9003)   response time <= 25 ns   [Ipe] Ground residual current 0.003 mA0.6 mA   connections - terminals Tunnel type terminal (downside) 2.5…35 mm²Tunnel type terminal (upside) 2.5…35 mm²   tightening torque 2.5 N.m Main - A9L65301 range of product Acti 9   product name Acti9 iPRD   product or component type Surge arrester with pluggable cartridge   device short name IPRD65r   device application Distribution   poles description 3P   remote signalling With   signal contacts composition 1 SD (1 C/O)   surge arrester type Electrical distribution network   earthing system TN-CIT 230   Complementary for A9L65301 surge arrester class type Type 2   surge arrester technology MOV + GDT   [Ue] rated operational voltage 230/400 V AC (+/- 10 %) at 50/60 Hz   [In] nominal discharge current Common mode: 20 kA (L/PE)Common mode: 20 kA (N/PE)Differential mode: 20 kA (L/N)   [Imax] maximum discharge current Common mode: 65 kA L/PECommon mode: 65 kA N/PEDifferential mode: 65 kA L/N   [Uc] maximum continuous operating voltage Common mode: 260 V N/PECommon mode: 350 V L/PEDifferential mode: 350 V L/N   maximum [Up] voltage protection level Common mode <1.5 kV type 2 N/PEDifferential mode <1.5 kV type 2 L/N   [Ut] temporary overvoltage 337 V L/N 5 s withstand1200 V N/PE 200 ms safe failure mode   disconnector device type Associated circuit breaker IC60N 50 A curve C - Icu 10 kAAssociated circuit breaker iC60H 50 A curve C - Icu 15 kAAssociated circuit breaker NG125N 50 A curve C - Icu 25 kAAssociated circuit breaker NG125H 100 A curve C - Icu 36 kAAssociated circuit breaker NG125L 100 A curve C - Icu 50 kAAssociated fuse gG 80 A - Icu 50 kA   [Isccr] short-circuit current rating 50 kA   signalling circuit voltage 0.25 A/250 V AC 50/60 Hz   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 6   height 85 mm   width 72 mm   depth 69 mm   net weight 0.393 kg   colour White (RAL 9003)   response time <= 25 ns   [Ipe] Ground residual current 0.6 mA0.003 mA   connections - terminals Tunnel type terminal (downside) 2.5…35 mm²Tunnel type terminal (upside) 2.5…35 mm²   tightening torque 2.5 N.m Main - A9L65501 range of product Acti 9   product name Acti9 iPRD   product or component type Surge arrester with pluggable cartridge   device short name IPRD65r   device application Distribution   poles description 1P + N   remote signalling With   signal contacts composition 1 SD (1 C/O)   surge arrester type Electrical distribution network   earthing system TN-STT   Complementary for A9L65501 surge arrester class type Type 2   surge arrester technology MOV + GDT   [Ue] rated operational voltage 230/400 V AC (+/- 10 %) at 50/60 Hz   [In] nominal discharge current Common mode: 20 kA (L/PE)Common mode: 20 kA (N/PE)Differential mode: 20 kA (L/N)   [Imax] maximum discharge current Common mode: 65 kA L/PECommon mode: 65 kA N/PEDifferential mode: 65 kA L/N   [Uc] maximum continuous operating voltage Common mode: 260 V N/PECommon mode: 350 V L/PEDifferential mode: 350 V L/N   maximum [Up] voltage protection level Common mode <1.5 kV type 2 N/PEDifferential mode <1.5 kV type 2 L/N   [Ut] temporary overvoltage 337 V L/N 5 s withstand1200 V N/PE 200 ms safe failure mode442 V L/PE 5 s withstand1453 V L/PE 200 ms safe failure mode   disconnector device type Associated circuit breaker IC60N 50 A curve C - Icu 10 kAAssociated circuit breaker iC60H 50 A curve C - Icu 15 kAAssociated circuit breaker NG125N 50 A curve C - Icu 25 kAAssociated circuit breaker NG125H 100 A curve C - Icu 36 kAAssociated circuit breaker NG125L 100 A curve C - Icu 50 kAAssociated fuse gG 80 A - Icu 50 kA   [Isccr] short-circuit current rating 50 kA   signalling circuit voltage 0.25 A/250 V AC 50/60 Hz   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 4   height 85 mm   width 36 mm   depth 69 mm   net weight 0.238 kg   colour White (RAL 9003)   response time <= 25 ns   [Ipe] Ground residual current 0.003 mA0.6 mA   connections - terminals Tunnel type terminal (downside) 2.5…35 mm²Tunnel type terminal (upside) 2.5…35 mm²   tightening torque 2.5 N.m Main - A9L65601 range of product Acti 9   product name Acti9 iPRD   product or component type Surge arrester with pluggable cartridge   device short name IPRD65r   device application Distribution   poles description 3P + N   remote signalling With   signal contacts composition 1 SD (1 C/O)   surge arrester type Electrical distribution network   earthing system TN-STT   Complementary for A9L65601 surge arrester class type Type 2   surge arrester technology MOV + GDT   [Ue] rated operational voltage 230/400 V AC (+/- 10 %) at 50/60 Hz   [In] nominal discharge current Common mode: 20 kA (L/PE)Common mode: 20 kA (N/PE)Differential mode: 20 kA (L/N)   [Imax] maximum discharge current Common mode: 65 kA L/PECommon mode: 65 kA N/PEDifferential mode: 65 kA L/N   [Uc] maximum continuous operating voltage Common mode: 260 V N/PECommon mode: 350 V L/PEDifferential mode: 350 V L/N   maximum [Up] voltage protection level Common mode <1.5 kV type 2 N/PEDifferential mode <1.5 kV type 2 L/N   [Ut] temporary overvoltage 337 V L/N 5 s withstand1200 V N/PE 200 ms safe failure mode442 V L/PE 5 s withstand1453 V L/PE 200 ms safe failure mode   disconnector device type Associated circuit breaker IC60N 50 A curve C - Icu 10 kAAssociated circuit breaker iC60H 50 A curve C - Icu 15 kAAssociated circuit breaker NG125N 50 A curve C - Icu 25 kAAssociated circuit breaker NG125H 100 A curve C - Icu 36 kAAssociated circuit breaker NG125L 100 A curve C - Icu 50 kAAssociated fuse gG 80 A - Icu 50 kA   [Isccr] short-circuit current rating 50 kA25 kA   signalling circuit voltage 0.25 A/250 V AC 50/60 Hz   mounting mode Clip-on   mounting support DIN rail   9 mm pitches 8   height 85 mm   width 72 mm   depth 69 mm   net weight 0.492 kg   colour White (RAL 9003)   response time <= 25 ns   [Ipe] Ground residual current 0.003 mA0.6 mA   connections - terminals Tunnel type terminal (downside) 2.5…35 mm²Tunnel type terminal (upside) 2.5…35 mm²   tightening torque 2.5 N.m
