ACTI9 - IACTs -Contactor Auxiliaries & interface

Description

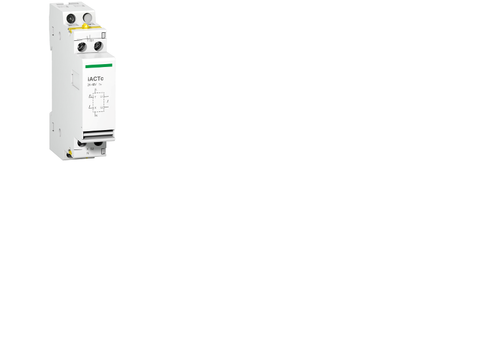

Main - A9C18308 range Acti 9   product or component type Double control input auxiliary   device short name IACTc   [Uc] control circuit voltage 230...240 V AC 50/60 Hz impulse 250 ms230...240 V AC 50/60 Hz maintained   [Us] rated supply voltage 220...240 V AC at 50/60 Hz   Complementary maximum output current 0.2 A holding2 A inrush   hold-in power consumption in VA 3 VA   mounting mode Fixed, on the left of CT   mounting support DIN rail   9 mm pitches 2   height 81 mm   width 18 mm   depth 60 mm   colour White   overvoltage category III   [Uimp] rated impulse withstand voltage 4 kV   [Ui] rated insulation voltage 440 V   standards IEC/EN 61095   connections - terminals Control circuit: tunnel type terminals 2 cable(s) 2.5 mm² flexibleControl circuit: tunnel type terminals 2 cable(s) 1.5 mm² rigidControl circuit: tunnel type terminals 1 cable(s) 1.5…2.5 mm² rigidControl circuit: tunnel type terminals 1 cable(s) 1.5…2.5 mm² flexible with ferruleControl circuit: yellow clips   wire stripping length 9 mm   tightening torque 0.8 N.m   range compatibility Acti9 iCT   market segment Small commercialResidential   compatibility code IACTc Main - A9C18309 range Acti 9   product or component type Double control input auxiliary   device short name IACTc   [Uc] control circuit voltage 24...48 V AC 50/60 Hz impulse 250 ms24...48 V AC 50/60 Hz maintained   [Us] rated supply voltage 24...48 V AC at 50/60 Hz   Complementary maximum output current 0.2 A holding2 A inrush   hold-in power consumption in VA 3 VA   mounting mode Fixed, on the left of CT   mounting support DIN rail   9 mm pitches 2   height 81 mm   width 18 mm   depth 60 mm   colour White   overvoltage category III   [Uimp] rated impulse withstand voltage 4 kV   [Ui] rated insulation voltage 440 V   standards IEC/EN 61095   connections - terminals Control circuit: tunnel type terminals 2 cable(s) 2.5 mm² flexibleControl circuit: tunnel type terminals 2 cable(s) 1.5 mm² rigidControl circuit: tunnel type terminals 1 cable(s) 1.5…2.5 mm² rigidControl circuit: tunnel type terminals 1 cable(s) 1.5…2.5 mm² flexible with ferruleControl circuit: yellow clips   wire stripping length 9 mm   tightening torque 0.8 N.m   range compatibility Acti9 iCT   market segment Small commercialResidential   compatibility code IACTc Main - A9C15914 range of product ICT   range Acti 9   device short name IACTs   product or component type Remote indication auxiliary   signal contacts composition 1 NO + 1 NC   Complementary signalling circuit voltage 24 V AC/DC: 10 mA230 V AC: 50/60 Hz 5 A230 V AC: 50/60 Hz 2 A130 V DC: 1 A   [Uc] control circuit voltage 24...240 V AC 50/60 Hz24...130 V DC   range compatibility Acti 9 iCT   [Ui] rated insulation voltage 440 V   [Uimp] rated impulse withstand voltage 4 kV   mounting mode Fixed, on the right of CT   mounting support 35 mm symmetrical DIN rail   9 mm pitches 1   height 81 mm   width 9 mm   depth 68 mm   colour White   auxiliary connection terminal Tunnel type terminals2 cable(s) flexible 2.5 mm²Tunnel type terminals2 cable(s) rigid 1.5 mm²Tunnel type terminals1 cable(s) rigid 1.5…2.5 mm²Tunnel type terminals1 cable(s) flexible 1.5…2.5 mm²   wire stripping length 9 mm   tightening torque 0.8 N.m   product compatibility ICT   market segment Small commercialResidential   compatibility code IACTs
